P68 Pellet Stove
Your new Harman Stove viewing door gasket has
been factory set, however over a period of time some
minor adjustment may be necessary. The easiest way
to check the adjustment of the door gasket is to take
a small piece of paper or a dollar bill (when the stove
is not burning) and open the door, place the paper
between the face of stove body and the gasket at the
top center of the door, close the door. You should have
a slight amount of resistance when you try to pull the
paper out. Repeat this process on the bottom center
of the door. If the paper is loose then some adjustment
is necessary.
To adjust the door, the stove must be turned off and
cold. Open the door, loosen the 2 bolts shown (see
Fig. 37) and bump the latch adjuster (Fig. 38) toward
the back of stove, snug bolts and test for proper seal
as described above. Once the proper seal is attained,
openthedoorandnishtighteningthebolts.Ifproper
adjustment cannot be accomplished, then a new
gasket should be installed.
Over a period of time the gasket will wear out and
a new gasket will have to be installed. To install a new
gasket you must remove the old gasket. After the
gasket is removed the gasket channel should be free
of all loose particles. The gasket cement used to hold
the gasket in place is RTV (HIGH TEMPERATURE)
silicone. Put a bead of RTV silicone in the bottom of
the gasket channel, then install the new gasket and
close the door. Allow to dry for several hours before
lighting the stove. After the RTV silicone has cured, the
door will have to be adjusted for proper sealing. If you
have just replaced the door gasket, the latch adjuster
must be pulled towards the front of the stove. Follow
the procedure mentioned above.
Door Hinge Retainers:
Some stoves have experienced the door pins working
up and out of the load door hinges during normal
opening and closing of the door. To stop this from
occurring, there are two 3/8” retainer clips that are in
the hardware pack sent with the stove. They are to be
installed onto the load door hinge pins after the trim
has been installed and the door is mounted onto the
stove body and ready for use.
To remove the load door for any service or to change
the trim, the retainer clips must be removed and may
be damaged. Replacements can be ordered through
your Harman Dealer (Part #3-31-94807031) or a 3/8”
retainer clip may be purchased at your local hardware
store.
P68 Maintenance - Gasket Adjustment

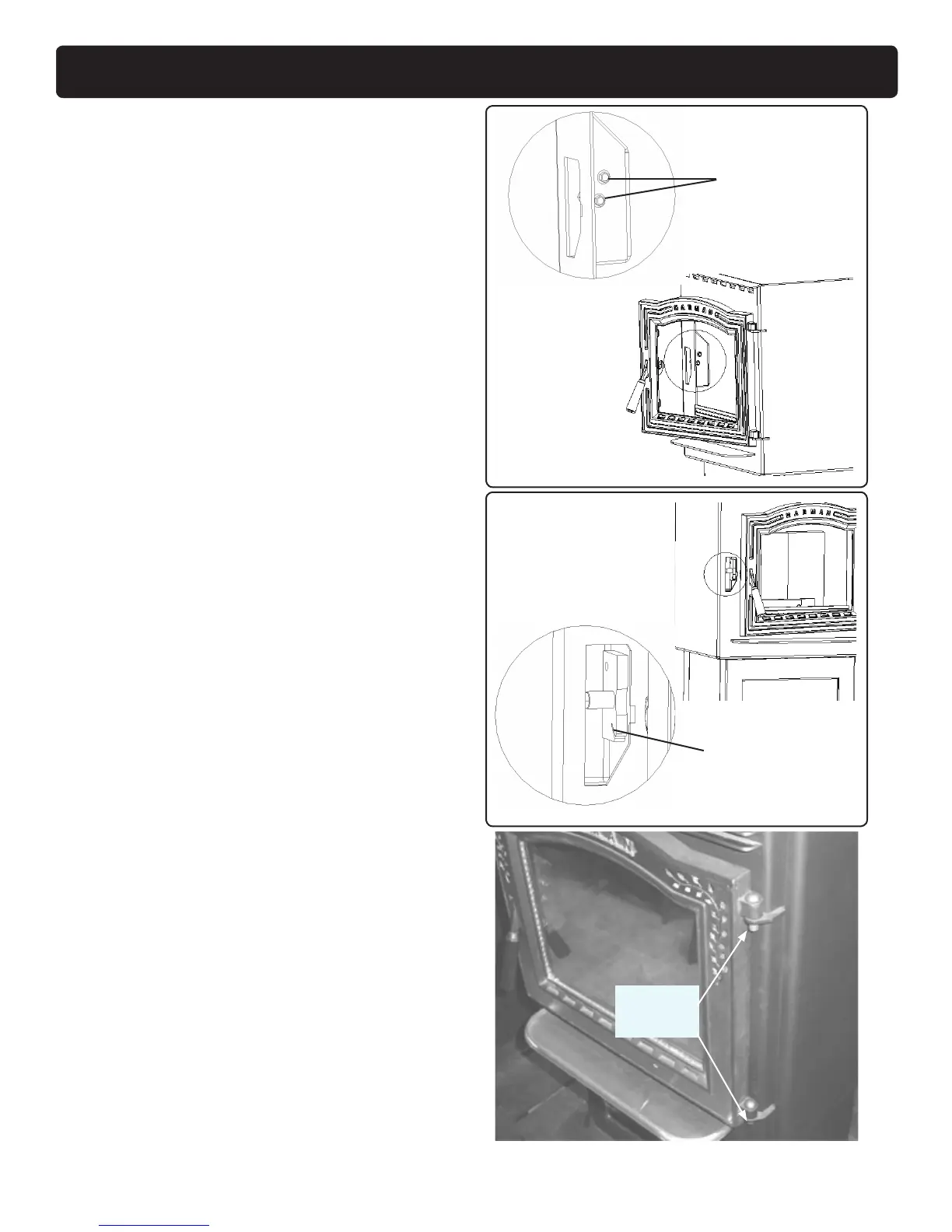

Fig. 37
Latch Adjuster
Bolts
Fig. 38
The 3/8" retainer
clips will go on
each hinge pin,
below the hinge.
