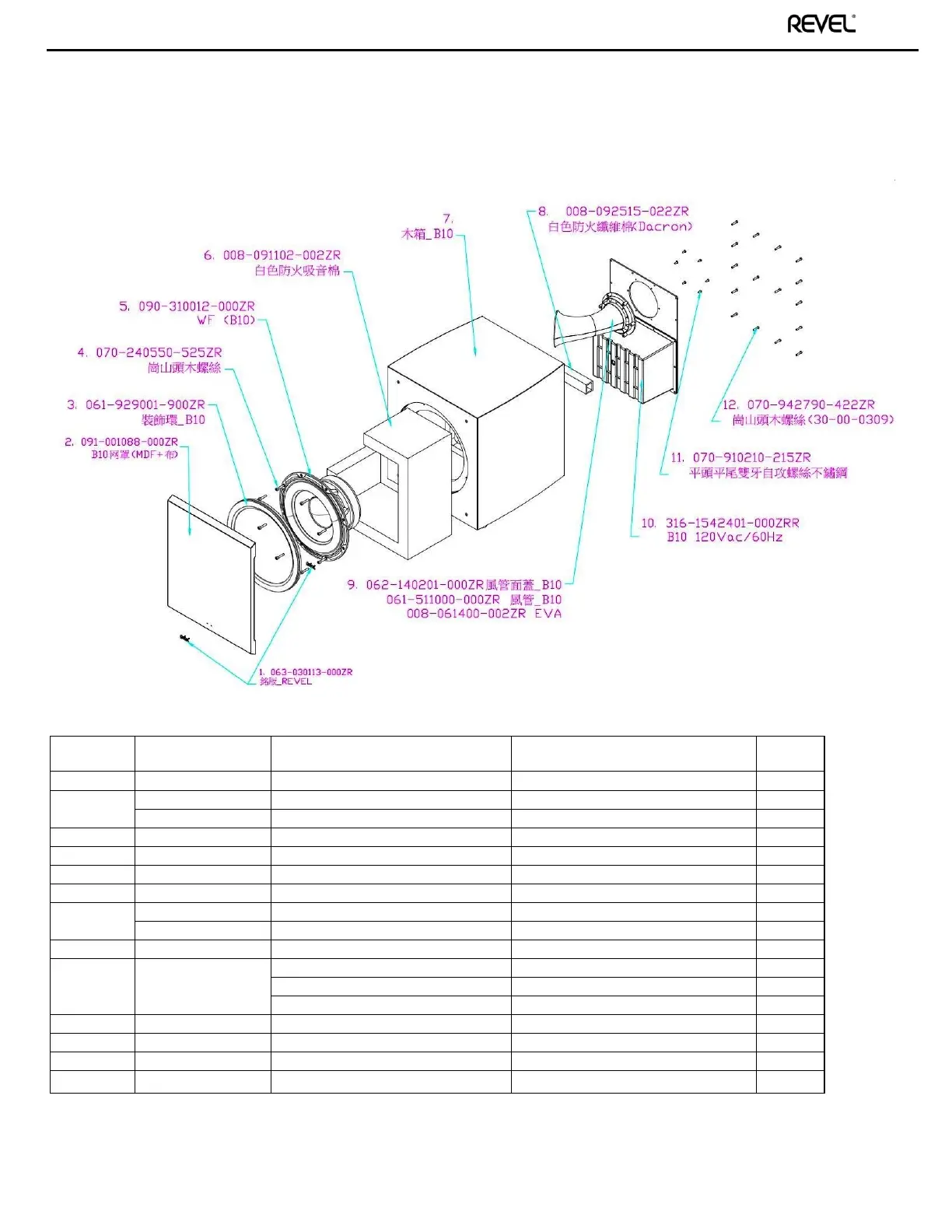

Harman REVEL CONCERTA B10 - Page 13

SUB B10 Service Manual
13 OF 32
ITEM
Model/color
Part number
Description
qty
1
063-03113-000ZR
REVEL Logo
2
2
B10BK
091-001088-000ZR
Grille, Black
1
B10WH
Grille, White
1
3
061-929001-900ZR
Trim ring
1
4
070-240550-525ZR
Screws, woofer mouning
8
5
090-310012-000ZR
Woofer, 10in
2
6
008-091102-002ZR
Dacron
A/R
7
B10BK
Cabinet, Black
1
B10WH
Cabinet, White
1
8
008-092515-22ZR
Dacron
A/R
9
062-140201-000ZR
Port
1
061-511000-000ZR
Port
1
008-061400-002ZR
EVA foam
1
10
316-154401-0000ZRR
Amplifier, 100VAC/60Hz
1
11
070-010210-215ZR
Screws, port mounting
6
12
070-942790-422ZR
Screws, amplifier mounting
16
