InstallatIon and operatIon Manual for WInd and sun screen sl400
09/12 | 6

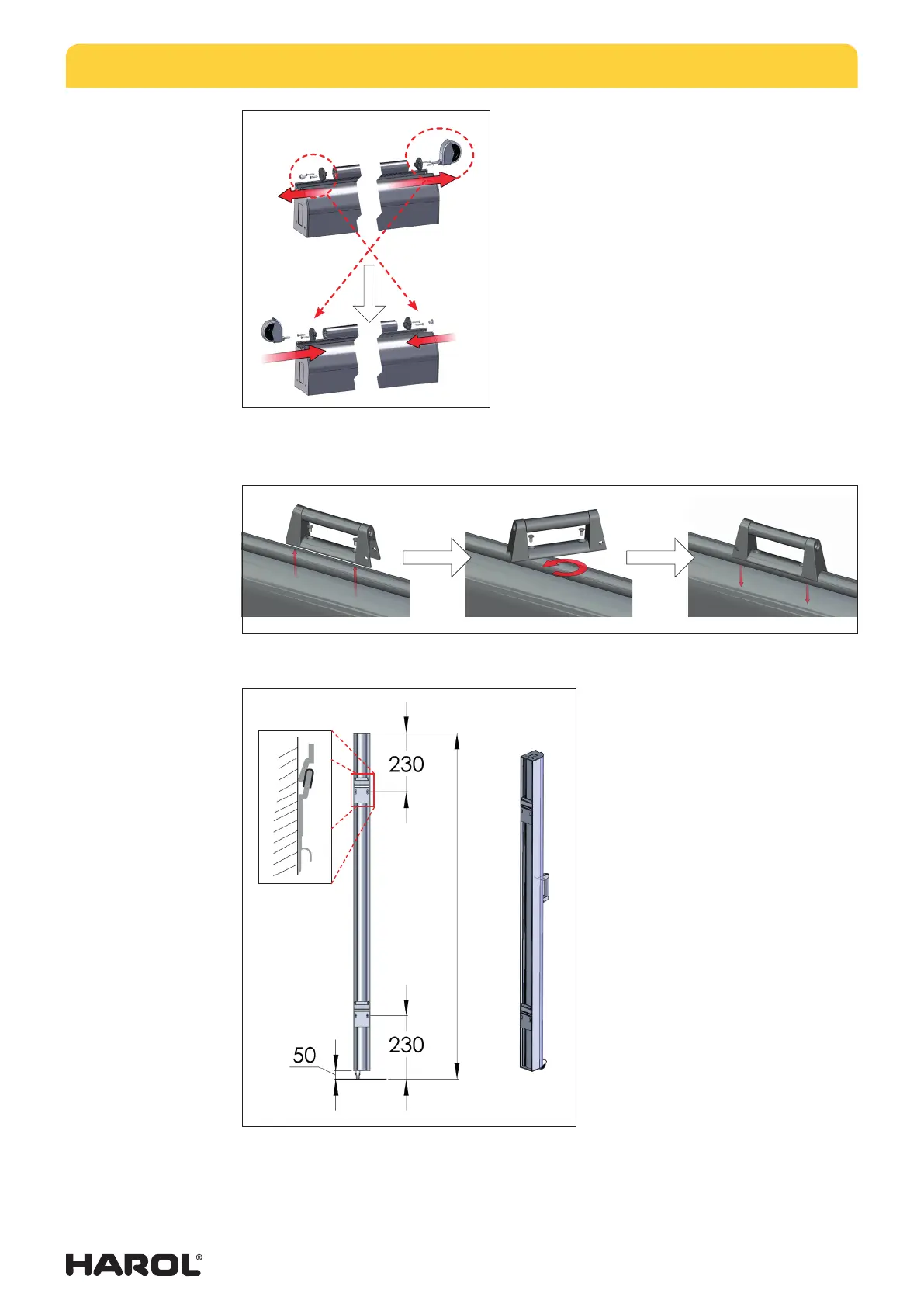

2. Detach the wheel from the pull rod; this is done
by unscrewing the pin with an SW12 spanner.
Unscrew the cover on the other side of the pull rod
with an SW5 Allen key. Switch around the wheel
and cover and tighten the screws again.
3. Loosen the handgrip by unscrewing two flush mount screws with an SW4 Allen
key, rotate the handgrip 180° and refasten it at the correct height. This height is
determined by the support pin or supporting system.
4.5. Mounting height of the wall brackets
The height of the mounting brackets
on the wall must match the distance
between the brackets on the box
of the SL400. The housing of the
wind and sun screen must be placed
vertically at 50 mm above the
ground, to accommodate the wheel
at the bottom of the pull rod.
The choice of fastening materials
for the attachment of the brackets
depends greatly on the mounting
surface. For walls made of cellular
concrete blocks or soft/hollow bricks
it is necessary to use appropriate
fastening materials such as expansion
bolts, chemical anchors etc. The
installer is responsible for selecting
the best method. Harol accepts no
responsibility for fasteners that do
not hold securely.
HEIGHT
