READ
ASSEMBLE
STAIRCASE BUNK

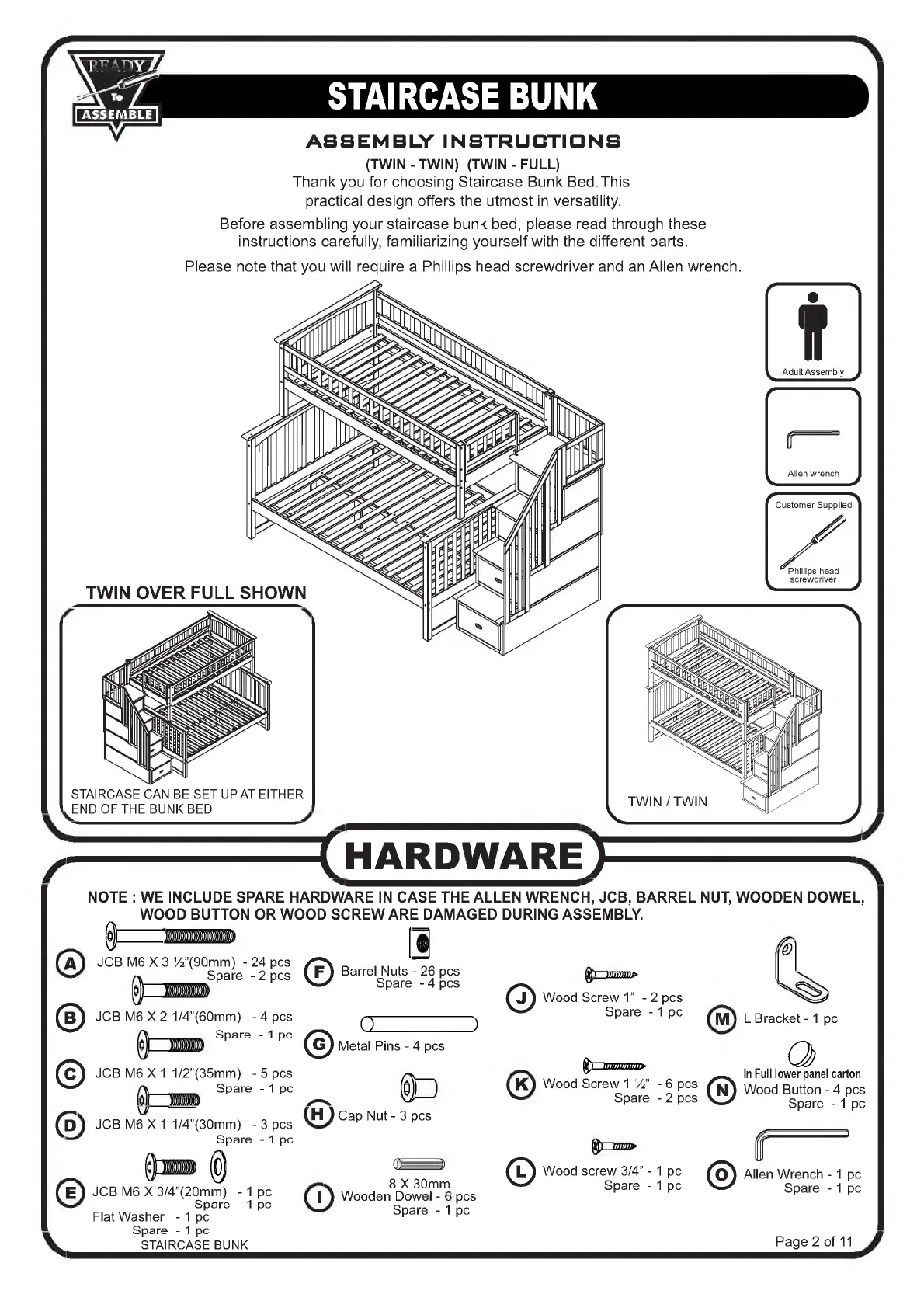

ASSEMBLY INSTRUCTIONS
(TWIN - TWIN) (TWIN - FULL)
Thank you for choosing Staircase Bunk Bed.This
practical design offers the utmost in versatility.
Before assembling your staircase bunk bed, please read through these
instructions carefully, familiarizing yourself with the different parts.
Please note that you will require a Phillips head screwdriver and an Allen wrench.
TWIN OVER FULL SHOWN
STAIRCASE CAN BE SET UP AT EITHER
END OF THE BUNK BED
{ hardware)
NOTE : WE INCLUDE SPARE HARDWARE IN CASE THE ALLEN WRENCH, JCB, BARREL NUT, WOODEN DOWEL,
WOOD BUTTON OR WOOD SCREW ARE DAMAGED DURING ASSEMBLY.
®
©
9
JCB M6 X 3 / ”(90mm) - 24 pcs
Spare - 2 pcs
©
Barrel Nuts - 26 pcs
Spare - 4 pcs
JCB M6 X 2 1/4’’(60mm) - 4 pcs
Spare - 1 pc
©
Œ
J
Metal Pins - 4 pcs
JCB M6 X 1 1/2’’(35mm) - 5 pcs
Spare - 1 pc
ion — r v ^
( 5 JCB M6 X 1 1/4’’(30mm) - 3 pcs H Cap Nut - 3 pcs
Spare - 1 pc
íi¡iiü¡i¡i&
©
Wood Screw 1” - 2 pcs
Spare - 1 pc
ffir-rnnromnm.
K Wood Screw 1 - 6 pcs
Spare - 2 pcs
(g) (1 ^ ^ )
E JCB M6 X 3/4’ (20mm) - 1 pc | W o o d e n ^ S ™ pcs
Spare - 1 pc Spare - 1 pc
Spare - 1 pc
Flat W asher - 1 pc
Spare - 1 pc
STAIRCASE BUNK
©
Wood screw 3/4” - 1 pc
Spare - 1 pc
®
©
L Bracket - 1 pc
a
In Full lower panel carton
Wood Button - 4 pcs
Spare - 1 pc
Allen Wrench - 1 pc
Spare - 1 pc
Page 2 of 11
