Harriet Bee HBEE3908 - Page 5

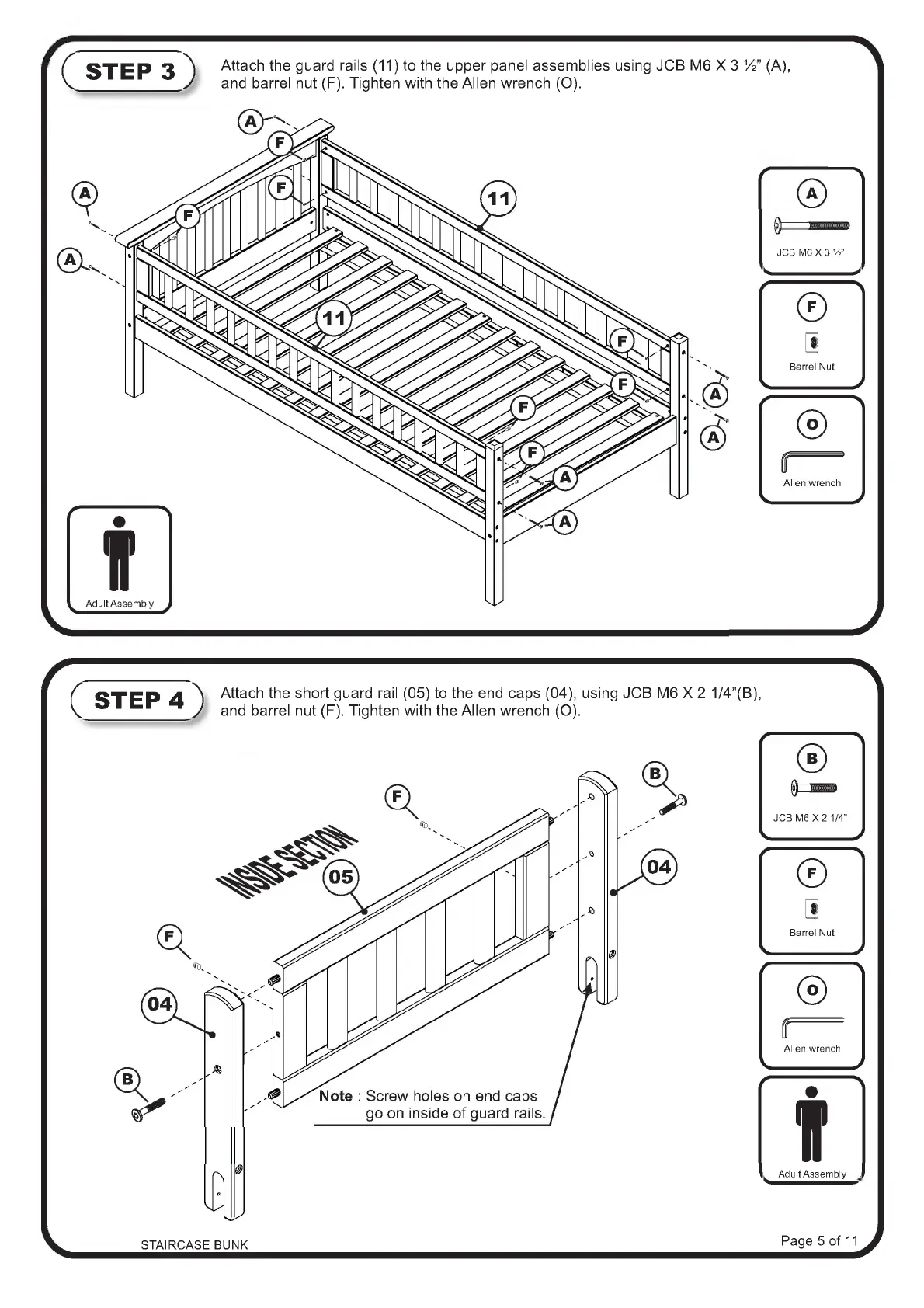

( STEP 3 )
Attach the puard rails (11) to the upper panel assemblies usinp JOB M6 X 3 % (A),
and barrel nut (F). Tighten with the Allen wrench (O).
A
JCB M6 X 3 '/Z
s ___________ *
( STEP 4 )
Attach the short guard rail (05) to the end caps (04), using JCB M6 X 2 1/4”(B),
and barrel nut (F). Tighten with the Allen wrench (O).
STAIRCASE BUNK
/ --------------- \
®
f
Allen wrench
V _________ /
^Adul^ssem bl^.
Page 5 of 11
