Harris TS22A - Cords

TS22 Series Test Sets 9
Note: If the test set fails to
operate properly at any time, first
replace the battery and retest
before sending the test set in for
repair.
Replace the 9V battery with a similar battery. See Replacing the Monitor
Speaker Battery
for instructions on changing the battery.
If further assistance is required, please contact Professional Services at
1-800-437-2266.
Cords
Following is a description of the various available line cords for the TS22
Series Test Sets. The line cord on the TS22 Series Test Sets is replaceable;
however, if the replacement cord is not installed properly, the warranty will
be void. For information on availability of line cords, contact your Harris
authorized distributor.
Note: When using the Ground
Start Cord with the Data Lockout
series of test sets, the red lead
must be connected to the Tip side
of the line in order to start the
line properly. Some noise ground
start lines will cause the test set to
falsely indicate data detection.
Standard Cord with
Piercing Pin (STD)
This cord consists of one red and one black conductor, each approximately five
feet long. Each conductor is fitted with an alligator clip offset 20° to minimize
clip shorting. The clips have insulation piercing spikes and a neoprene boot.
Cord Number: P3218-028 (see Figure 6).

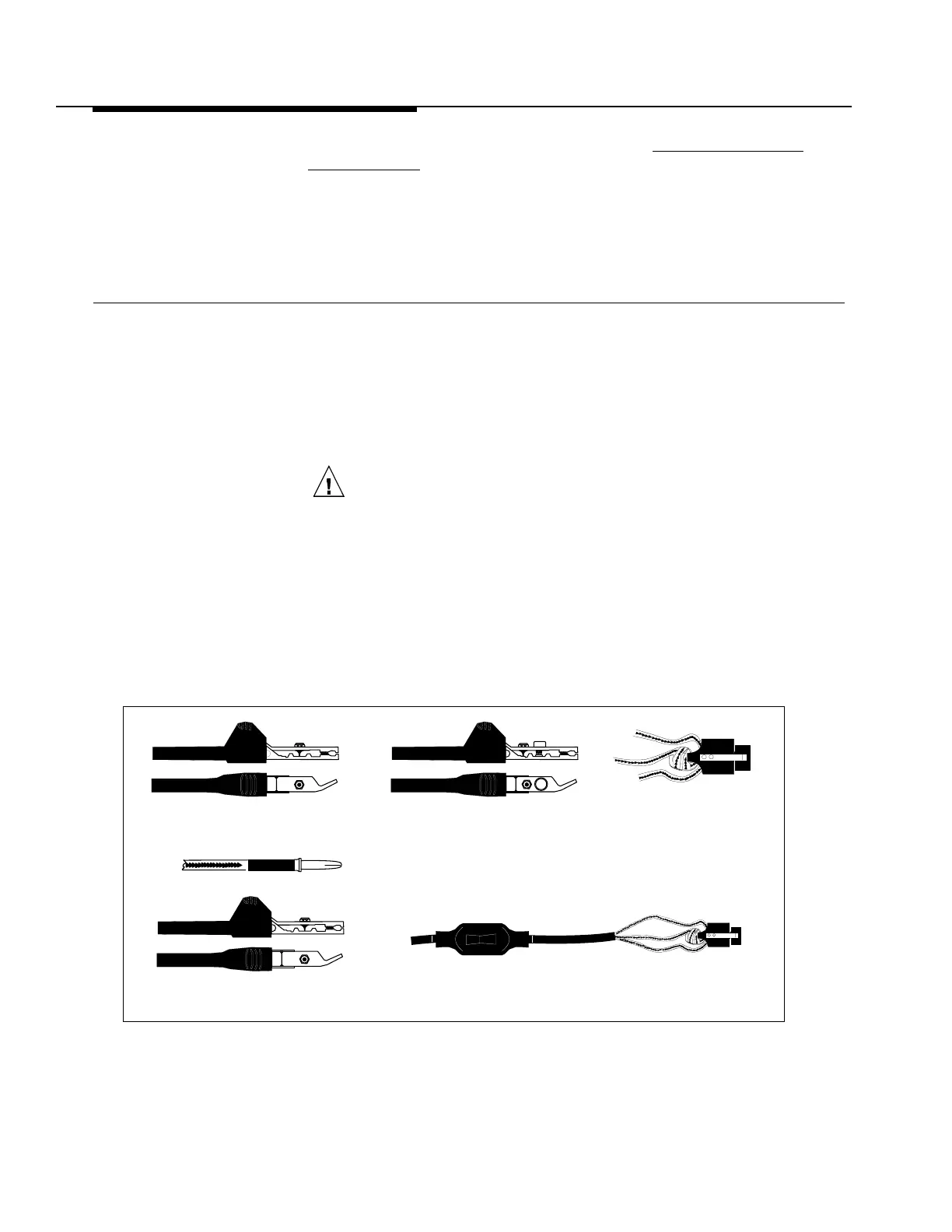

Figure 6. Cords
WARNING:
Grounding either side of a high speed data line will cause disruption of
service on that data line.
OFF
ON
GROUND START CORD (Third Wire)
P3218-204
CO 346A PLUG AND RESISTOR CORD (SPR)
P3218-233
CO 346A PLUG CORD (SP)
P3218-232
ANGLED BED OF NAILS CORD (ABN)
P3218-234
PIERCING PIN CORD (STD)
P3218-028
ts22al_008
