3 – English

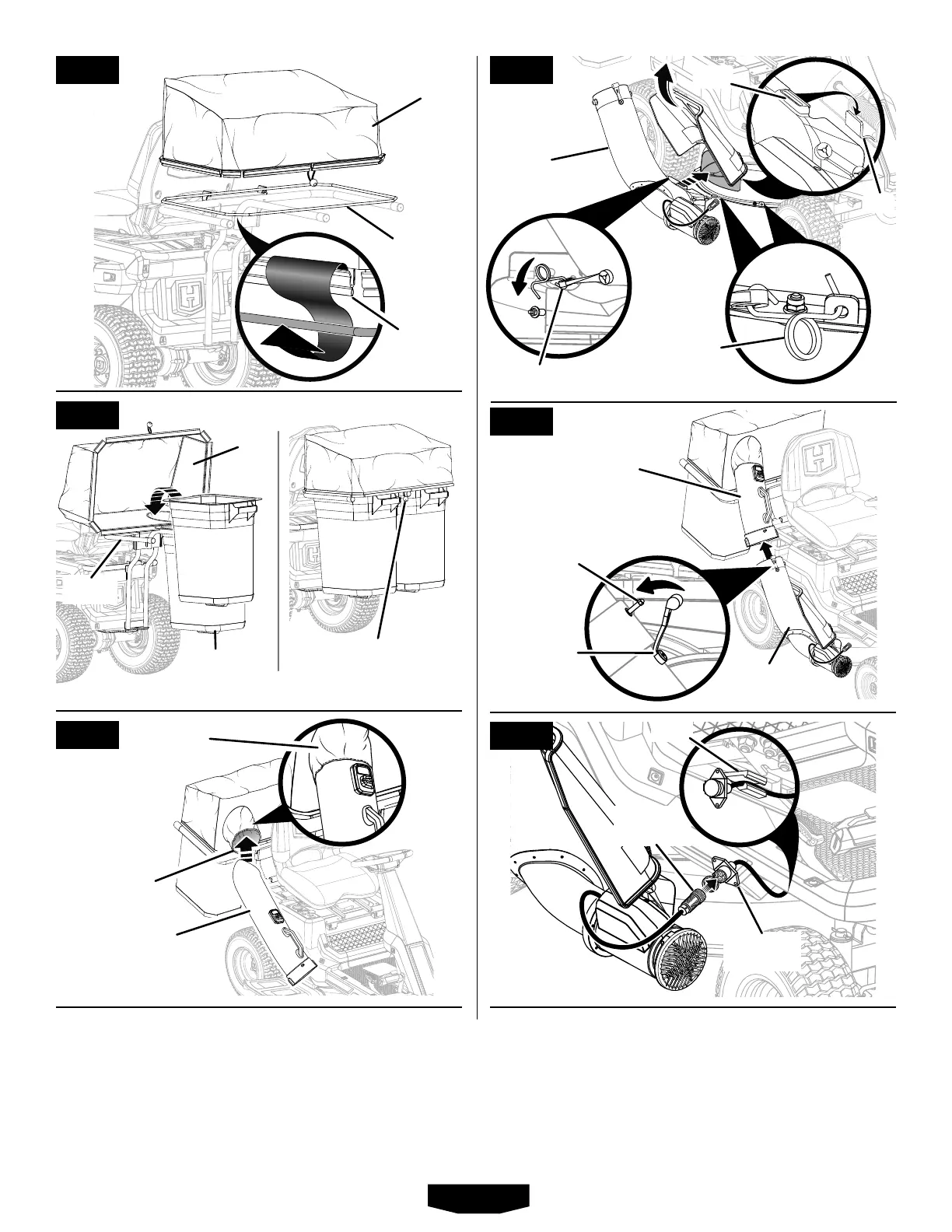

FIG. 6
FRAME
RAIL
COVER
COVER
BAGS
HOLE
SLEEVE
UPPER
TUBE
LOWER
TUBE
TAB
SLOT
LATCH
LATCH
LOWER
TUBE
UPPER
TUBE
CLIP
QUICK
CONNECTOR
BOOST
CONNECTOR
TAB
FRAME
Install the upper end of the top bagger tube (side with
bag full indicator) into the hole in the back of the grass
catcher cover.
Install bottom bagger tube to side discharge outlet by
placing opening over tab on mower deck frame, then
hooking the fasteners to the frame as shown.
Pull the top tube back out of the cover just far enough to
connect the two tubes together, lining up hole in bottom
tube latch with tab on upper tube. Push bottom tube latch
over top tube tab to secure.
Make sure inlet sleeve is pulled out and upper tube is
completely inserted inside the bagger top.
Retrieve the boost connector wire from the underside of
the frame, open the cap, and connect to the wire on the
lower tube.
Place the excess loose wire back into the clip to secure.
FIG. 8
FIG. 7
FIG. 11
FIG. 10
FIG. 9
ELASTIC
CORD
CLIP
LATCH
