Han
®
GigaBit
2
Han
®
S
Number of contacts 1
Rated current 200 A
Rated voltage 1500 V
Rated impulse voltage 8 kV
Pollution degree 2
Insulation resistance > 10
8
Ω
Contact resistance ≤ 0.3 mΩ
Limiting temperatures -40 ... +125 °C
Number of mating cycles ≥ 500
Degree of protection acc. to IEC / EN 60529
- mated condition
- un mated condition
Finger-safe male & female contacts
IP40
IP20 (1500 V DC; 1000 V AC)
Coding system Mechanical & colour
Locking system Single lever (with visible status)
Vibration and shock resistance IEC 61373, category 1, class B
Cable entry Angled, available rotation through 360°
Cable gland
- maximum cable diameter
- recommended tightening torque
Wrench size 23 (A/F 23)
16 mm
2.5 N m
Contact termination (hood)
- cable stripping length
- suitable tools / crimp-dies
Crimp (conductor cross-section 25 … 50 mm²)
22 mm
refer to the Industrial Connectors Han
®
catalogue, chapter 90.11
Contact termination (housing)
- recommended tightening torque
M8 bolt / busbar contact
11 N m (for bulkhead mounted housings, the use of a counter
wrench is mandatory if applying more than 11 N m)
Fixing screws (housing)
- recommended tightening torque
M3, 6 mm long, flat headed (ISO 7380-2)
0.5 - 0.8 N m
Material (hood, housing) Polyamide (PA)
Colour (hood, housing) RAL 9005 (jet black), RAL 3001 (signal red)
Material (contacts) Copper alloy
Material (accessories) Thermoplastic elastomers (TPE)
Material flammability class acc. to UL 94 V-0

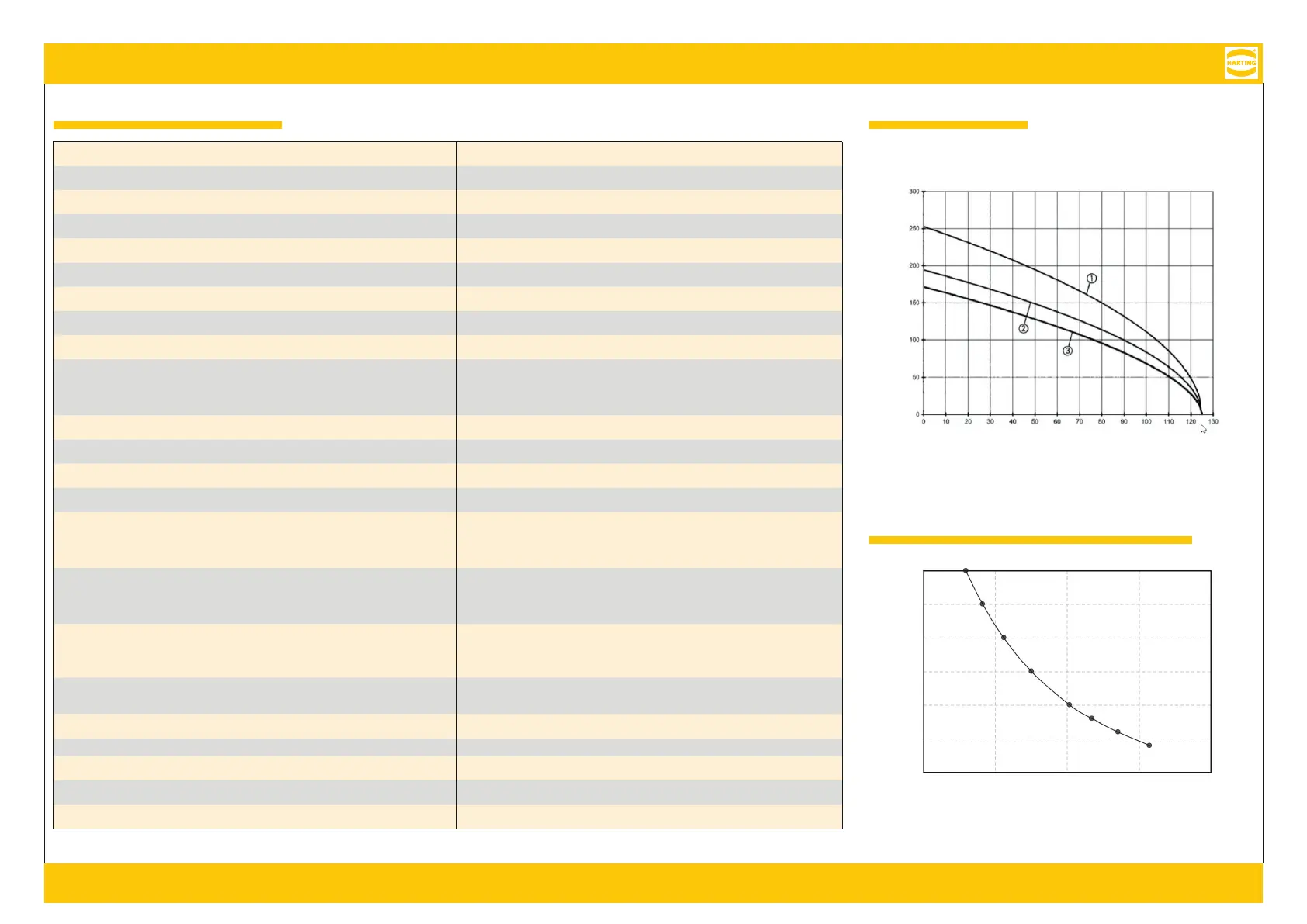

Technical characteristics Derating diagram
Short-time current carrying capacity
① Han
®
S 50 mm²
① Han
®
S 35 mm²
① Han
®
S 25 mm²
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0.1 1.0 10.0 100.0 1000.0
Current [kA]
Time [t]
Operating Current [A]
Ambient temperature [°C]
