EN
7
A Rain cap
B Upper end
C Steel Chimney extension 1 m
D Clamp
E Rain flange (rubber)
F Minimum distance 100 mm
G Lead-through protector
H
Lead-through insulation ZSH-200 or 100 mm
fire resistance rated mineral wool (pack the
wool so that it supports the chimney)
I Lead-through flange
J Steel Chimney 1,5 m
K
Smoke pipe 1 m, stainless steel (cut to the
appropriate lenght) (katkaistaan sopivan
mittaiseksi)
NOTE! For more detailed
installation instructions,
see the Instructions for
installation of Harvia
modular smoke pipes

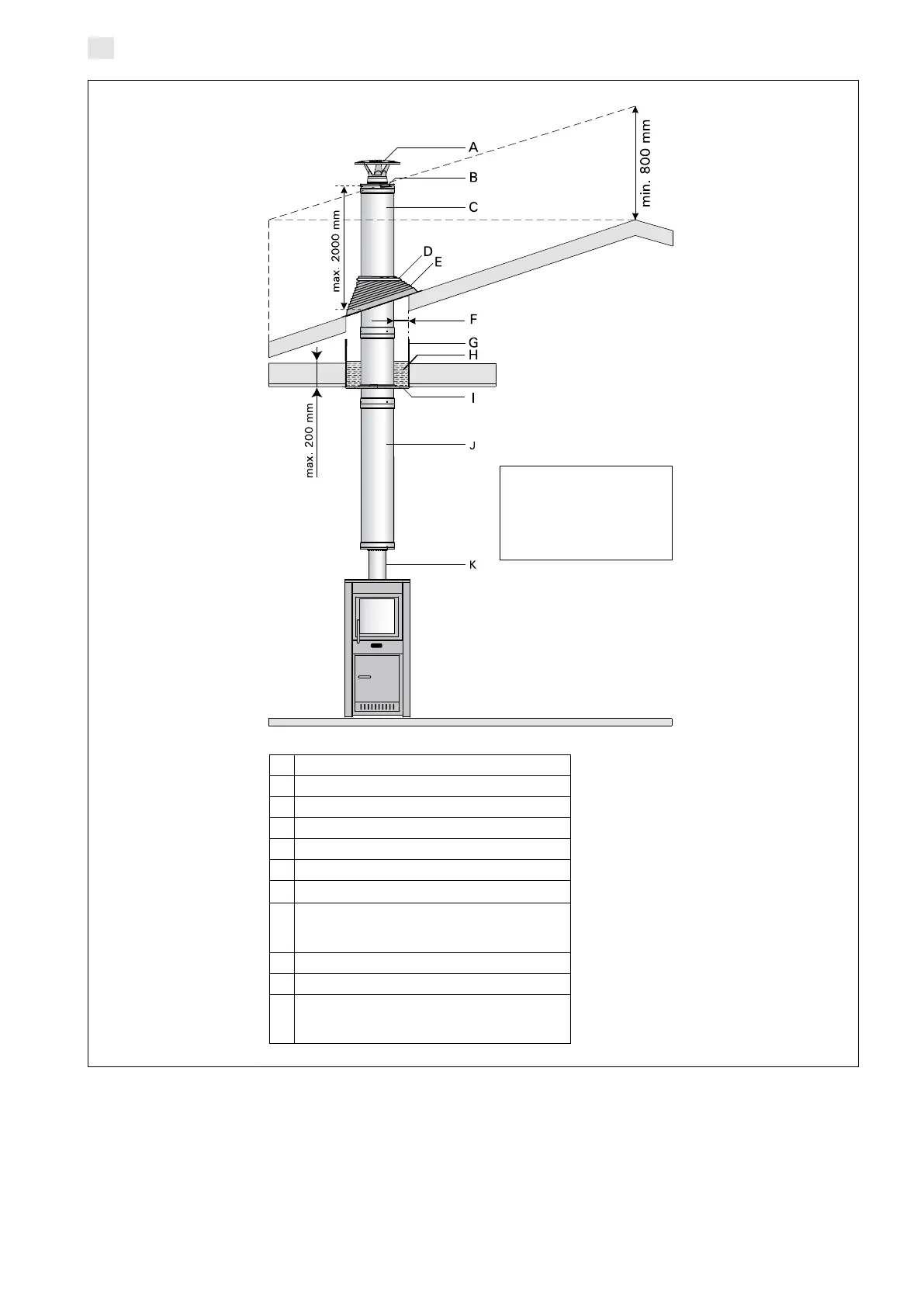

Figure 3. Example installation of a modular smoke pipe
