Harvia M3 Installation

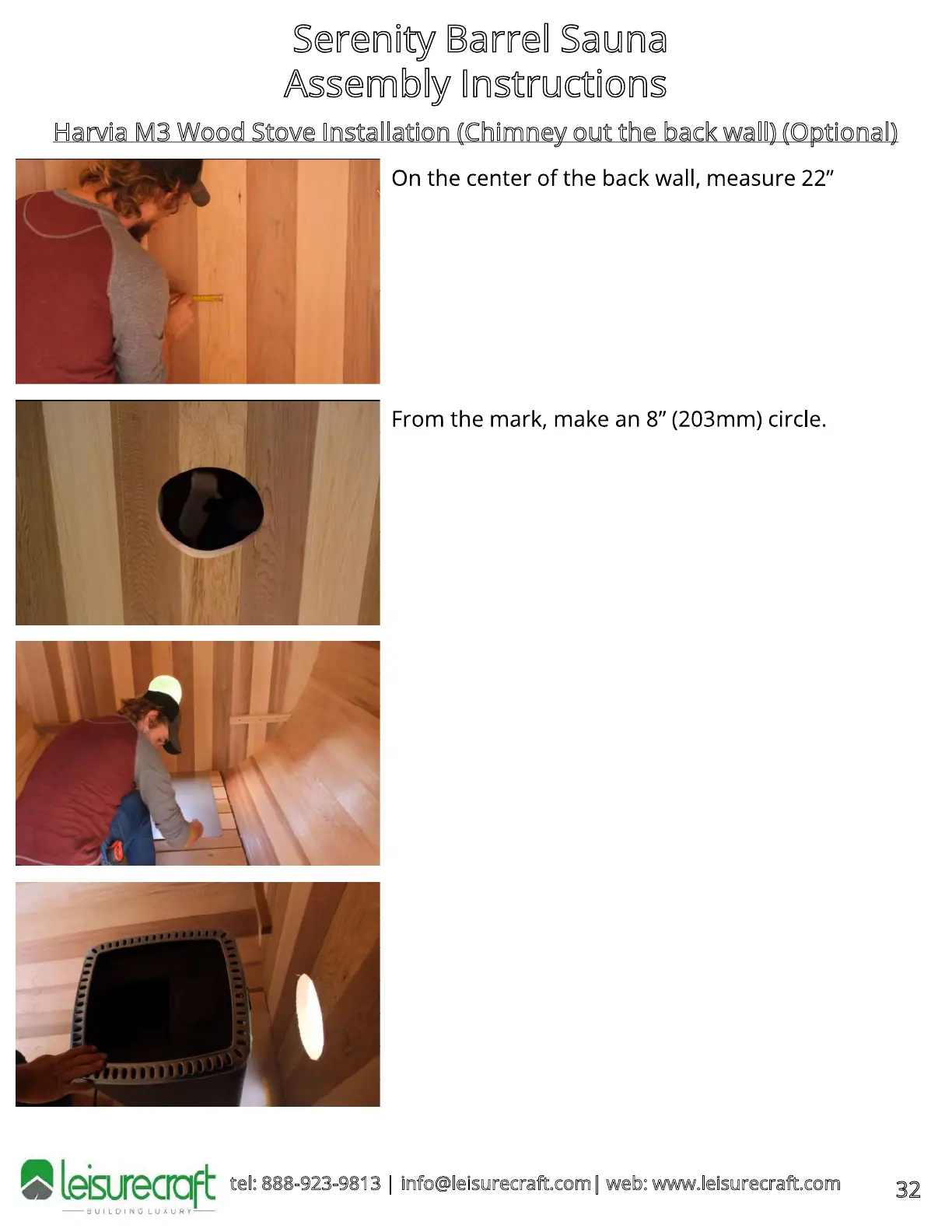

Harvia M3 Wood Stove Installation (Chimney out the back wall) (Optional)
(56mm)
from the floor up.
This will be the center of your hole for the chimney to
go out.
Cut out the circle with a jigsaw.
Serenity Barrel Sauna
Assembly Instructions
tel: 888-923-9813 | info@leisurecraft.com| web: www.leisurecraft.com
Manufactured by:
Install floor heat shield against back wall centered
between the benches.
Bring in stove and place it on the floor heat shield.
32

Harvia M3 Specifications

General

Output	13 kW
Sauna room size	6-13 m³
Dimensions (W x D x H)	390 x 430 x 710 mm
Weight	45 kg
Flue outlet diameter	115 mm
Firewood length, max	39 cm
Model	M3
Heating capacity	13 kW
Height	710 mm
Width	390 mm
Depth	430 mm
Material	Steel
Color	Black
Type	Wood-burning stove
Sauna size, max (cu ft)	459 cu ft
Weight (lbs)	99 lbs
Sauna size, min (cu ft)	212 cu ft
Dimensions (W x D x H) in inches	15.35 x 16.93 x 27.95
