Air Driven Air Amplifiers, AAD-5 & AAD-5-C • OM-11J
4
FIGURE 2

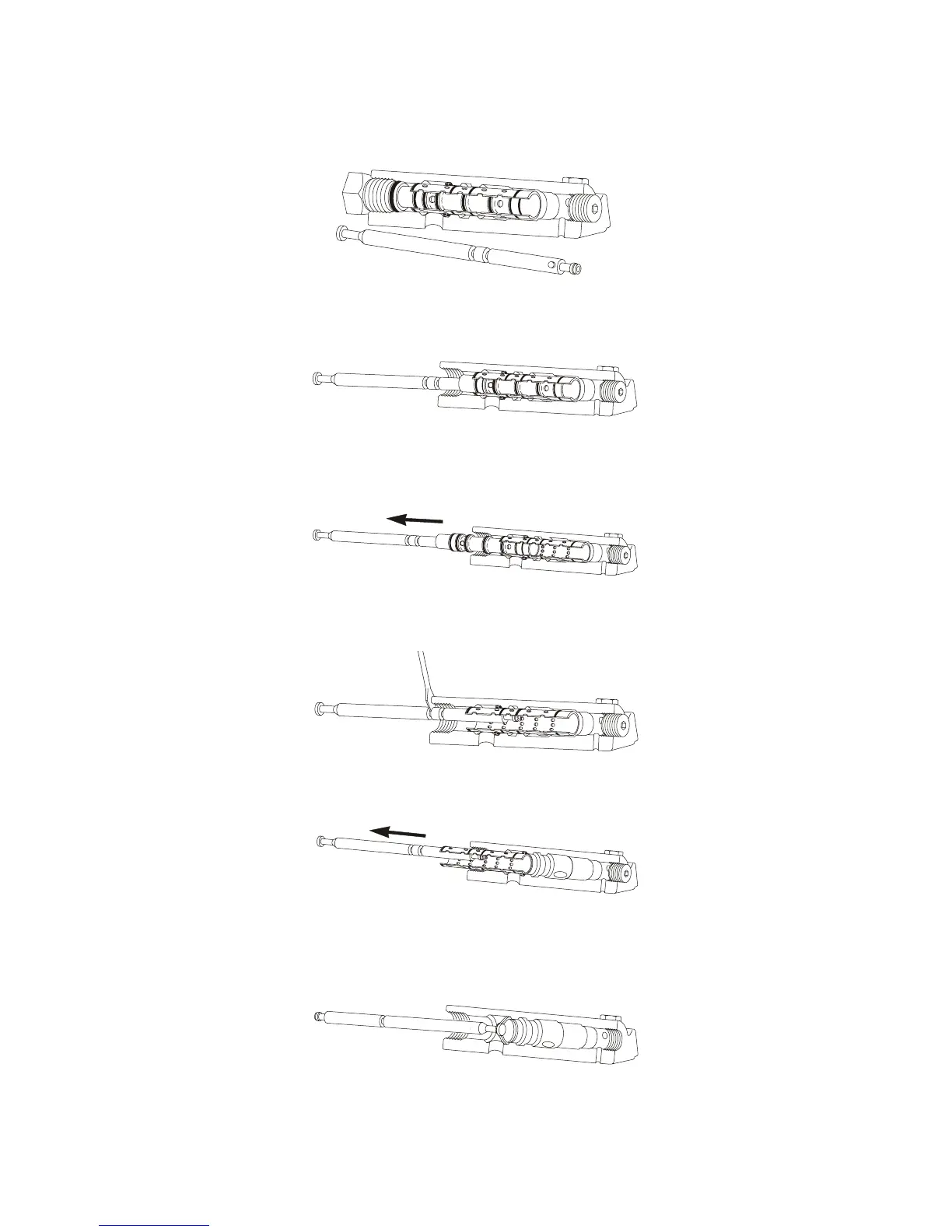

1. 28584 Tool and end cap assembly (cutaway).
2. Insert tool or small hook in first row of holes in spool.
3. Pull straight out. Inspect o-rings. (Do not proceed with steps 4, 5, 6 unless required).
4. Insert tool in second row of holes in sleeve and if necessary, pry out with screwdriver.
5. Pull straight out.
6. Insert bumper hook thru center bumper and pull straight out.
To Next Page
