9
1
2
3
4
5
6
7
8
9
10
16
17
18
19
20
21
22
23
24
11
12
13
14
15

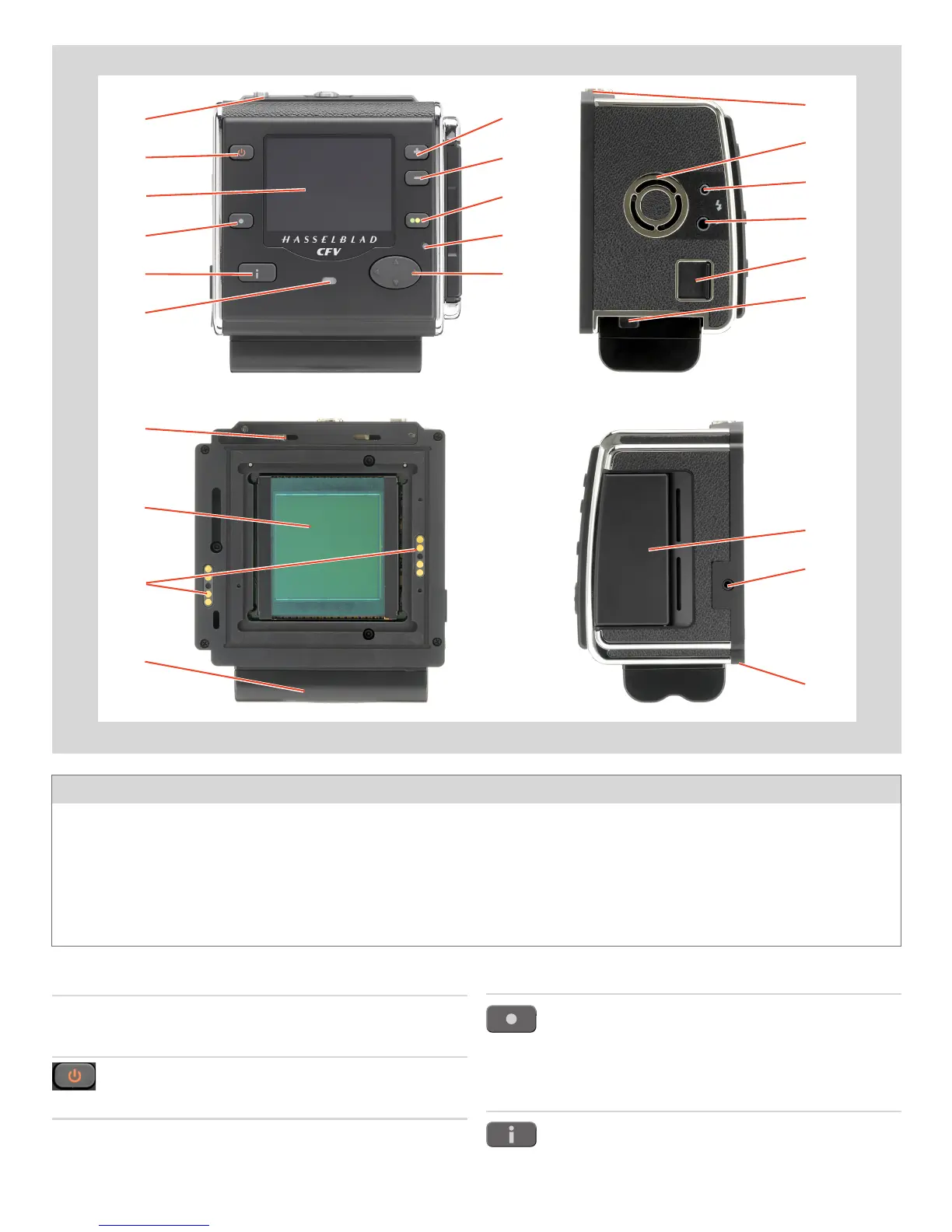

Digital back retaining catch lock 1
Ensures that the digital back is not unintentionally removed.
ON /OFF button 2
Powers the digital back.
OLED preview screen 3
Displays preview images and the menu system even in bright light
and from acute angles.
Menu / (Menu Exit) button 4
Opens and closes the menu system. Also used for vari-
ous other tasks (Exit button, for example) as you issue
commands within the menu system indicated by a label beside
the button on the preview screen.
Display button 5
Steps through the various view modes for the preview
image: standard, histogram overlay, image details, screen
off and full-screen.
Parts, components & control panel buttons
The control panel has an OLED screen that provides a bright, high-
contrast view even in bright surroundings and at fairly acute angles.
The panel is the main graphical interface for image checking and set
-
tings changes when not connected to a computer.
The buttons are used for browsing images and navigating the menu
system. Two of the buttons, located at the bottom-right and -left of
the screen, are given an on-screen label that changes according to the
current context (e.g., the bottom-right button sets the approval rating
when browsing images, but confirms settings when using the menus).
