Brake System
Description
The brakes are multi-disc brakes running in oil and are fitted in the final drive housing between the planetary gear and the
differential. The brakes are mechanically controlled by the brake pedals. The brake pedals can be used latched together for
when transport driving, or individually as steering brakes. The parking brake actuates the service brakes mechanically.
The brakes can be adjusted by means of adjusting nuts which are fitted on the brake rods. Trailer brake valve and trailer air
braking system can be delivered as option.

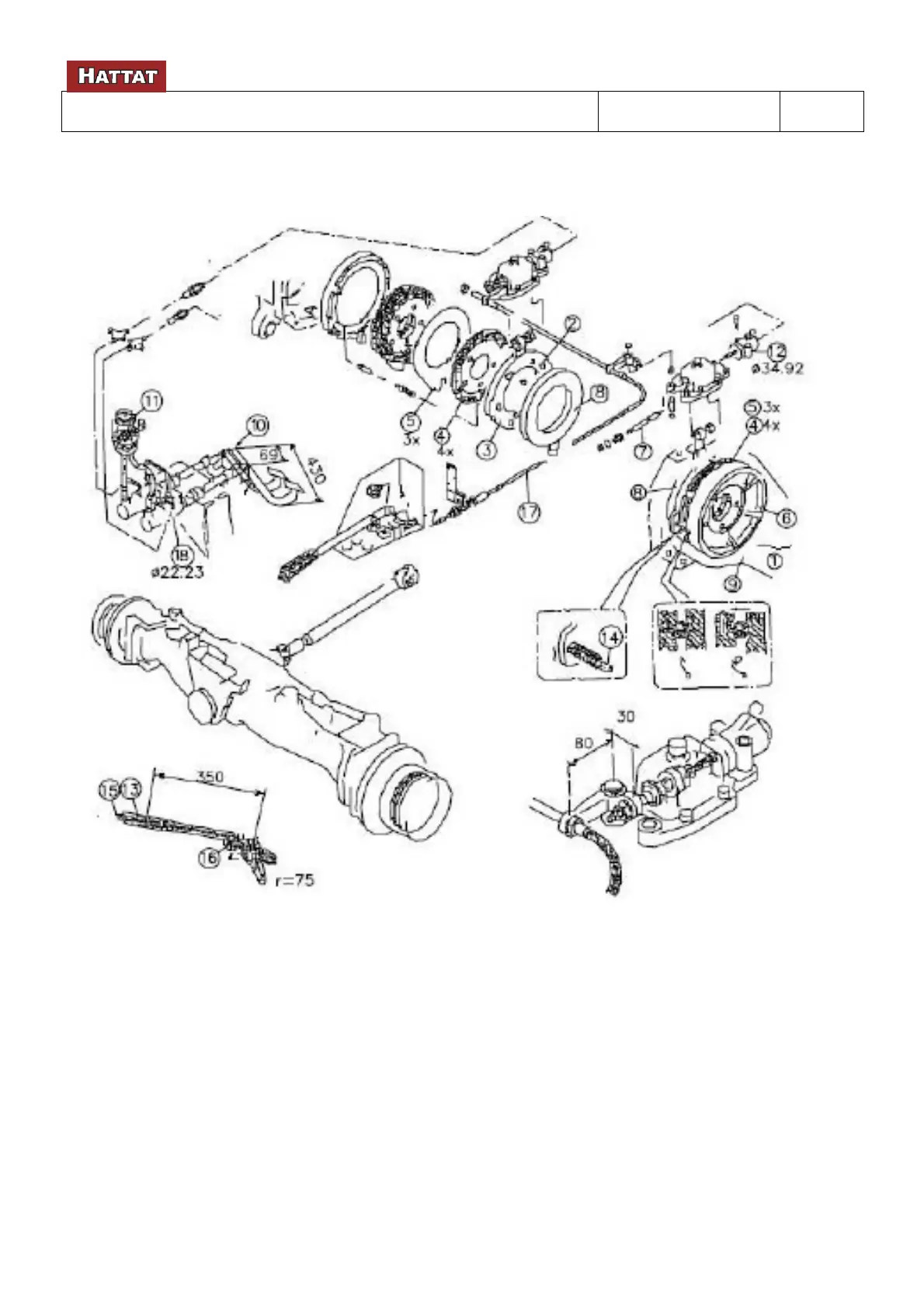

1) Oil for the final drive and wet type brakes
2) Ball (2 x 6 pcs)
3) Brake ring
4) Organic friction plate (2 x 4 pcs)
5) Intermediate disk (2 x 3 pcs)
6) Brake retainer
7) Brake rod
8) Ball ring
9) Final drive housing
10) Pedal (2 pcs)
11) Container
12) Brake cylinder (2 pcs)
13) Parking brake lever
14) Pin + return spring
15) Parking brake release knob
16) Locking plate
17) Parking brake cable
18) Master cylinder (2 pcs)
51. Brake System
Model
A90 – A100 – A110
Page
2
