Maintenance 2L41C, 2M41, 2M41Z
80
HATZ
Operator’s Manual
CAUTION
Dirt particles can damage the injection system.
▪ Maintain clean conditions to ensure dirt does not enter the
fuel line.
Overview
Pos. Designation

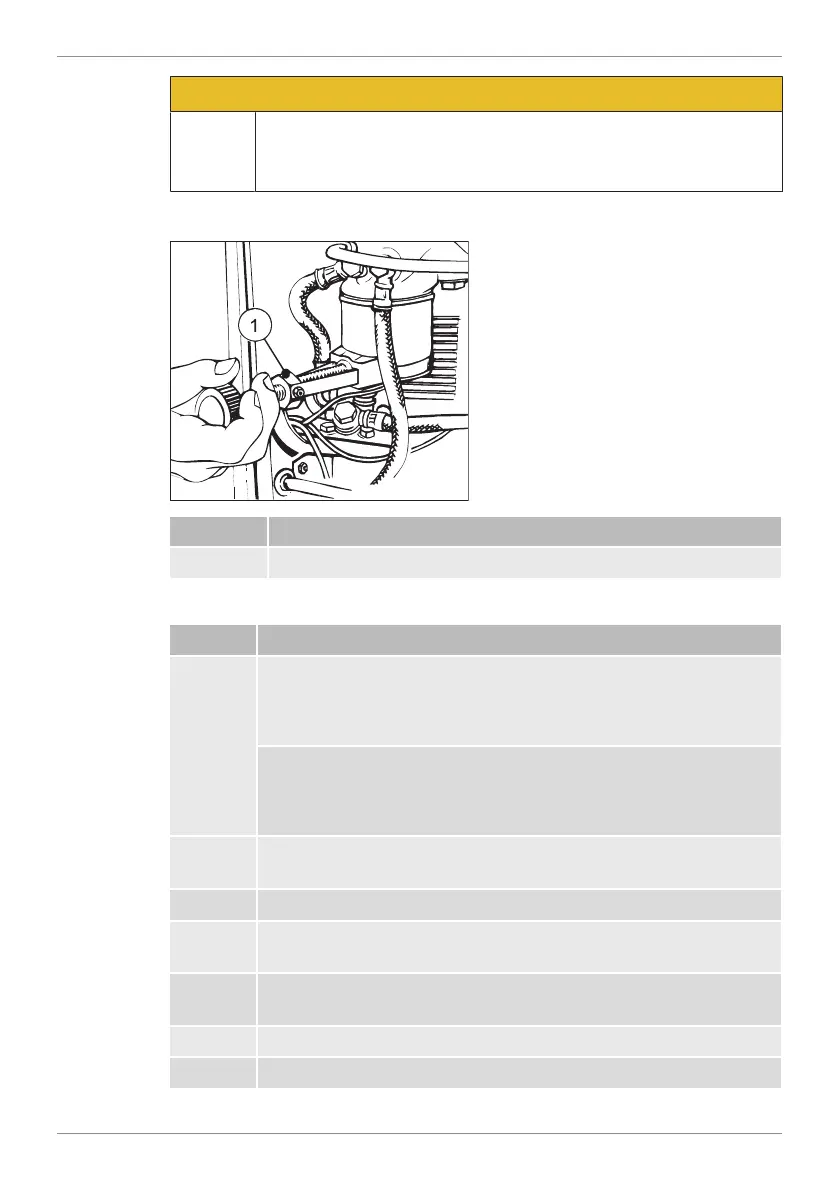

1 Strap wrench (HATZ order no.: 620 307 01)
Procedure
Step Activity
1 On encapsulated engines:
▪ Lift off the capsule hood
(see the chapter 5 Engine design, page 26).
On engines without a capsule:
▪ Remove the side trim panel
(see the chapter 5 Engine design, page 26).
2 Place a suitable container under the filter to collect emerging
fuel.
3 Close the fuel feed line.
4 Slide on the strap wrench (1) and unscrew the fuel filter counter-
clockwise.
5 Dispose of the old filter in accordance with local environmental
regulations.
6 Lightly oil the gasket of the new fuel filter.
7 Mount the fuel filter and tighten it by hand.
