8

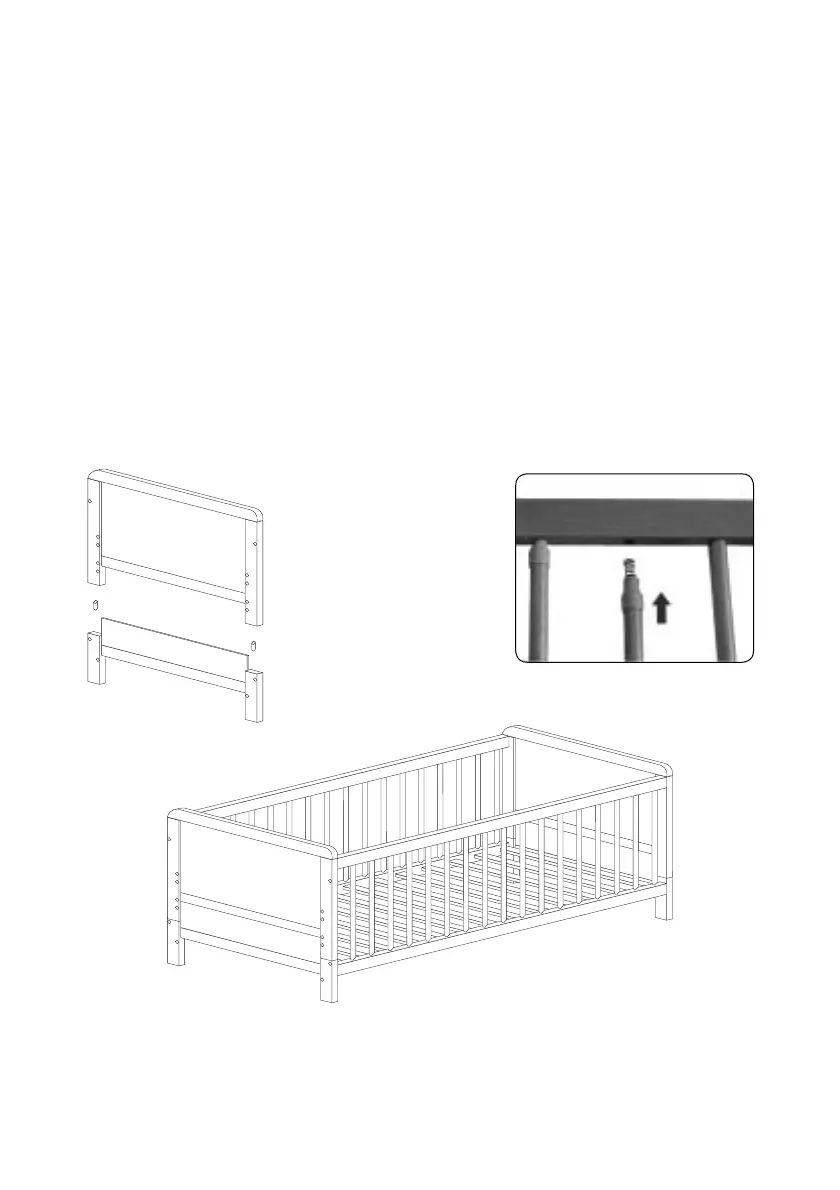

How to assemble the cot:
Insert the metal pins (I) into the bottom part of the head/foot, then join the top
part of the head/foot (A) to the bottom part of the head/foot (B).
Insert the gudgeons (F) into the slatted frame (C) and screw the screws (E) on
to the head/foot using the Allen key (I). Do the same with the side panels (D1
and D2).
Use the caps (H) to seal off the openings.
Locate three sliding bars in the middle of side panel D2 (see marking). These
can be removed by pressing upwards.
Sliding bar
Cot
How to assemble the
head and foot
