HAUL MASTER 60708 - Motor Parts List and Assembly Diagram

Page 11For technical questions, please call 1-800-444-3353.Item 60708
ttt

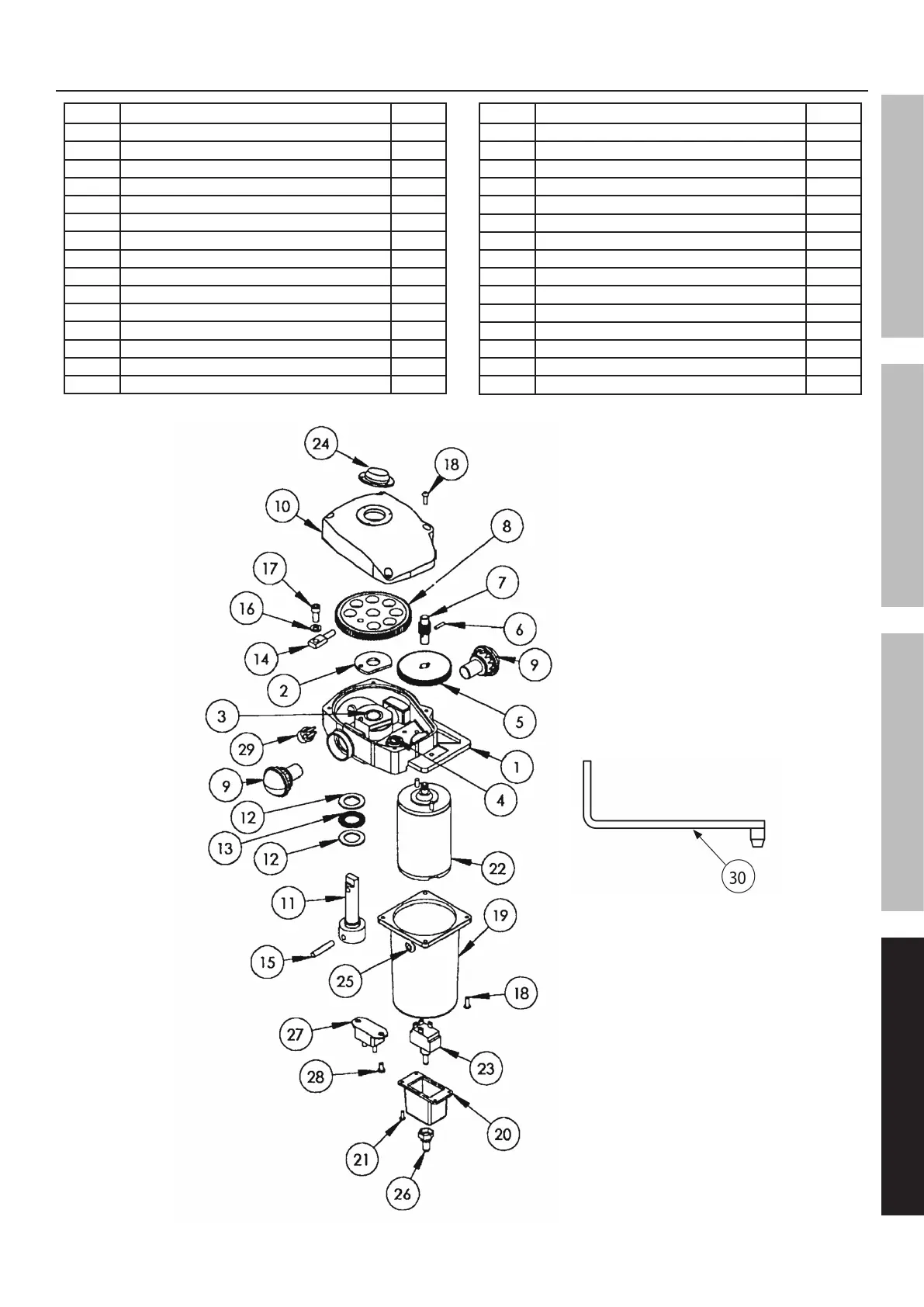

Motor Parts List and Assembly Diagram
Part Description Qty
1 Main Housing 1
2 Thrust Washer 1
3 Bushing 1
4 Bushing 1
5 Spur Gear 1
6 Pin 1
7 Pinion Gear 1
8 Main Gear 1
9 Light 2
10 Housing Cover 1
11 Drive Collar 1
12 Washer 2
13 Thrust Bearing 1
14 Pin 1
15 Pin 1
Part Description Qty
16 Lock Washer 1/4" 1
17 Cap Bolt 1/4" 1
18 Screw #8-32 8
19 Motor Housing 1
20 Power Switch Housing 1
21 Screw #5-40 4
22 Motor 1
23 Power Switch 1
24 Level Gauge 1
25 Grommet 1
26 Power Switch Cover 1
27 Circuit Breaker 1
28 Screw 2
29 Light Switch 1
30 Crank 1
