The HaulPro Junior Hand Cart is a versatile and compact material handling device designed for easy assembly and efficient transport of goods. It functions as both an upright hand truck and a flatbed cart, offering flexibility for various moving tasks.

Function Description:

The primary function of the HaulPro Junior Hand Cart is to assist in moving items, reducing the physical strain on the user. It can be configured into two main modes:

Upright Hand Truck Mode: In this configuration, the cart stands vertically, with a nose plate at the bottom for sliding under items. The handles are extended upwards, allowing the user to tilt the cart back and roll items on its two main wheels. This mode is ideal for moving boxes, appliances, or other tall, heavy objects over short distances, especially up or down stairs (though the manual doesn't explicitly mention stair climbing, it's a common use for hand trucks). The design suggests a focus on stability and ease of maneuvering in this mode.
Flatbed Cart Mode: By pressing a lever and pulling the handles through the frame, the cart transforms into a flatbed configuration. In this mode, the nose plate becomes part of the flat base, and the handles are positioned horizontally, allowing the user to push or pull the cart with items resting on its flat surface. This mode is particularly useful for transporting multiple smaller items, irregularly shaped objects, or items that need a wider, more stable base. The presence of four wheels (two larger, two smaller swivel casters) in this mode enhances maneuverability and weight distribution.

The transformation between these two modes is a key feature, providing adaptability for different types of loads and environments. The lever mechanism for adjusting the handles is designed for quick and easy conversion.

Important Technical Specifications (Derived from Parts List and Assembly Steps):

Wheels: The cart utilizes two 10" wheels for the main rolling function in both modes, and two smaller caster wheels (implied by the flatbed configuration and the presence of four wheel brackets in the parts list, though only two 10" wheels are explicitly listed). The 10" wheels are secured with an axel, washers, and cotter pins.
Frame: The frame is constructed from metal, likely aluminum or steel, given its intended use for hauling. It features round cross bars and a design that allows for the handles to slide through.
Nose Plate: A sturdy nose plate is included, essential for the upright hand truck function and forming part of the base in the flatbed mode.
Assembly Hardware: The cart uses various bolts (Handle Bolt, Nose Plate Bolts), nuts (Nut 1, Nut 2), washers, and cotter pins for secure assembly. The quantity of these parts (e.g., 4 handle bolts, 4 nose plate bolts, 4 Nut 1, 4 Nut 2, 4 washers, 2 cotter pins) indicates a robust connection system.
Dimensions (Implied): While not explicitly stated, the 10" wheels suggest a reasonable size for a "Junior" hand cart, suitable for home, office, or light industrial use. The overall dimensions would be compact enough for storage, especially when folded (though folding is not explicitly shown, the transformable nature implies a space-saving design).
Weight Capacity (Implied): The robust construction with metal frame, large wheels, and secure bolting suggests a decent weight capacity, typical for a hand cart of this type, likely in the range of 150-300 lbs, depending on the specific materials used.

Usage Features:

Convertible Design: The most prominent usage feature is its ability to convert between an upright hand truck and a flatbed cart. This allows users to adapt the cart to the specific requirements of the load and the environment.
Easy Transformation: The manual highlights a lever mechanism for adjusting the handles, indicating a user-friendly process for switching between modes. Pressing the lever allows the handles to be pulled through the frame, and pulling up on the frame returns it to the upright position, with handles clicking into place for safety.
Ergonomic Handles: The handles appear to be designed for a comfortable grip, likely with a rounded shape and possibly a non-slip material, though not explicitly detailed.
Maneuverability: In flatbed mode, the presence of four wheels (including swivel casters, implied by the design) would provide excellent maneuverability, allowing the cart to turn easily in tight spaces. In upright mode, the large 10" wheels facilitate movement over uneven surfaces.
Compact Storage (Implied): The convertible nature often implies that such carts can be stored more compactly than fixed-design carts, making them suitable for smaller storage areas.

Maintenance Features:

Assembly Manual: The provision of a detailed assembly manual ensures that users can correctly put together the cart, which is crucial for its safe and effective operation.
Replacement Parts: The manual explicitly mentions contacting HaulPro for ordering replacement parts, indicating that individual components can be replaced if damaged or worn, extending the lifespan of the cart.
Secure Fasteners: The use of bolts, nuts, washers, and cotter pins for assembly suggests that connections are designed to be secure. Regular checks of these fasteners for tightness would be a recommended maintenance practice to ensure safety and stability.
Wheel Maintenance: The use of cotter pins for securing the wheels allows for relatively easy removal and replacement of wheels if needed. The "notch in wheel facing outwards" tip during assembly suggests a specific orientation for optimal performance, which would also be relevant for any future wheel maintenance.
General Cleaning: As with any material handling equipment, regular cleaning to remove dirt and debris would help maintain its appearance and functionality, though not explicitly mentioned in the manual.

In summary, the HaulPro Junior Hand Cart is a practical, convertible device designed for ease of assembly and flexible use in moving various items. Its key strengths lie in its dual functionality as an upright hand truck and a flatbed cart, facilitated by a simple transformation mechanism and robust construction. The emphasis on clear assembly instructions and availability of replacement parts supports its long-term usability.

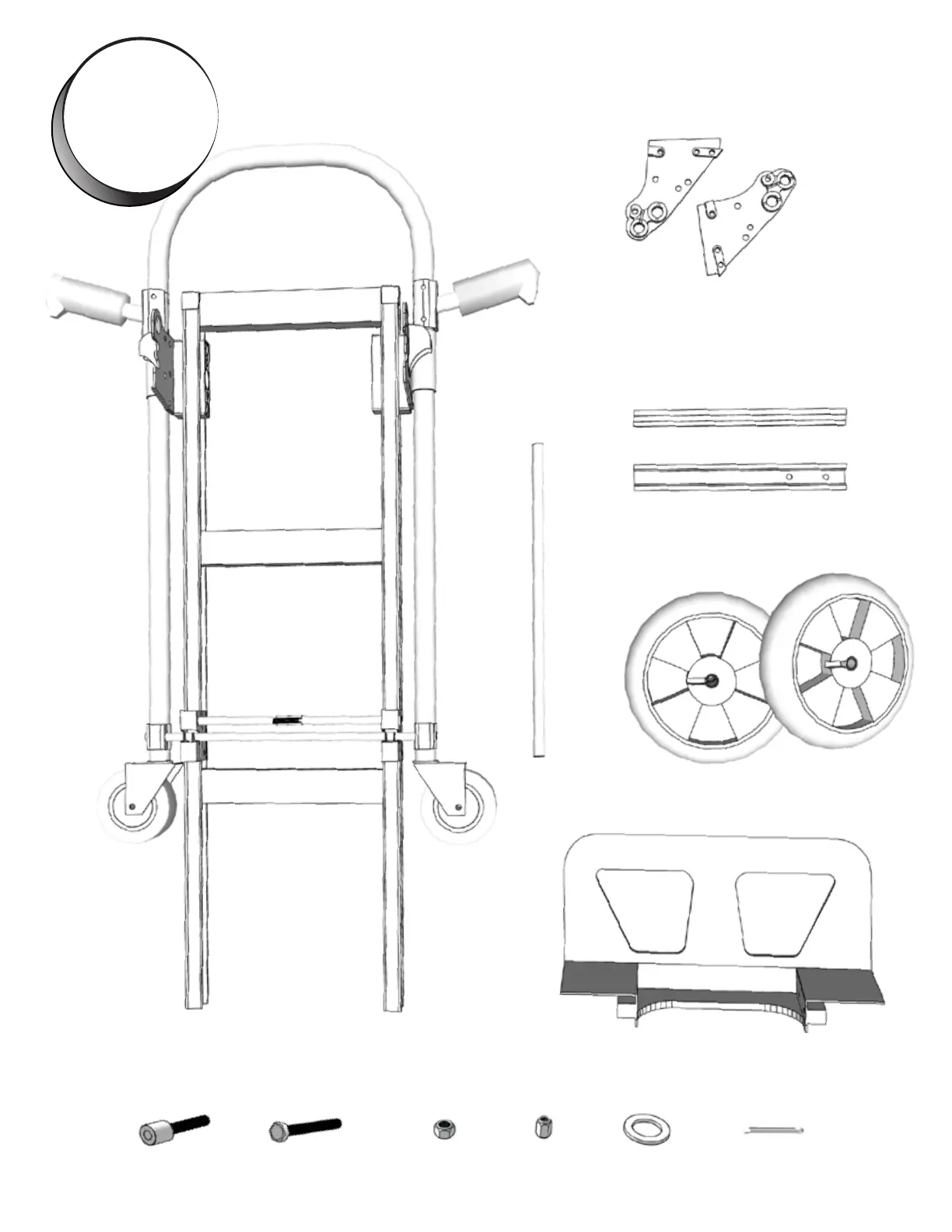

HaulPro Junior - Parts List
