Havis C-ARPB-101 - Assembly Drawing


  
  C‐ARPB‐101_INST_5‐16






















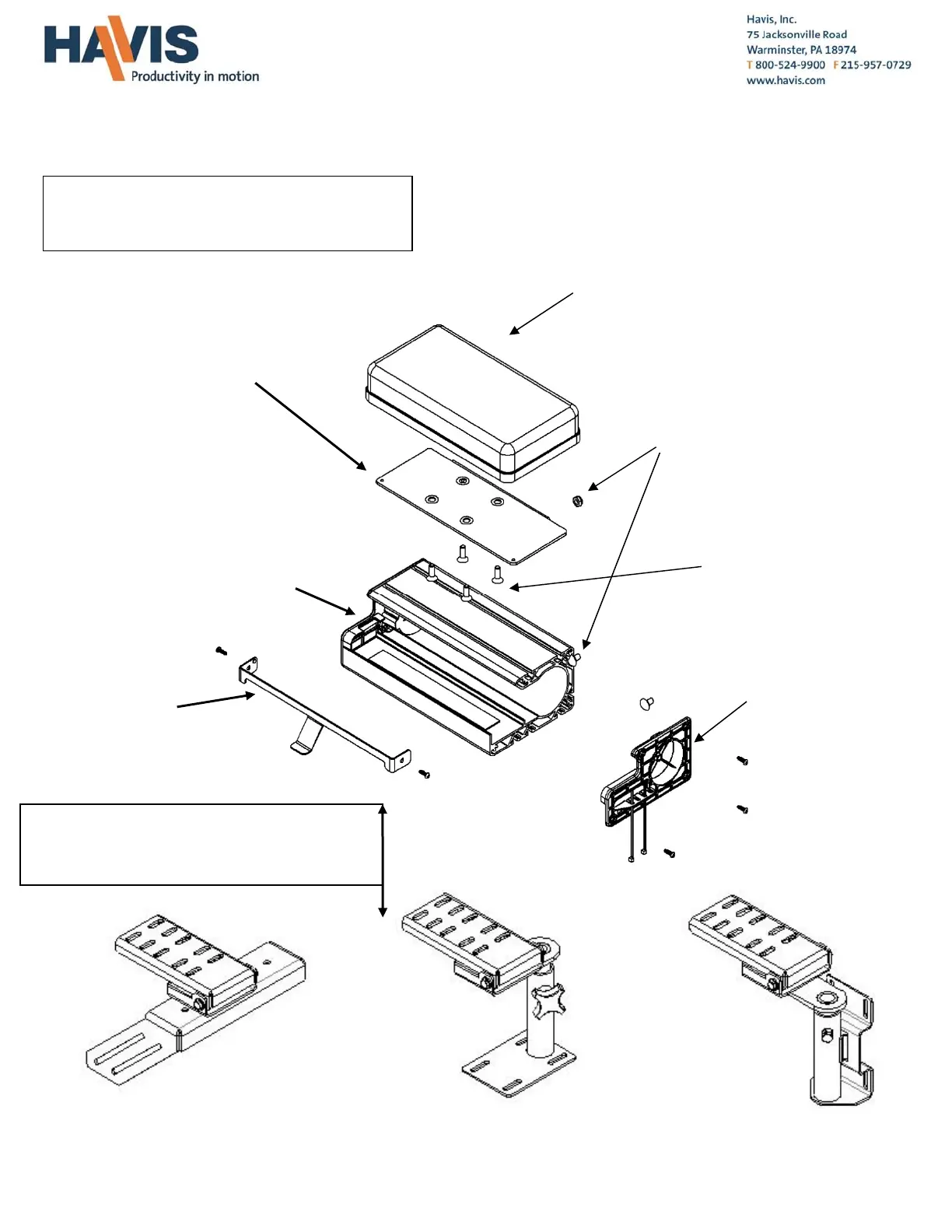

C-ARPB-101, 102, 103 and 110
ASSEMBLY DRAWING

CM007618
Reinforcement Plate
Arm Pad from C-ARM-XXX
C-ARM-103
Console Mount
Arm Rest Bracket
C-PM-101
Printer Mount Housing
C-ARM-104
Platform
Arm Rest Bracket
C-ARM-105
Side Mount
Arm Rest Bracke
t
EndCapandfour
(4)selfthreading
screws
¼x¾”CarriageBolts&nuts(notshown)
Forattachingprintermounthousingto
flipuparmrestbracket
ArmPad
¼x¾Flathead
machinescrews
Anti‐rollbracket
CM005189
Two(2)¼x½”Carriagebolts
and¼”Nylocknuts
