Step 2: Remove the 4 mounting screws on the outside
of the bottle filler with a Phillips screwdriver
(see Step 2 Diagram) and remove the mounting
bracket from the bottle filler.
Step 3: Remove the drain basin, drain grate, and filter cartridge from the small box inside the main
shipping carton. Install the drain basin with grate into the front of the unit (see Step 3
Diagram), pushing it straight in until the snap latches are fully engaged.
Step 4: Firmly screw the filter cartridge into the filter head (see Step 4 Diagram). NOTE: the bottle
filler will work only if a filter cartridge is installed and its wiring is plugged in (see Step 7).

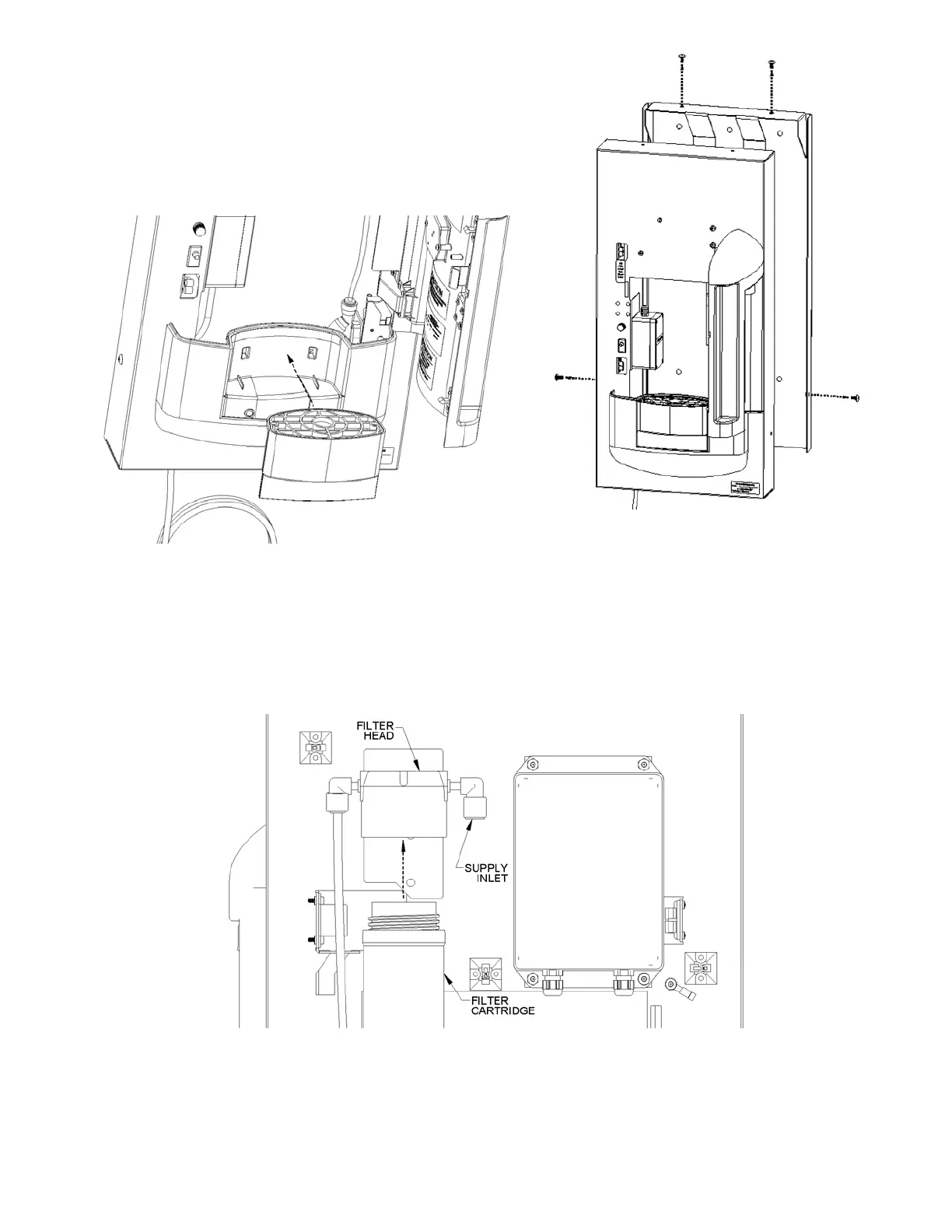

Step 4 Diagram (Back View)
