Haws 7501 - Page 7

APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE:
SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved.
HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
C
R
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
(775) 359-4712 FAX (775) 359-7424
E-MAIL: HAWS@HAWSCO.COM
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
MJ
06/30/16
16
0002080045.D
PORTABLE EYEWASH
7501/7501T/7501T240
1:1
12
MJ 05/29/18
5086
MJ
7 OF 8
INSTALLATION
5235
2018
VWC
ACTIVE
* 22"
[559mm]
* 22"
[559mm]
* 8"
[203mm]
* 16-3/4"
[425mm]
* 10-1/8"
[257mm]
3X Ø 5/16"
Ø [8mm]
MOUNTING
BRACKET
(SUPPLIED)
46 1/4" - 66 1/4"
[1175mm - 1683mm]
"ON"
POSITION
POSITION
STAND BY
"OFF"
3X 1/4" MOUNTING
HARDWARE
(NOT SUPPLIED)
* 14-1/2"
[368mm]
TO FINISHED FLOOR
1 1/8"
[29mm]
2 1/4"
[57mm]
1 1/4"
[32mm]
DO NOT EXCEED WATER FILL LINE.
REFER TO INSTALLATION
INSTRUCTIONS IN "OPERATION AND
MAINTENANCE MANUAL" FOR
PROPER FILLING PROCEDURES.
4
4
MODEL 7501 SHOWN.
FOR MODELS 7501T/7501T240 WITH HEATED BLANKET
SEE SHEET 2 OF 2.
FLOOR
LINE

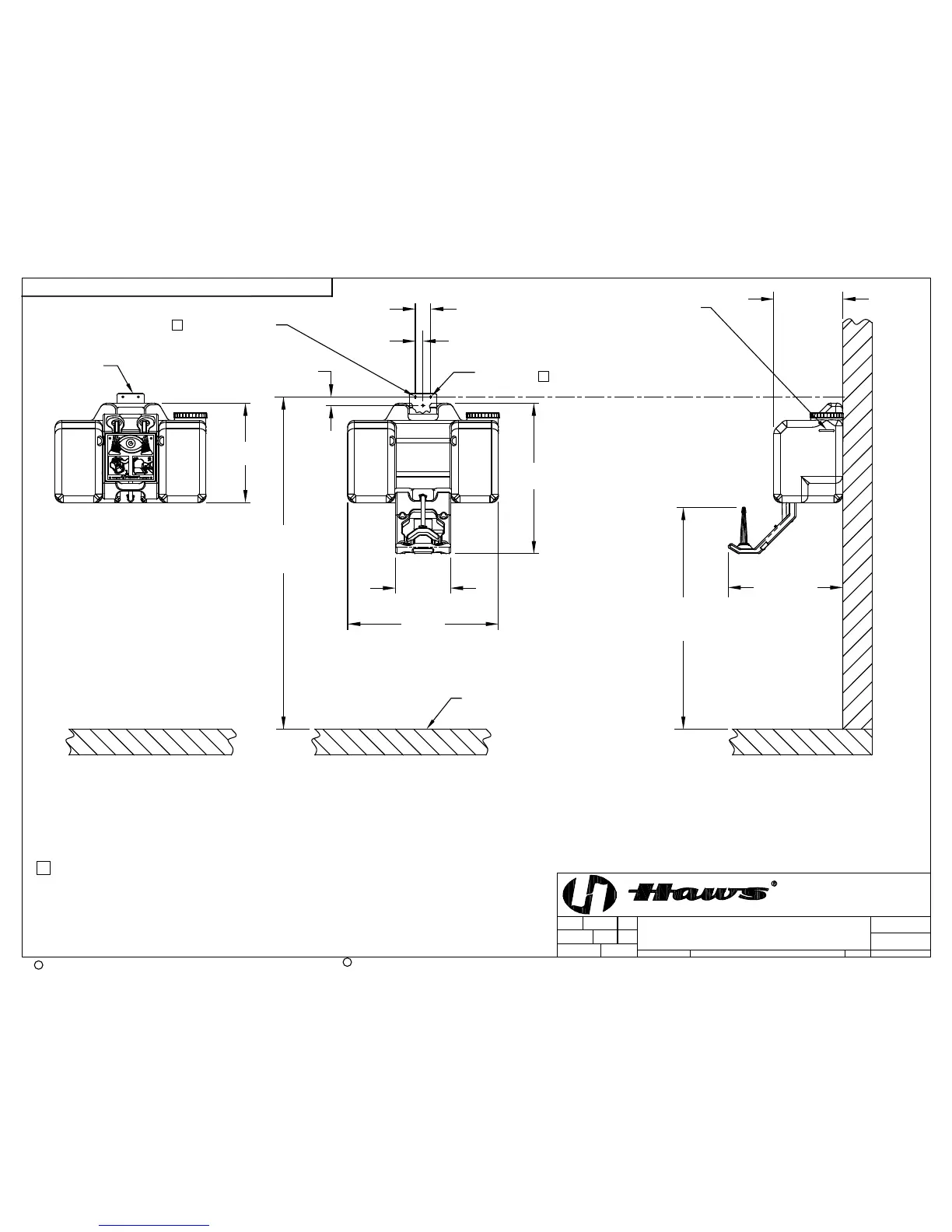

MOUNTING DETAILS:
33" - 53"
[838mm - 1346mm]
FLOW PATTERN
NOTES:
1. WHEN INSTALLING THIS UNIT, LOCAL , STATE, OR FEDERAL CODES SHOULD BE ADHERED TO FOR
INSTALLATION DIMENSIONS (LOCATIONS), WASTE AND SUPPLY REQUIREMENTS OTHER THAN SHOWN.
2. TO COMPLY WITH ANSI Z358.1-2014 FOR EMERGENCY EYEWASH OR EYE/FACE WASH:
EYEWASH OR EYE/FACE WASH SHALL BE POSITIONED SUCH THAT FLUSHING FLUID PATTERN IS NOT
LESS THAN 33" (838mm) AND NO GREATER THAN 53" (1346 mm) FROM SURFACE ON WHICH USER
STANDS; AND 6.0" (153mm) MINIMUM FROM WALL OR NEAREST OBSTRUCTION.
3. UNIT MUST BE LEVEL FROM FRONT TO BACK AND SIDE TO SIDE.
4 ALL THREE MOUNTING HOLES ON MOUNTING-BRACKET MUST BE USED TO PROPERLY SECURE
EYEWASH UNIT TO WALL.
5. DIMENSIONS MAY VARY ±1/2" [12.7 mm]
6. LOCATE ONE 1/2" THICK SPACER (QTY. 3 SUPPLIED) BEHIND EACH HOLE IN THE MOUNTING
BRACKET AS SHOWN.
7. UNIT MUST BE FILLED WITH WATER BEFORE CONNECTING TO POWER SOURCE.
(NOTES CONTINUED ON SHEET 2)
