– INSTALLATION OF CONNECTORS –

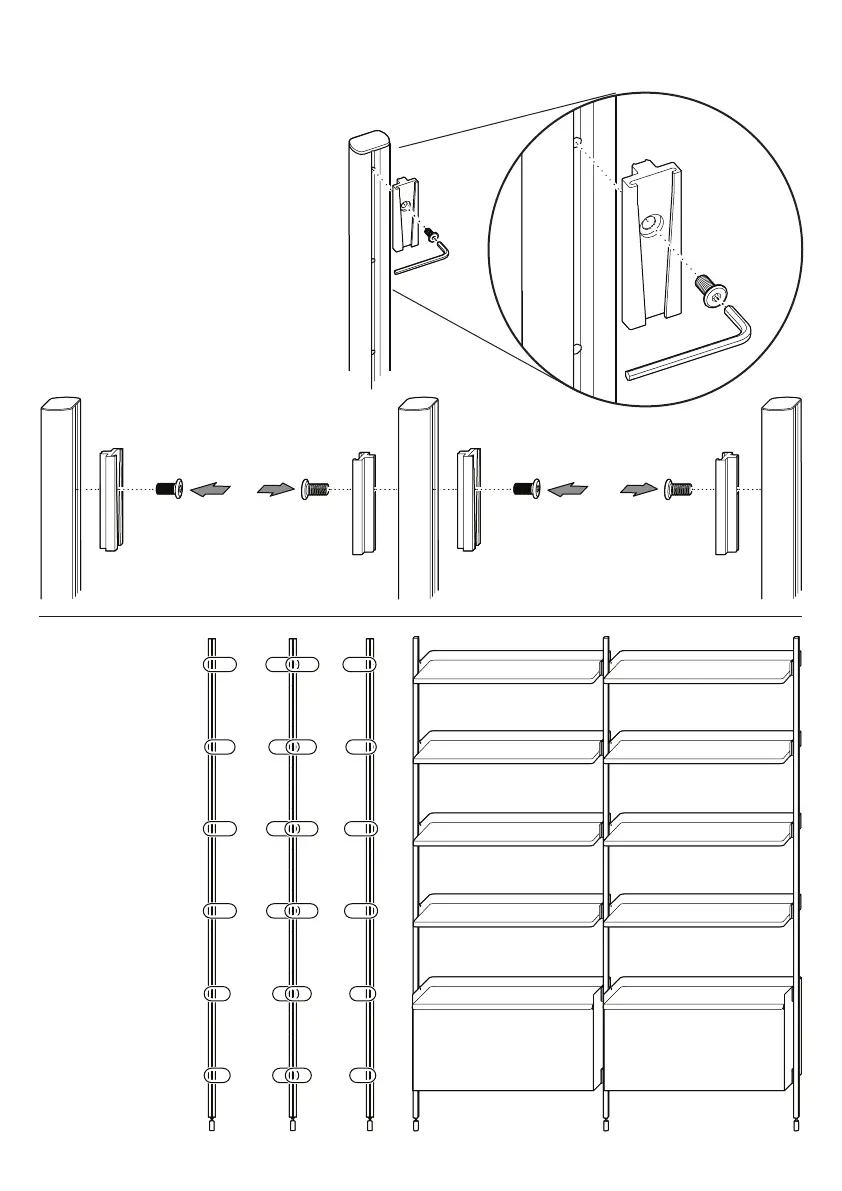

When assembling your Pier System,
you first need to identify where on
the profiles the shelves are going to
be mounted. This page features three
standard configurations, with markings
for where the connectors that hold the
shelves are to be mounted.
To mount a connector
B , align its
hole with the corresponding hole in the
profile
A .
Insert the screw
C and tighten it with
the Allen key
D .
