Hayes ENERGIZE XPC - Mounting and Bracket Attachment

Installation
Mounting angle and mounting direction
Mounting angles between –35 and + 90 degrees can be accommodated by the controller. THE UNIT
MUST, HOWEVER, BE INSTALLED SO THAT IT IS PARALLEL WITH THE TRAVEL OF THE TOW
VEHICLE AND TRAILER.
CAUTION:
• In the automatic mode, noticeable braking is applied only when
the pendulum sensor detects deceleration.
• With the vehicle at rest and the brake pedal depressed, there
should be only a slight output to the trailer brakes.
!
Anchor Holes
Red Indicator Light
Manual Slide
Lever
Gain Wheel
Pendulum
Lever Arm

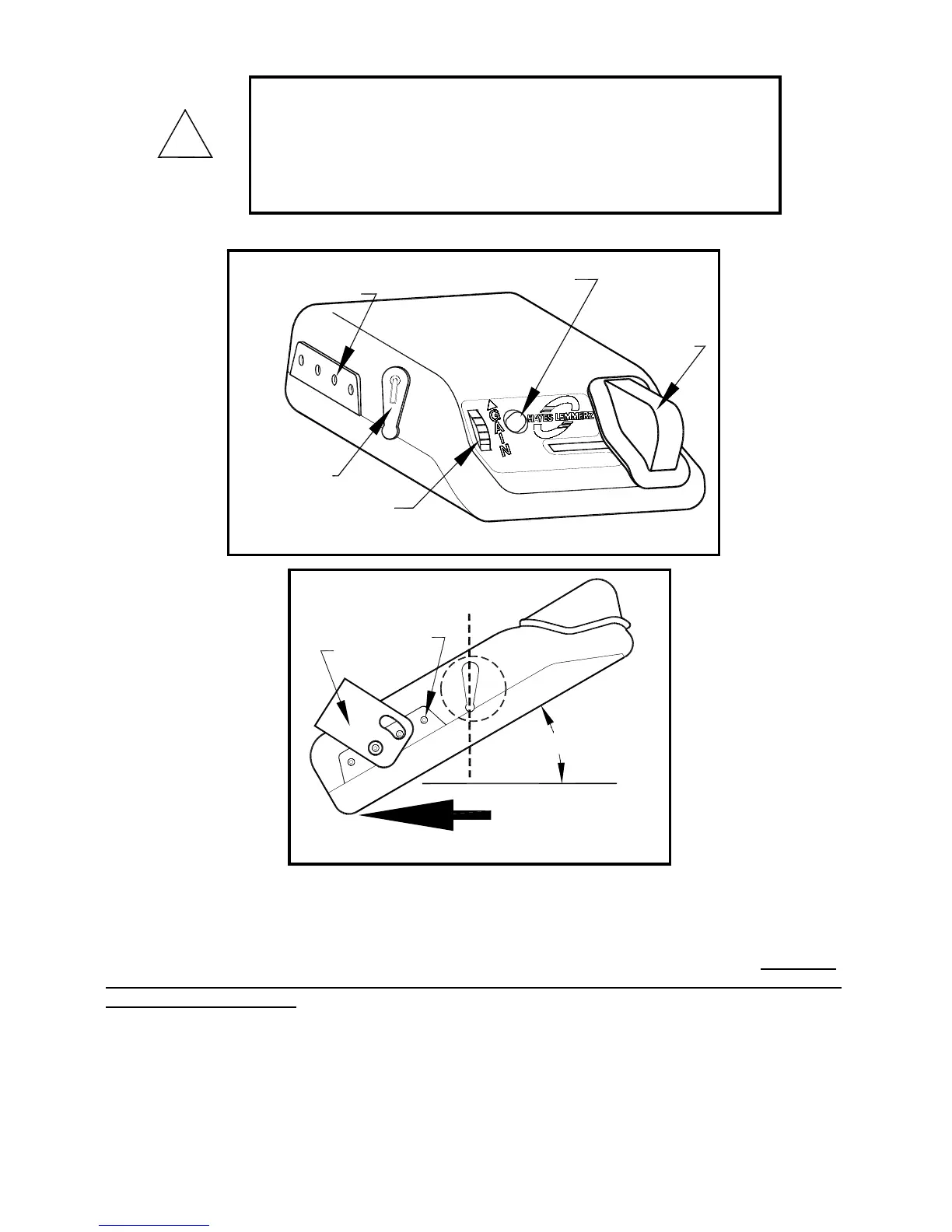

Fi
g
ure 1 - front view of Ener
g
ize III or Ener
g
ize XPC
Acceptable Mounting Angles
Anchor Holes
(4 ea. side)
Mounting
Bracket
Pendulum Leveling Arm Straight Down
Front of Vehicle
-35° to 90°
Figure 2 - acceptable mounting angles
