12•42 Wiring diagrams

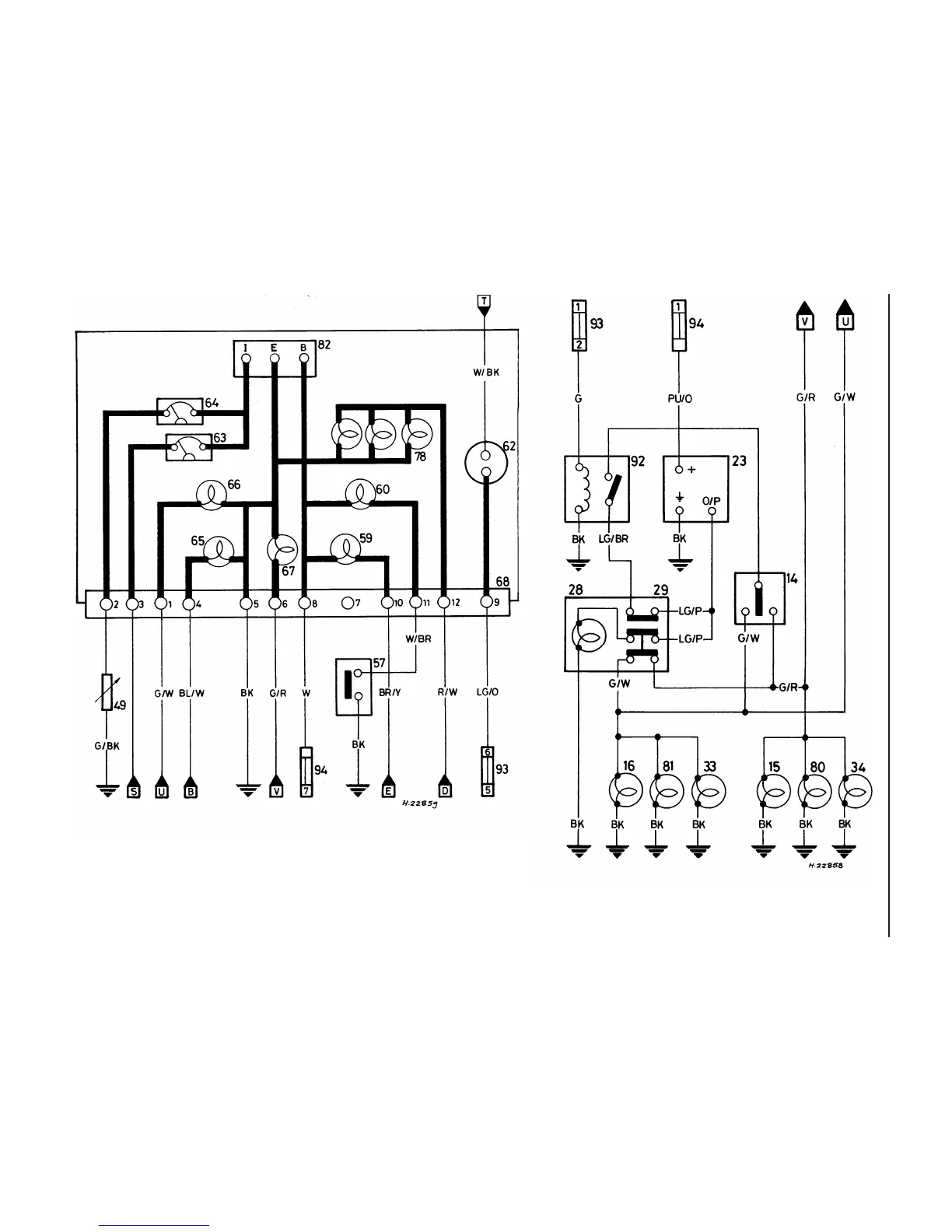

Wiring diagram 23 - Direction indicator and hazard warning light circuit
(fuel-injected models)
U to Wiring diagram 22 V to Wiring diagram 22
Wiring diagram 22 - Instrument circuit (fuel-injected models)
E to Wiring diagram 20
B to Wiring diagram 19
D to Wiring diagram 19
S to Wiring diagram 21
T to Wiring diagram 21
U to Wiring diagram 23
V to Wiring diagram 23
