Operation
System Startup
1. Clean filter. Start filter pump. Make sure all air is out of the spa plumbing lines. Wait five minutes.
2. Close electrical disconnect switch.
3. Set C-SPA-XI thermostat at desired temperature. Disconnect time clock during initial heat-up. Your outlet temperature will feel just slightly warmer than
the inlet temperature. Do not be concerned; this is normal.
The adjustable external thermostat on your C-SPA-XI heater has a “positive off” provision at the lowest temperature setting. Movement of the thermostat knob
to this position will prevent operation of the heater.
CAUTION - Internal components of the heater are still “live” electrically even with the thermostat turned off before servicing the unit. The spa tem-
perature may be adjusted by turning the thermostat knob up or down until the spa temperature reaches the desired level. Adjustments should be made
in small increments and sufficient time should be allowed for the body of water to heat or cool before further adjustments are made. When the exact
desired comfort level is reached, you may wish to lock the thermostat dial lock at this position by tighten up the dial lock screw. The pilot lamp on your
C-SPA-XI is an indicator that the element(s) should be operating. It will cycle on and off with the thermostat.
WARNING - Spa temperature is to be determined by an accurate spa thermometer. “Test” the water temperature with your hand before entering the
spa. See Hypothermia Warning on page 3.
L1 L2
#8 RED
#8 RED
#10 RED
#8 BLACK
#8 BLACK
#10 BLACK
#18 YELLOW
#18 YELLOW
#18 BLACK
#18 BLUE
Ground
Pressure
Switch N.O.
Internal
Connection
Surface Mount
Hi Limit Thermostat
Contractor
208-240V Coil
Heating
Element
Pilot Lamp
Immersion
Thermostat
Adjustable
L1 L2
#8 RED
#8 RED
#10 RED
#8 BLACK
#8 BLACK
#10 BLACK
#18 YELLOW
#18 YELLOW
#18 BLACK
#18 BLUE
Ground
Pressure
Switch N.O.
Internal
Connection
Surface Mount
Hi Limit Thermostat
Contractor
208-240V Coil
Heating
Element
Pilot Lamp
Immersion
Thermostat
Adjustable
Heating
Element

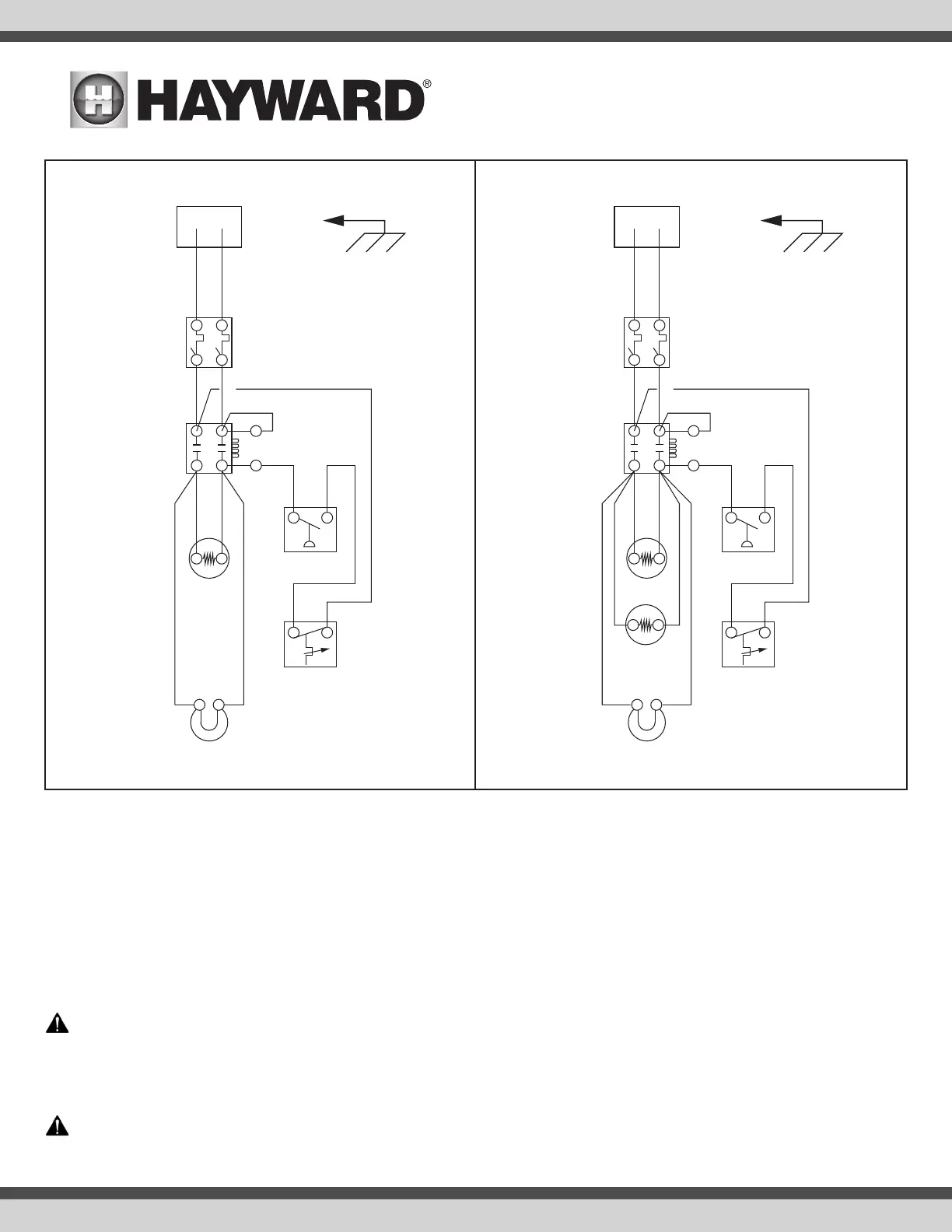

C-SPA-XI 5.5 (240V, 5.5KW) C-SPA-XI 11 (240V, 11KW)
