CAT 2000 Switch And Keypad Functions
Advanced Configuration Options
Beginning with the 2008 model year, the CAT 2000 controller incorporates an advanced program-
ming menu and enhanced features. The advanced programming menu contains features which
are usually implemented during initial dealer setup and do not need to be routinely changed by the
operator.
no Flo (Enhanced No-Flow Alarm)
The no-flow alarm displays the prompt on the LED displays, in addition to activating both channel
Alarm indicators and sounding an audible alarm.

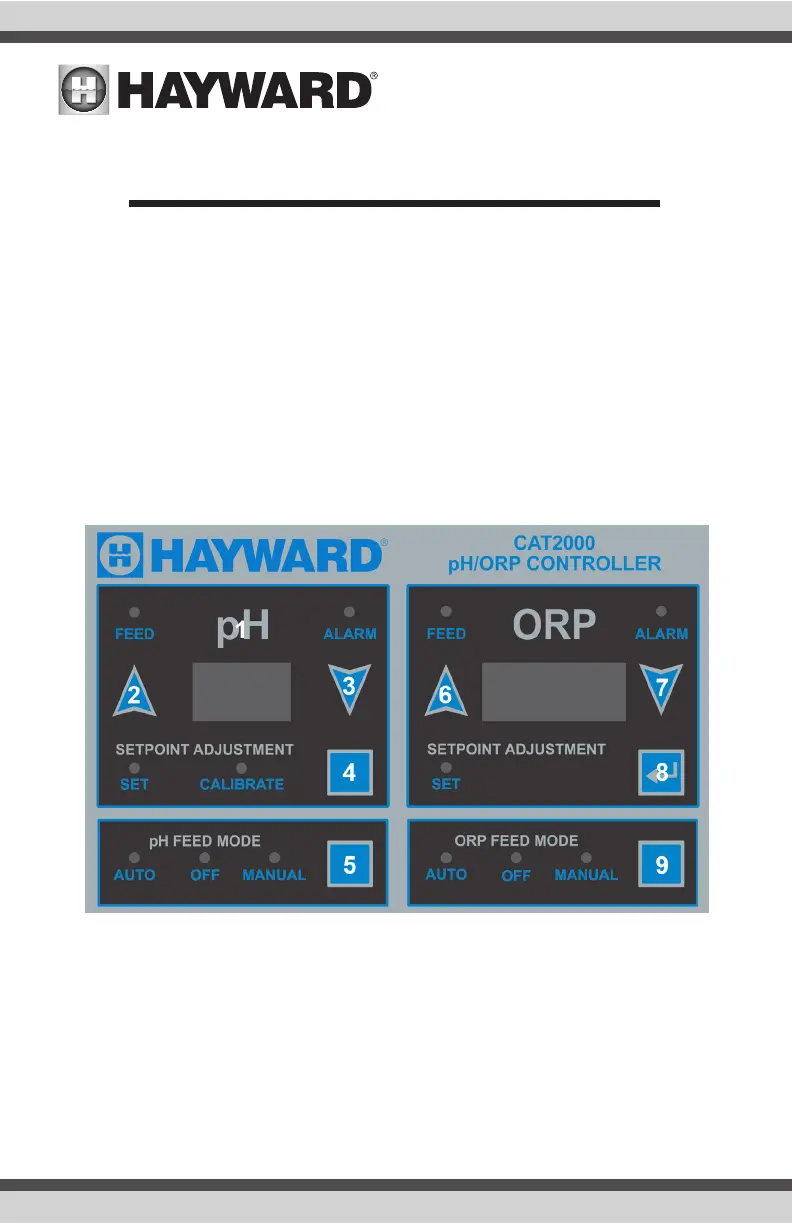

BUTTON DESIGNATION DESCRIPTION
POWER
1
2
3
4
5
6
7
8
9
pH Channel Decrease Button
Controller Unit Power Switch
Hidden Button (Located Behind “pH” Text)
pH Channel Increase Button
pH Channel Setpoint Adjustment Button
pH Channel Mode Selection Button
ORP Channel Increase Button
ORP Channel Decrease Button
ORP Channel Setpoint Adjustment Button
ORP Channel Mode Selection Button
