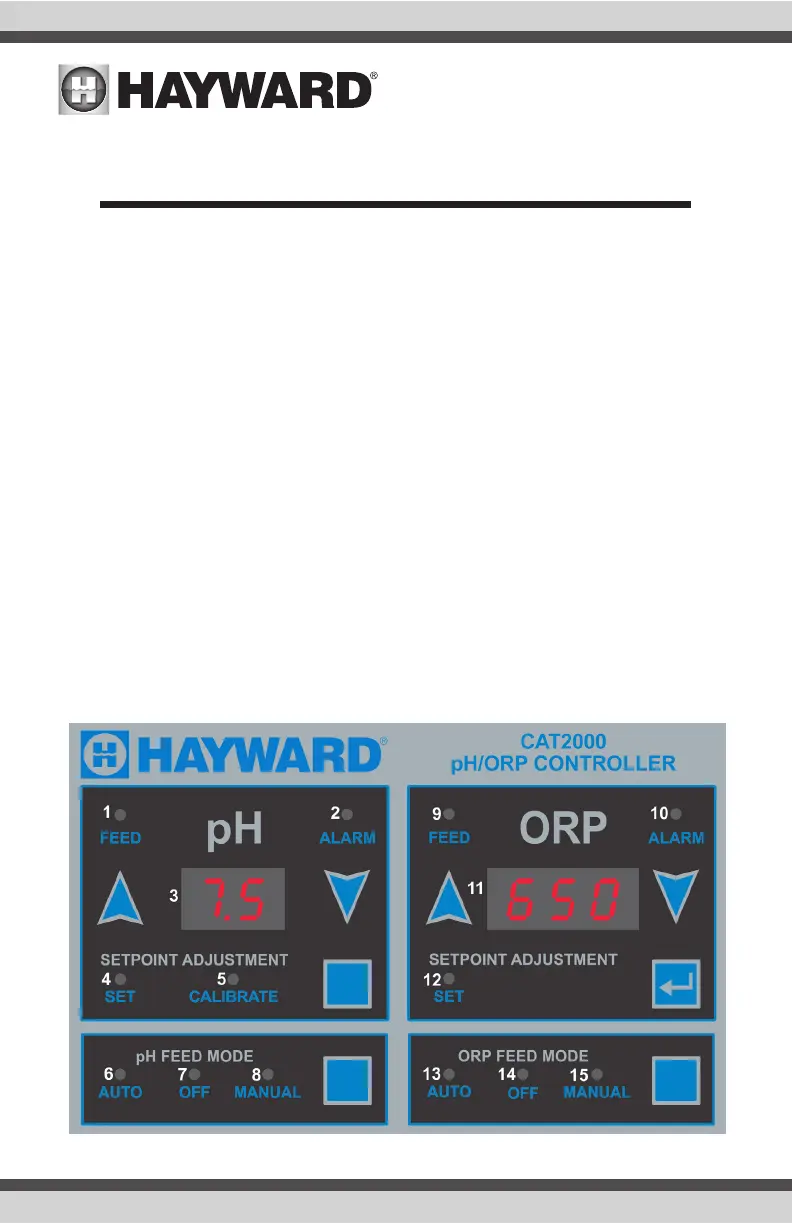

CAT 2000 Indicator Designations & Functions
ORP FEED MANUALLY DISABLED
DESIGNATION COLOR/TYPE DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
GREEN LED
RED LED
DIGITAL DISPLAY
pH SETPOINT ADJUSTMENT MODE INDICATORGREEN LED
GREEN LED
GREEN LED
RED LED
GREEN LED
GREEN LED
RED LED
DIGITAL DISPLAY
GREEN LED
GREEN LED
GREEN LED
RED LED
pH FEED INDICATOR
pH OUT OF RANGE ALARM
pH INDICATOR/SETPOINT/CALIBRATION
pH CALIBRATION MODE INDICATOR
AUTOMATIC pH CONTROL INDICATOR
pH FEED MANUALLY DISABLED
pH FEED MANUALLY ACTIVATED
ORP FEED INDICATOR
ORP OUT OF RANGE ALARM
ORP INDICATOR/SETPOINT
ORP SETPOINT ADJUSTMENT MODE INDICATOR
AUTOMATIC ORP CONTROL INDICATOR
ORP FEED MANUALLY ACTIVATED
