6
T

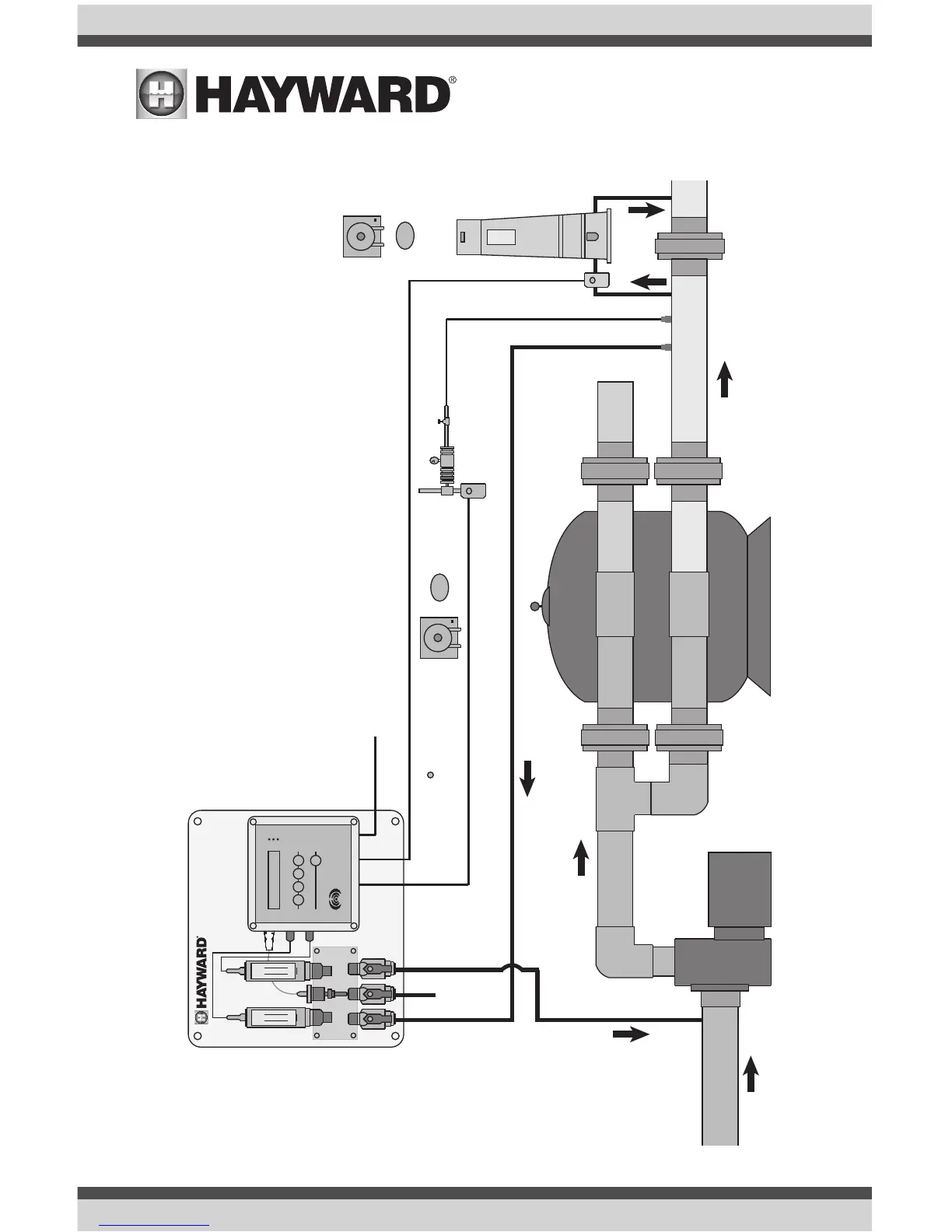

ypical Cat 4000 Installation Diagram
Flow
Main Drain
and Skimmer
Flow
Flow
Flow
Flow Cell / Flow Sensor Bypass Line
Solenoid
Flow
Pressure
Differential
Solenoid
CA
T CO2
pH Control
Erosion
Feeder
or
or
Chemical
Pump
Chemical
Pump
pH Feed Output
Power Cord
ORP Feed Output
Influent
(to Return Line)
Effluent
(to Suction)
CA
T 4000
SYSTEM
CA
T Controllers
SUCTION LINE
PUMP
FIL
TER
W
ASTE
RETURN LINE
Sample
Stream
MENU
UP
DOWN
ENTER
TRANSMIT
CAT 4000
POOLC
OMM
ENABLED
pH
Cl/Br
FEED
FEED
ALARM
WA
TER QUALITY CONTROLLER
CAT PRO25
ORP
Sensor
CAT PRO15
pH
Sensor
pH
ORP
Flow
pH
ORP
6
8
Table of Contents
Table of Contents
1
Important Safety Instructions
2
Description
3
Introduction
3
What’s Included
4
Package Contents
4
What You will Need
5
Installation Procedure
5
To Release Tub
6
Insert Tubing
6
Prepare Tubing
6
Typical Cat 4000 Installation Diagram
7
Overview
8
Pool Chemistry
8
Configuration
8
Basic Configuration Options
9
Normal Operating Mode
9
To Change the Brightness of the Display
9
To Calibrate Ph
10
To Enter the Operating Menu
10
To Change the Ph Setpoint
10
Operating Menu
10
Ph Feed Mode
11
Automatic Feed
11
To Select Ph Feed Mode
11
To Change the ORP Setpoint
11
To Select ORP Feed Mode:
12
Advanced Configuration Options
12
To Enter the Configuration Setup Menu
12
To Change the Ph Control Mode
13
Ph Priority
13
PH Interlock
14
Ph Feed
14
Ph Low Alarm
14
Ph High Alarm
15
Ph Overfeed Timeout
15
ORP Feed
16
ORP Mixing Time on
16
ORP High Alarm
17
ORP Low Alarm
17
ORP Mixing Time off
17
ORP Overfeed Timeout
18
Auxiliary Ph Setpoint
18
Auxiliary ORP Setpoint
19
Alarm Setup
19
Feed on Alarm
19
Auxiliary Output Setup
20
Level/Flow Sensor Input # 3 Setup
20
Digital Flow Pipe Size
21
Digital Flow Alarm
21
Digital Flow Sensor Type
21
Display System Information
22
Restore Factory Defaults
22
Demonstration Mode
23
CAT 4000 Menu Tree
24
Cat 4000 Controller Package
26
Water Maintenance
26
Precision Calibration
26
System Maintenance
26
Cell and Satellite
27
Controller Storage
27
Winterization
27
Network Communications
27
Activating Communications
28
Using the POOLCOMM Website
29
Status Symbol
29
Facility Name
29
Site Location
30
Last Warning
30
Commands
30
Ph out of Range
31
Ph Low
31
Ph High
31
Troubleshooting
31
ORP Tank Low
32
No Flow
32
Service Request
32
Technical Specifications
32
Warranty
35
