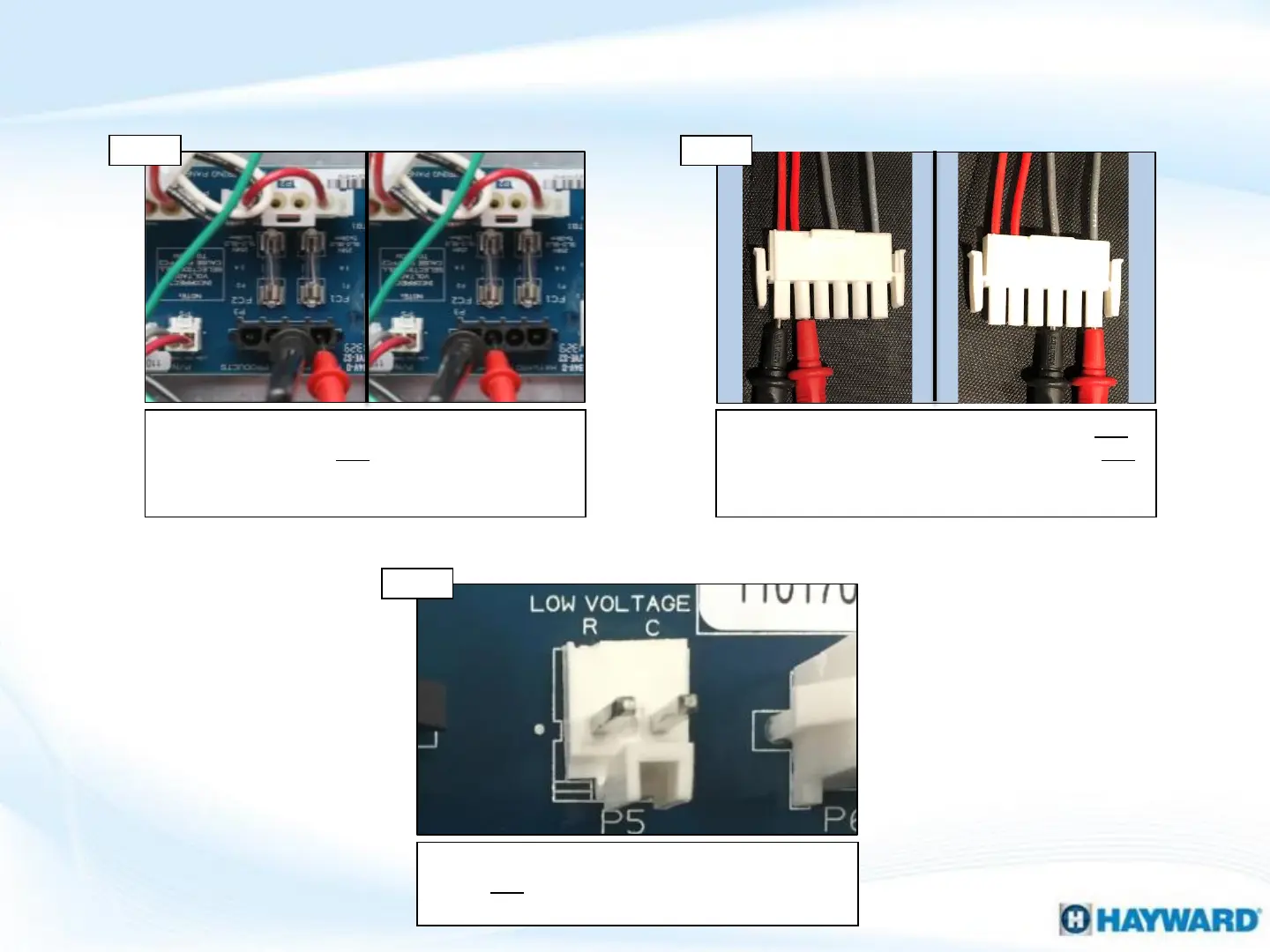

Disconnect the plug from P5 (on fuse board). Test
22-28VAC between R & C. IF no voltage, replace
field wiring panel (pg. 25). If correct, go to step 1H.
Test P5 (low voltage)
Step 1G
Disconnect the P3 plug from field wiring panel
(FWP). Test 110-125VAC between pins 1&2 and
3&4 on the board. IF good, go to 1F. IF NOT,
replace the field wiring panel (pg. 25).
Test transformer input
Step 1E
Disconnect P4 plug from FWP. Verify 22-28VAC
between pins 1 & 2 (red wires), then 110-125VAC
between pins 4-6 (grey wires). IF correct, go to 1G.
IF incorrect replace transformer (pg.25).
Test transformer output
32
1. Heater Not Powering Up (cont.)
Step 1F
