USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
2
IMPORTANT SAFETY INSTRUCTIONS
SAFETY WARNING: Do not open. Light has no user serviceable parts inside. Im-
proper installation may result in death or serious injury to bathers or service personnel
or others by way of electric shock. Disconnect electrical power before installing or
servicing this equipment. Read and follow all instructions. This product to be installed
by qualied personnel only.
INSTALLATION DEPTH REQUIREMENT: Except when the xture is installed in an
area of the swimming pool that is not used for swimming and the lens is adequately
guarded to keep any person from contacting it, the xture must be installed in a wall or
on a oor of a pool, spa, or water feature with the top of the lens opening not less than
4 in. and no more than 72 in. below the normal water level of the pool.
IMPORTANT WIRING CHECKLIST
Do not skip any steps in this or any section of the manual.
The above safety warnings and the complete installation instructions in this manual have been read and fol-
lowed.

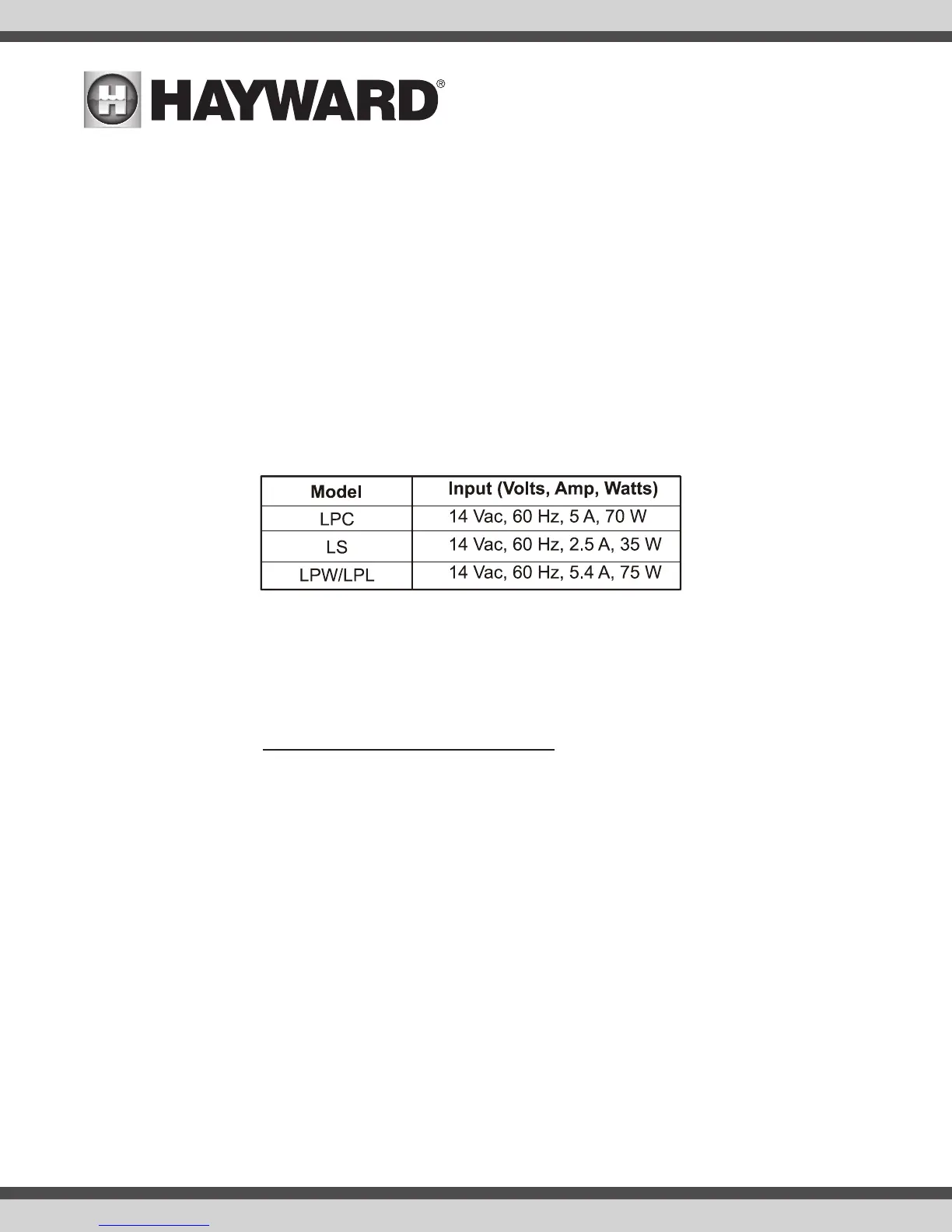

A SAFETY LISTED POOL/SPA ISOLATION TRANSFORMER HAS BEEN USED TO SUPPLY 14 VOLTS TO
THE FIXTURE.
The transformer output wiring HAS NOT been tied or shorted to ground.
The cord length has not been extended beyond the guidelines in this manual.
The cord jacket is not damaged, cut or spliced except as noted below.
Extensions or splices to the cord are only made in a safety listed Pool / Spa junction box or junction box trans-
former system.
The luminaire is rmly secured to the niche and cannot be removed without the use of a tool.
The niche is properly bonded UNLESS a Hayward Universal ColorLogic Niche (LFGUY1000 or LGGUY1000)
is used.
The luminaire has been installed by qualied personnel in compliance with the National Electrical Code (NEC)
or Canadian Electric Code (CE Code) and any applicable local codes and/or regulations.
Installed by: ______________________ of company ____________________________ Date: __________________
LEAVE THESE INSTRUCTIONS WITH PROPERTY OWNER
