Push the eject button Right of the Optical Disk Drive slot to release the Optical Disk.

The Bottom side of the Notebook

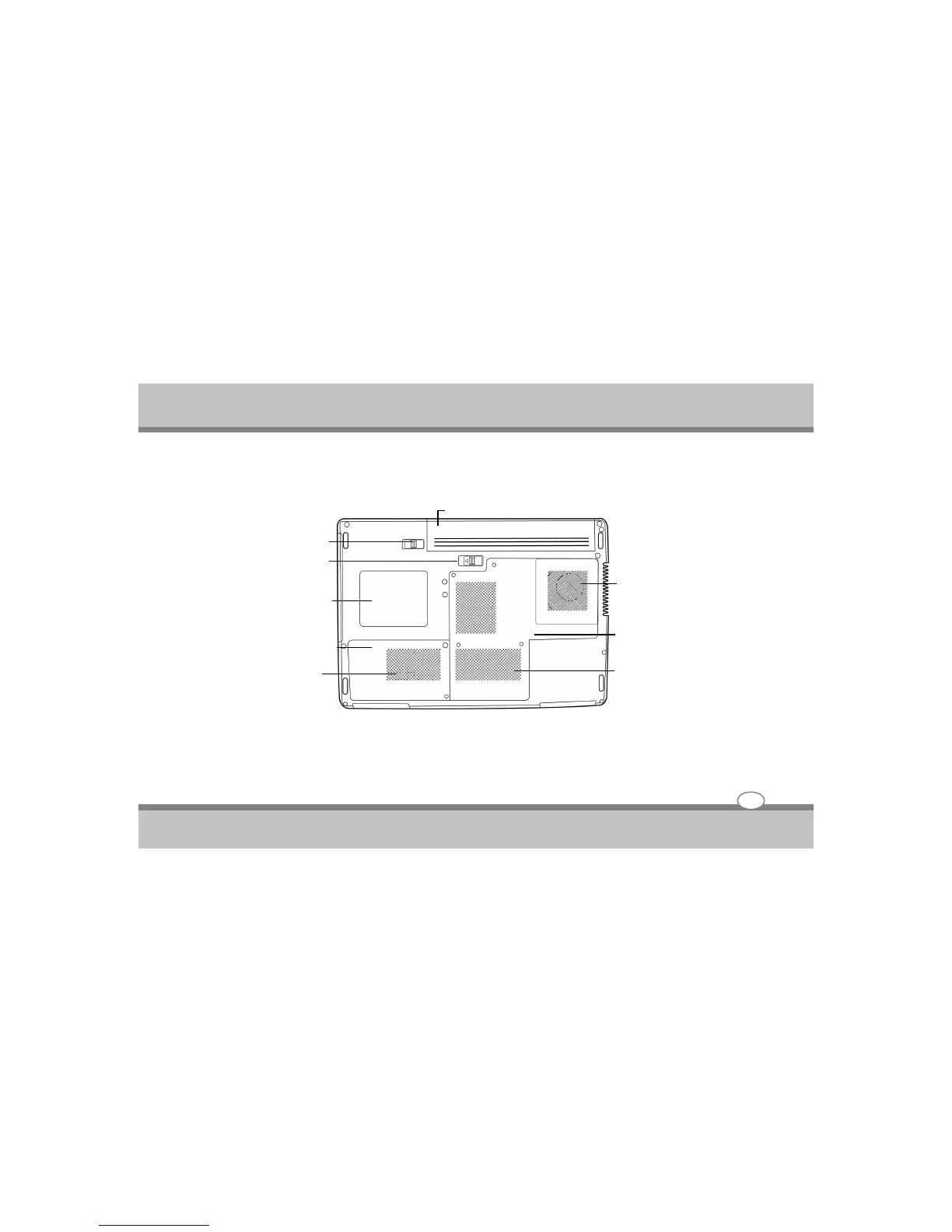

Refer to the diagram below to identity the components on the bottom side of the Notebook PC.

1. Battery Pack

The Lithium-ion battery pack is automatically charged when connected to an AC power source and

maintains power to the Notebook PC when AC power is not connected. Battery time varies by usage and

by the specifications for this Notebook PC. The battery pack cannot be disassembled and must be

6. Fan Outlet

1. Battery Pack

4.Rating Label

6. Air vent

5. Hard Disk

Compartment cover

7. CPU, Memory & Wireless LAN

Compartment Cover

2. Battery Lock Latch

3. Battery Release Latch
