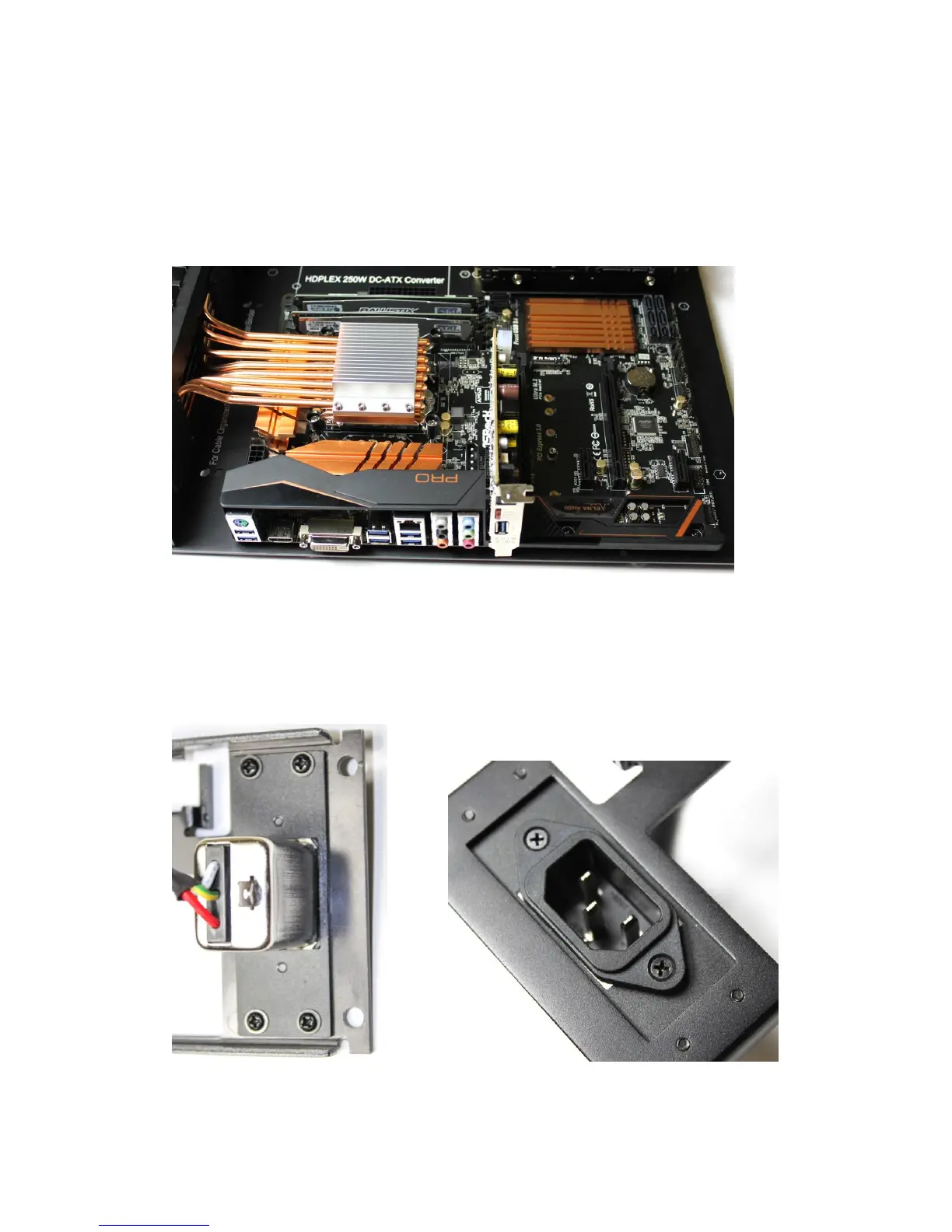

Back Plate and Expansion Card Installation
If you plan to use a half height PCIE card in the middle slot without a riser, install
the card on the motherboard BEFORE installing the H5 back plate!
Install the power adapter plate onto the H5 back plate before attaching the back
plate to the H5 chassis. If you are using an AC C14 IEC connector, install the AC
adapter plate using four M3*5 Round Head Screws with Cushions A and the AC
C14 connector using two M3*5 Flat Head Screws D.
