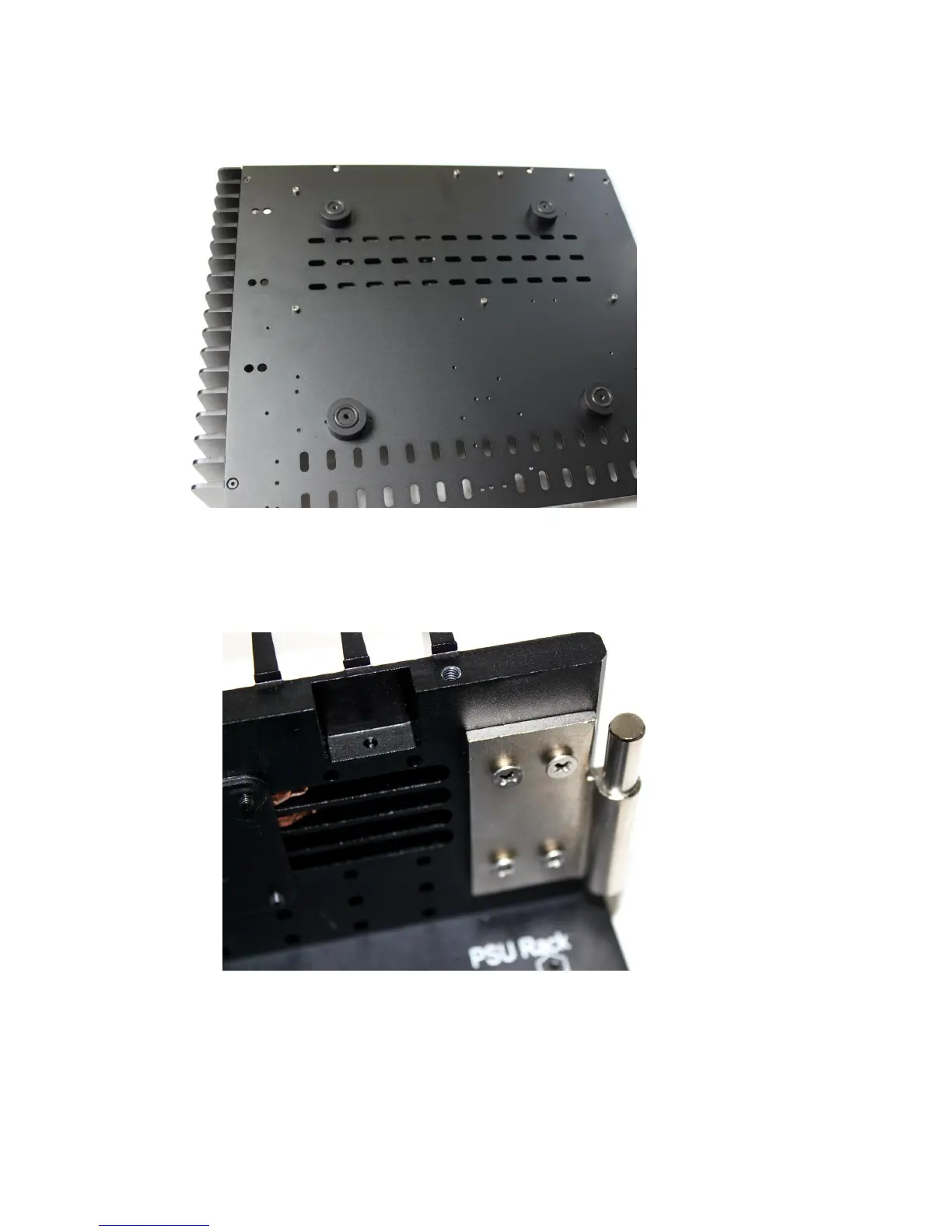

Install the left side panel to the H5 base plate using two M4 Flat Head HEX
Screws C.
Install the faceplate’s hinge system to the left side panel using four M4 Flat Head
Screws I.
