TM 55-1520-228-10
TORQUE AVAILABLE - CONTINUOUS OPERATION
BLEED AIR ON PARTICLE SEPARATOR AND
REVERSE FLOW INLET INSTALLED
100% RPM JP-4
CALIBRATED TORQUE - %Q
DATA BASIS: CALCULATED FROM MODEL SPEC 876. 25 JULY 1975,
CORRECTED FOR INSTALLATION LOSSES BASED ON FLIGHT TEST OF SIMILAR TYPE AIRCRAFT

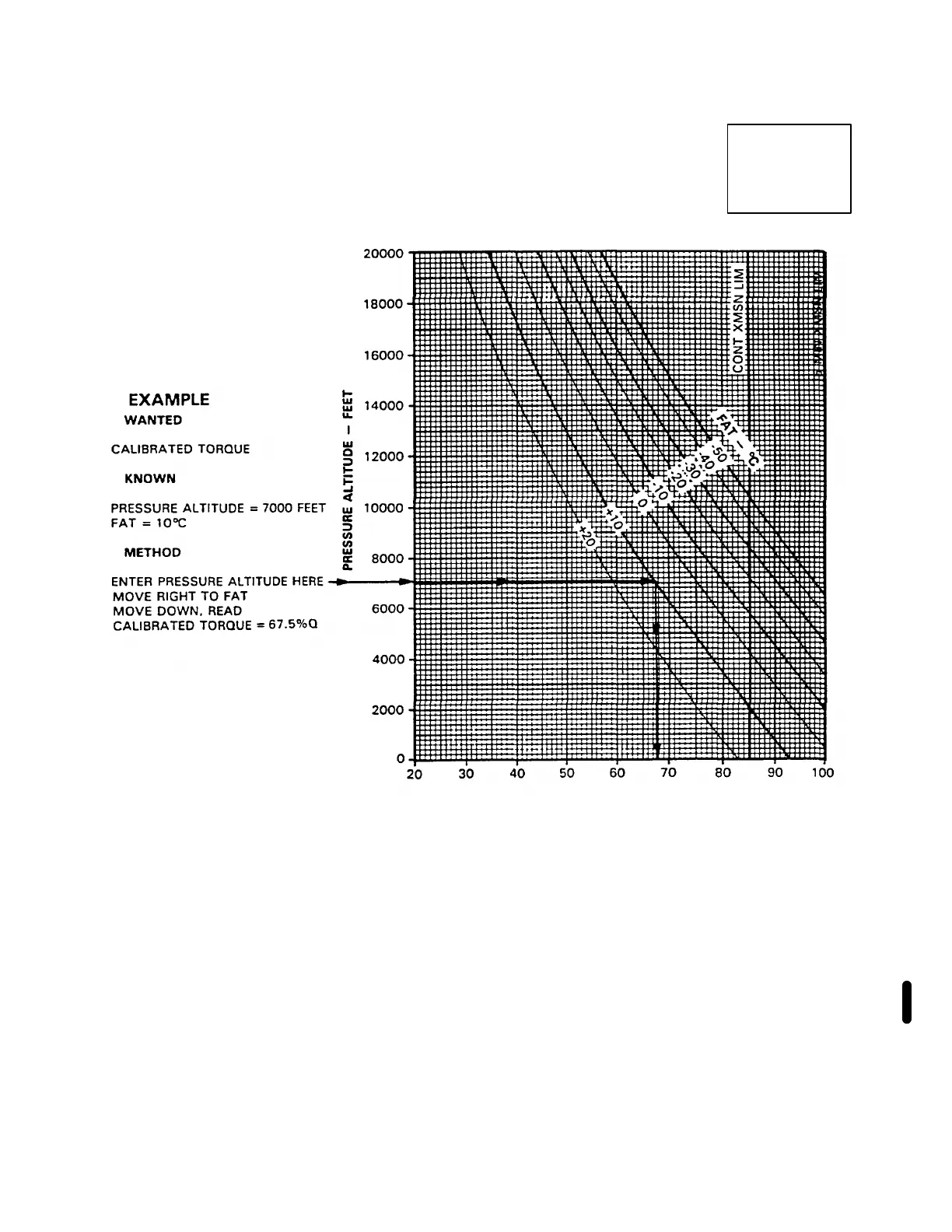

Figure 7-12. Torque Available (Continuous Operation) Chart (Sheet 4 of 4)
Change 10 7-55
TORQU
AVAILABLE
OH-58A/C
T63-A-720
