TM 55-1520-228-10
NOTE
Round glass model shown
1. Copilot Door Emergency Jettison Handle 12. Anti-Torque Pedal Adjuster
2. Overhead Console 13. Inertia Reel Control Handle
3. Fuel ShutoffValve 14. Pilot Collective Stick
4. Free Air Temperature (FAT) Gage 15. CollectiveFrictionControlAdjustment
5. Pilot Door Emergency Jettison Handle 16. Console
6. Instrument Panel 17. Co pilot Seat
7. Magnetic Com pass 18. Copilot Collective Stick
8. Pilot Cyclic Stick 19. Copilot Ant i-Torque Pedals
9. Pilot Anti-Torque Pedals 20. Copilot Cyclic Stick
10. Cyclic Friction Control Adjustment 21. Glareshield
11. Pilot Seat

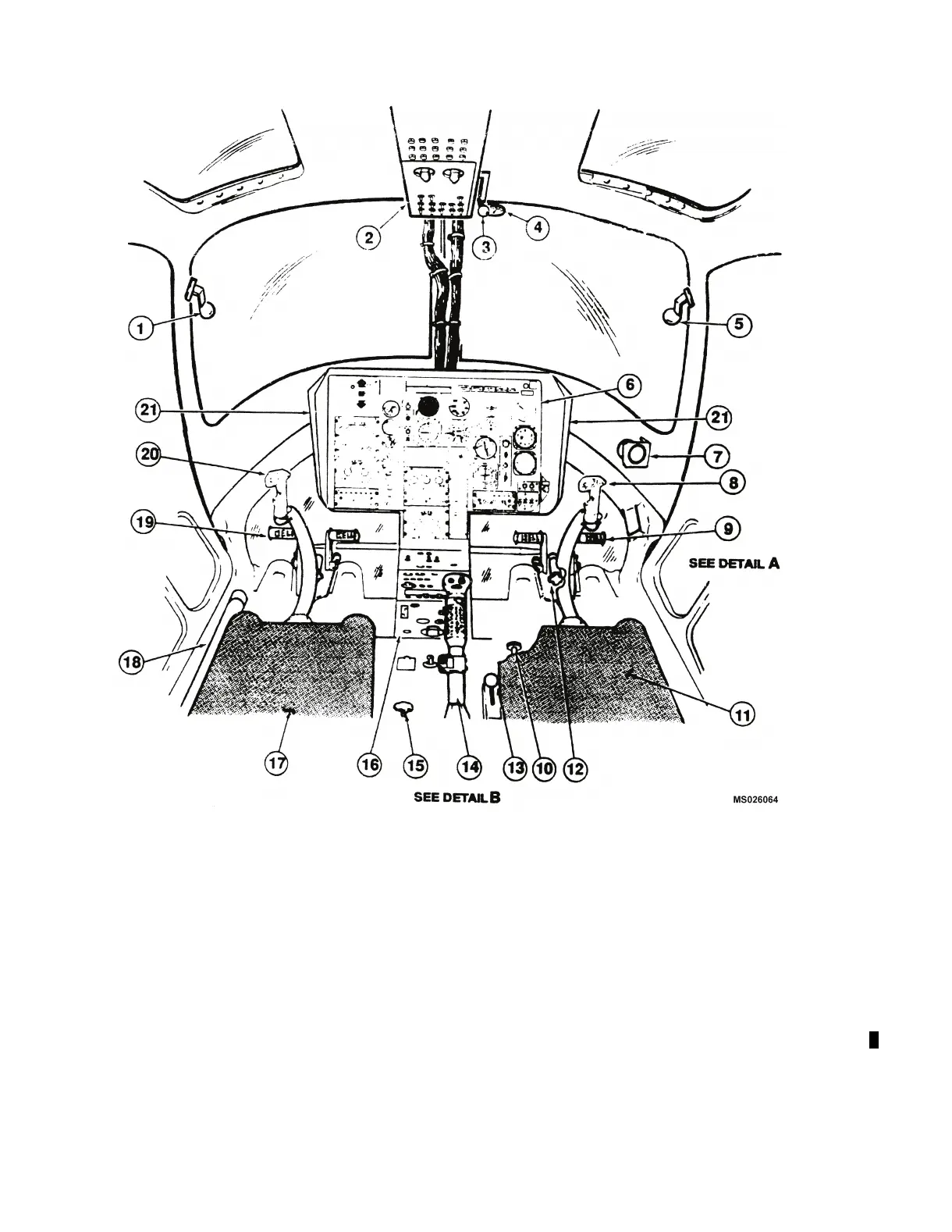

Figure 2-4. Pilot and Copilot/Observer Station Diagram (Sheet 1 of 3)
2-8 Change 14
