(Figure 2-18 Sheet 1 of 2)
Fi
ure 2-18 Sheet 2 of 2
TM 55-1520-228-10
NAV POSITION LIGHTS (NVG POS LTS)
C
SRCH/LANDING LT CONTROL
(SRCH LT CONT)
C
AMMETER(AMM)
C
FUEL QUANTITY INDICATOR (FUEL QTY)
C
DUAL TACHOMETER (DUAL TACH)
C
GAS PRODUCER TACHOMETER
(GAS PROD TACH)
C
TURBINE OUTLET TEMPERATURE
INDICATOR (TURB OUTLET TEMP)
C
ENGINE OIL TEMPERATURE INDICATOR
(ENG OIL TEMP)
C
PRIMARY DIRECTIONAL CONTROL (PRI DRI
CONTR)
C
TRANSMISSION OIL PRESSURE (XMSN OIL
PRESS)
C
CONSOLE LIGHT (CSL LT)
C
CONUS NAVIGATION (CONUS NAV)
C
ALTIMETER VIBRATOR (ALT VIB)
C
RADAR ALTIMETER (RDR ALT)
C
RADAR WARNING SYSTEM (RDR WRN)
C
GENERATOR FIELD (GEN FIELD)
GENERATOR & BUS RESET (GEN & BUS RESET)
CAUTION PANEL (CAUTION PNL LTS)
SIGNAL LIGHT (SIGNAL LT)
INSTRUMENT LIGHTS (INST LTS)
ANTI-COLLISION LIGHTS (ANTI-COLL LTS)
SRCH/LANDING LT POWER (SRCH LT PWR)
C
ENGINE OIL BYPASS (ENG OIL BYPASS)
GOVERNOR CONTROL (GOV CONT)
FUEL BOOST PUMP (FUEL PUMP)
STARTER (START ENG)
IGNITER AND AUTO RELIGHT (IGN ENG)
ENGINE ANTI-ICE (ENG DEICE)
ATTITUDE SYSTEM (ATTD TURN)
C
ATTITUDE SYSTEM (ATTD HRZN)
C
FORCE TRIM (FORCE TRIM)
HYDRAULIC BOOST SOLENOID (HYD BOOST
SOL)
INSTRUMENT CLUSTER (INST CLUSTER)
A
IFF (IFF)
ADF (ADF)
UHF (UHF)
ICS (ICS)
ARMAMENT (ARMT)
ARMAMENT POWER (ARMT PWR)
PITOT HEATER (PITOT HTR)
AUXILIARY POWER (AUX RECP)
PROXIMITY WARNING (PROX WARN)
C
LANDING LIGHTS (LDG LTS)
A
TURN AND SLIP INDICATOR (TURN & BANK
IND)
A
IFF COMPUTER (IFF CMPTR)
A

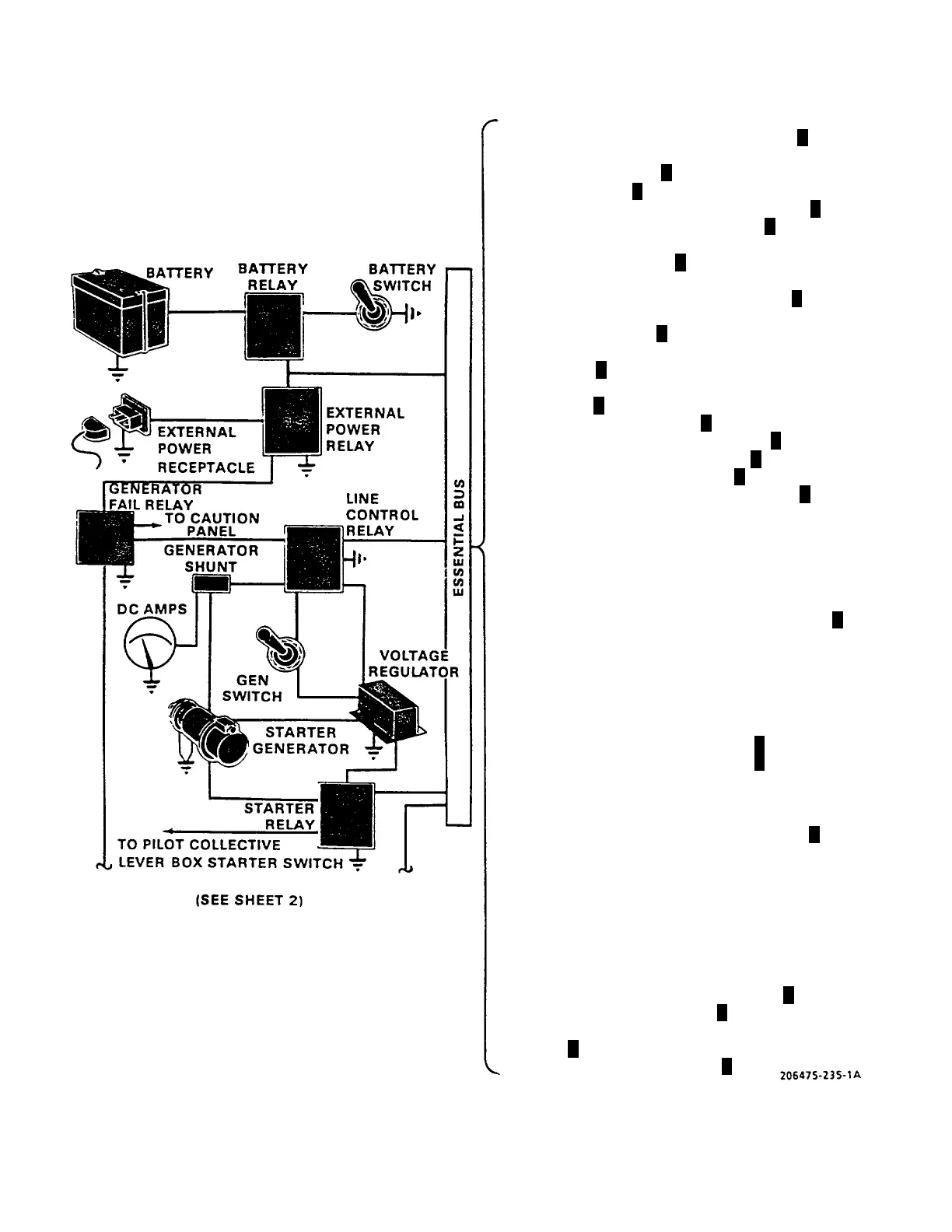

Figure 2-18. Electrical System Schematic (Sheet 1 of 2)
Change 10 2-41
