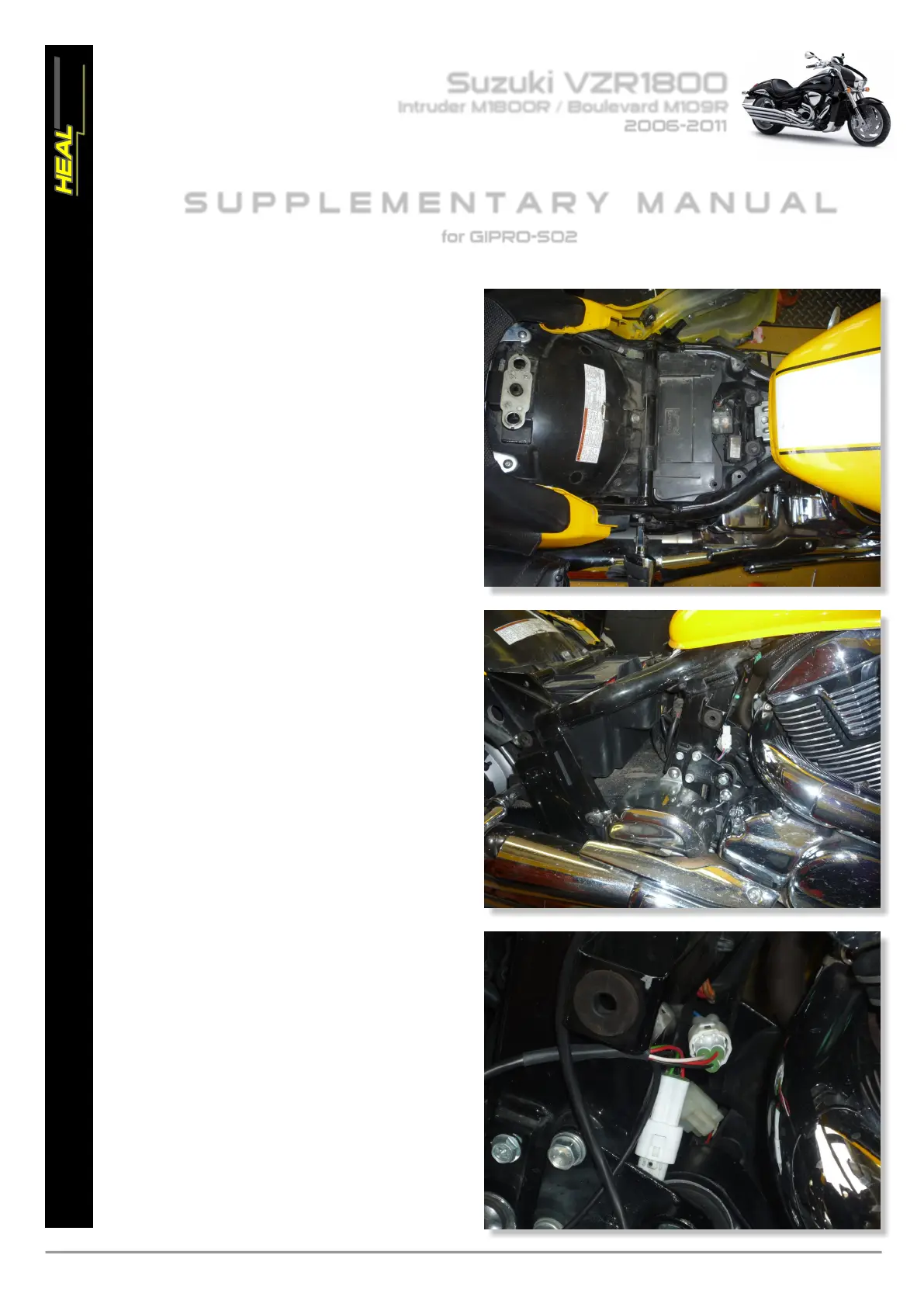

Suzuki VZR1800
Intruder M1800R / Boulevard M109R
2006-2011
Remove the main seat.
Plug ATRE connectors in-line
with the gear position sensor
connectors.
(white, 3-pole triangular connectors
at the right side
near to rear cylinder)
www.healtech-electronics.com
GIPRO WITH ATRE GEAR INDICATOR
S U P P L E M E N T A R Y M A N U A L
for GIPRO-S02
PAGE 1/2
ELECTRONICS
TECH
TECHTECH
Remove the left and right
frame covers
below the seat and fuel tank.
Lift up or remove
the fuel tank.
To Next Page
