HealTech Electronics GIPRO-S01 - Page 14

Suzuki VZR1800
Intruder M1800R / Boulevard M109R
2006-2011

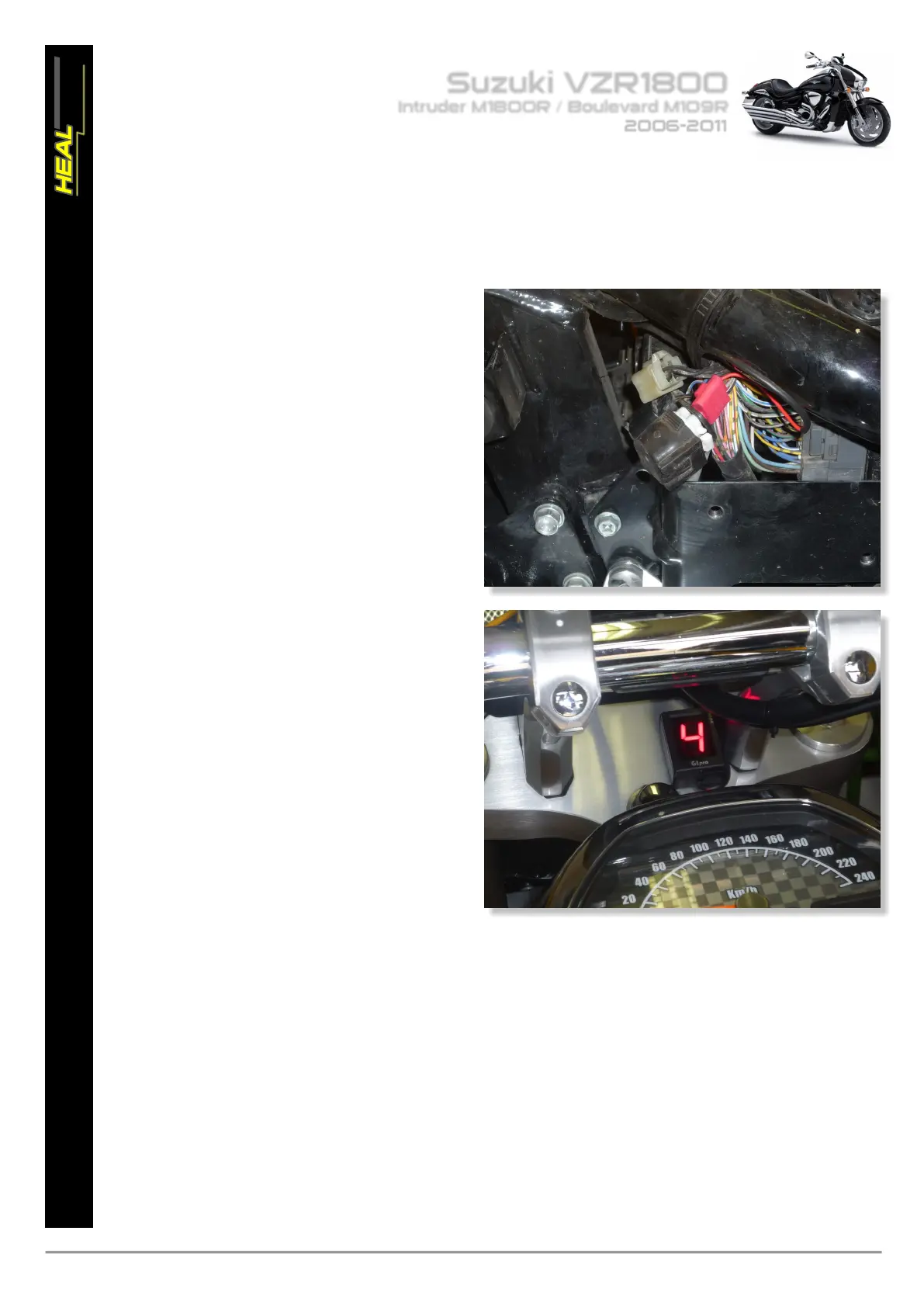

Typical position for the
gear indicator.
(tre mode: 4th gear map)
www.healtech-electronics.com
GIPRO WITH ATRE GEAR INDICATOR
PAGE 2/2
ELECTRONICS
TECH
TECHTECH
Connect ATRE red wire to
orange/green wire of
diagnostic system connector.
(white, 6-pole connector with black cap
at the left side)
