Hearth & Home Technologies • SMART-BATT-II Remote Control Instructions • 100-909 Rev. i • 5/12
Figure 6. Millivolt with Receiver

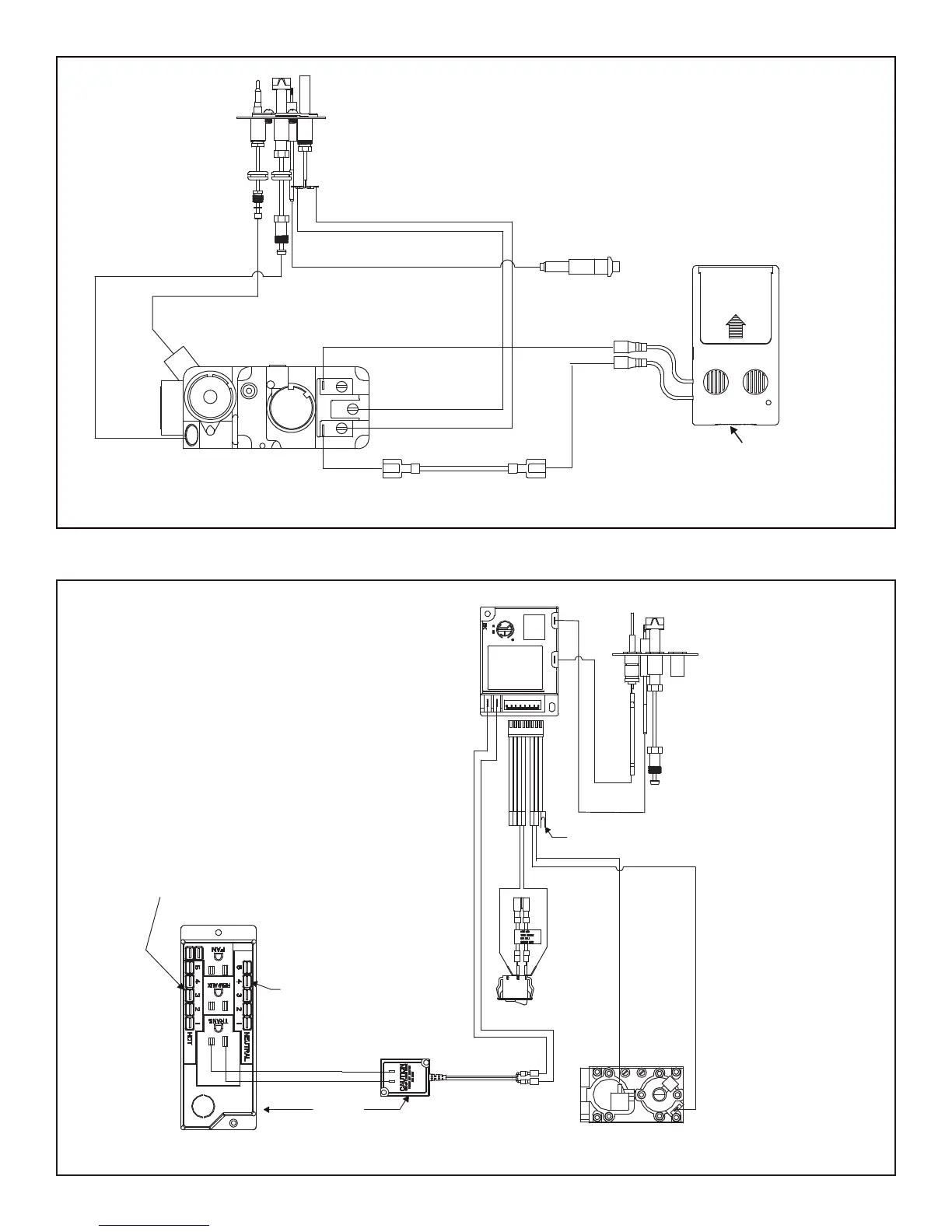

Figure 7. Intermittent Pilot Ignition (IPI) Wiring Diagram
C. Wiring Intermittent Pilot Ignition (IPI) with Rocker Switch
REMOTE RECEIVER
LEARN
ON/OFF REMOTE SWITCH
PIEZO
RED
WHITE
VALVE
PILOT
THERMOCOUPLE
WIRE
TERMINALS
IGNITION MODULE
3 VAC
TRANSFORMER
3 VAC
GRN
ORG
INTERMITTENT
PILOT
IGNITOR
ORG
WHT
V
ALVE
PIGGYBACK
ON/OFF SWITCH
WHITE WIRE CAN BE
PLUGGED INTO ANY
OF #1-#5 LOCATIONS
ON THE NEUTRAL SIDE
BLACK WIRE CAN BE
PLUGGED INTO ANY OF
#1 - #5 LOCATIONS
ON THE HOT SIDE
BRN
BRN
PLUG IN
GROUND TO
FIREPLACE
CHASSIS
