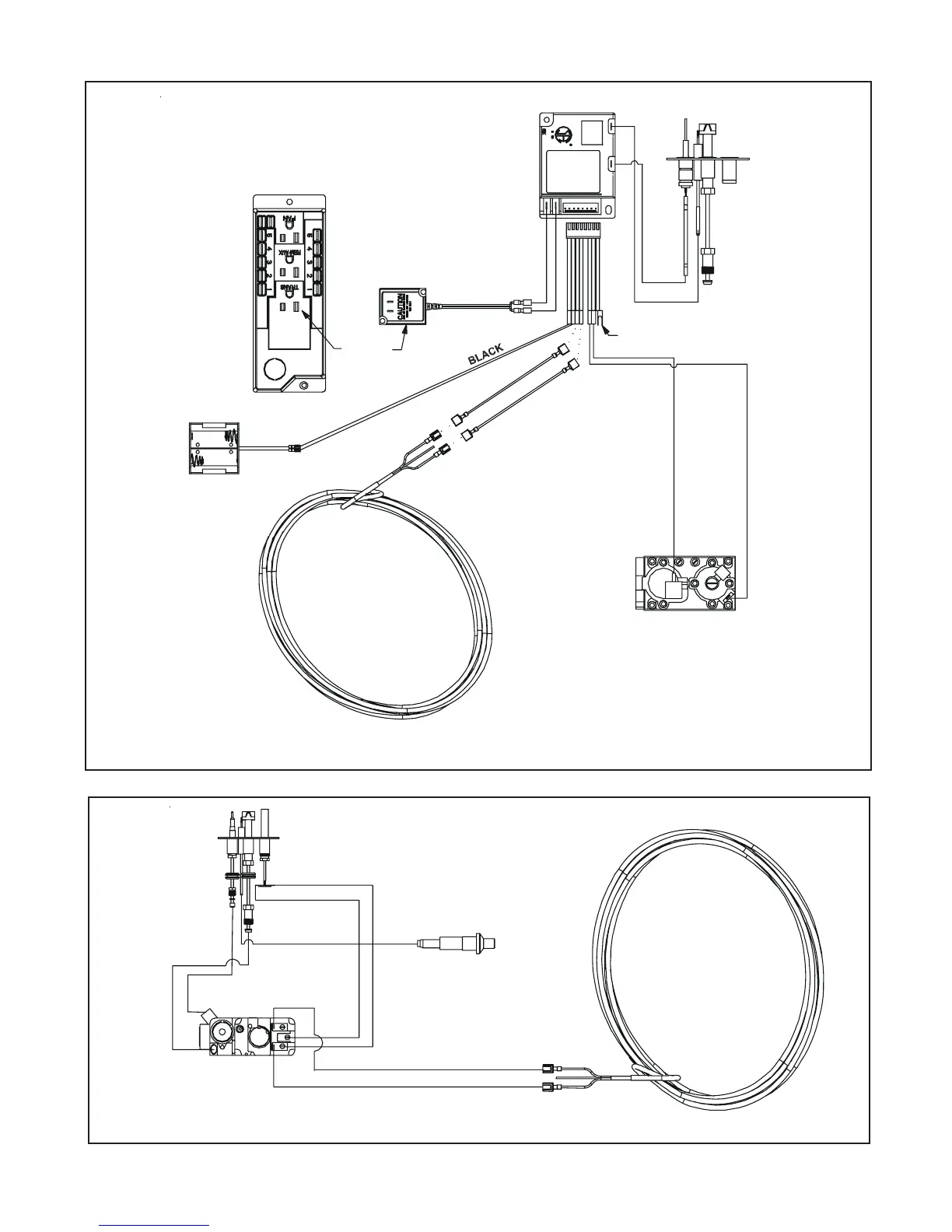

Figure 7. Intermittent Pilot Ignition (IPI) Wiring Diagram
TRANSFORMER
3 VAC
PLUG IN
R
E
D
BATTERY PACK
THERMOSTAT
WIRE ASSEMBLY
JUMPER WIRE
(TO BROWN)
ORANGE
GREEN
VALVE
GROUND TO
FIREPLACE
CHASSIS
WHITE
ORANGE
IGNITION MODULE 3 VAC INTERMITTENT PILOT IGNITOR
HOT
NEUTRAL
I
S
Figure 8. Standing Pilot Ignition Wiring Diagram
THERMOSTAT
WIRE ASSEMBLY
PIEZO
WHITE
RED
VALVE
PILOT
THERMOCOUPLE
