Heartland WaveReader G6 Linking/Deleting Instructions

WaveReader to WaveController
Page 12 of 13
Linking/Deleting Instructions
DCN:
DOC-WaveControllerLink
Release Date
Feb 6, 2012
Proprietary Notice: This document and the information contained herein is the property of Heartland Payment Systems. This document is provided for
customer information and evaluation purposes only, and does not represent any transfer of intellectual property to the customer. No part of the document
can be reproduced or distributed to third parties without the express written permission of Heartland Payment Systems.

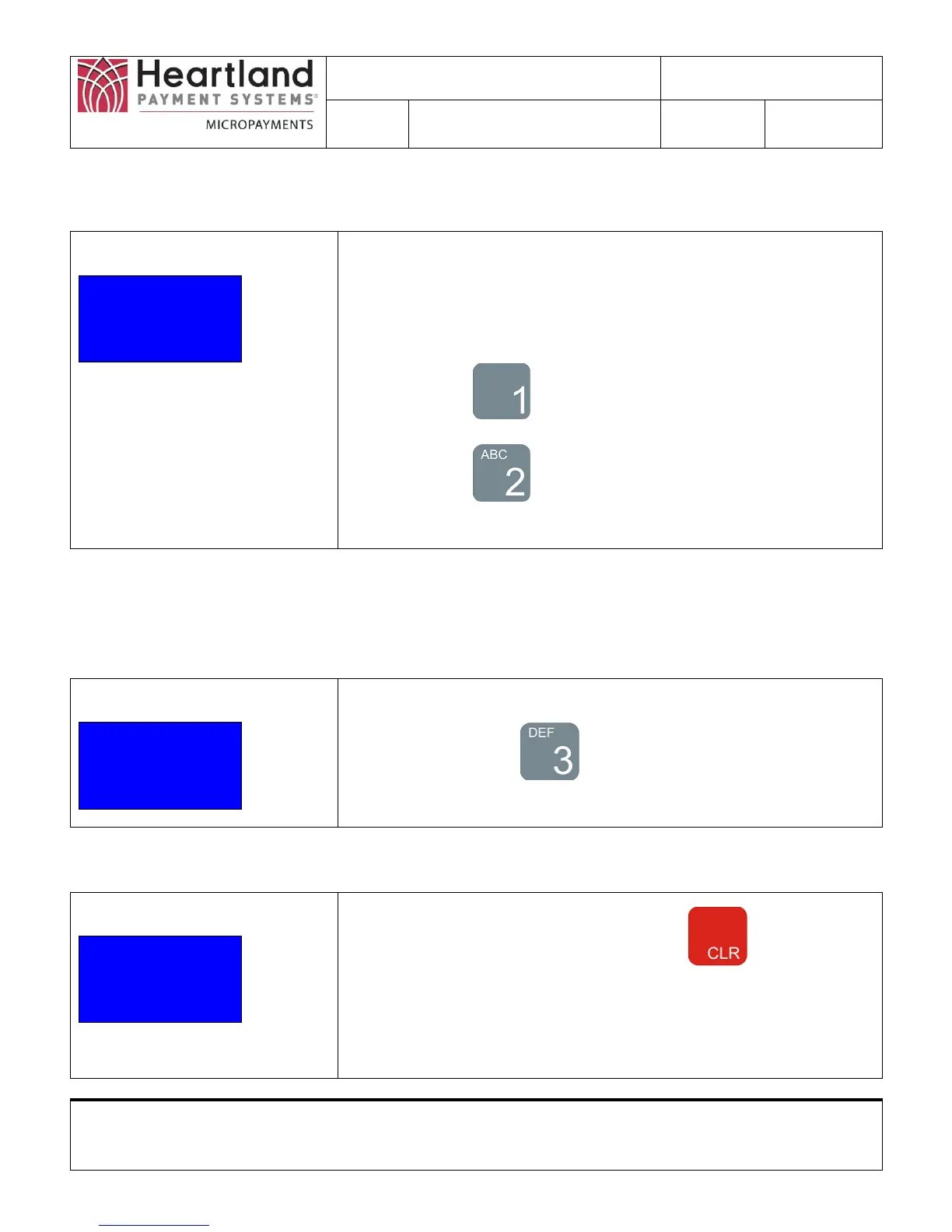

Step 3: View/Delete Machine Information
Machine Information
001 12AB
1) Get Config
2) Delete Link
 Top of the screen shows the Machine Name and the Zigbee
Address associated with it.
 If there is no Zigbee address associated with the name,
NO_ZB will appear next to the Reader Name
 Press the Button to get Reader Configuration. Note:
Not currently available.
 Press the Button to delete the link between the
Machine Name and Zigbee Address.
Step 4: Restart Step 2 if more Reader and Zigbee Links will be deleted
Step 5: Save Changes
Select Machine Name
Machine Name
1) ID: 001
2) Next Name
3) Save All
 If a Reader and Zigbee Link has been deleted, save the change
by Pressing the Button
Step 6: Exit out of Configuration Mode.
Status Screen
IP: Connected
XB: Idle
HP: Idle
SH: Idle
 When complete, continue to Press the Button to return
to the Status Screen. This will exit Configuration Mode
 Now when the WaveController responds to the WaveReaders,
the WaveReaders will display Insert Card
