Installation
12
13

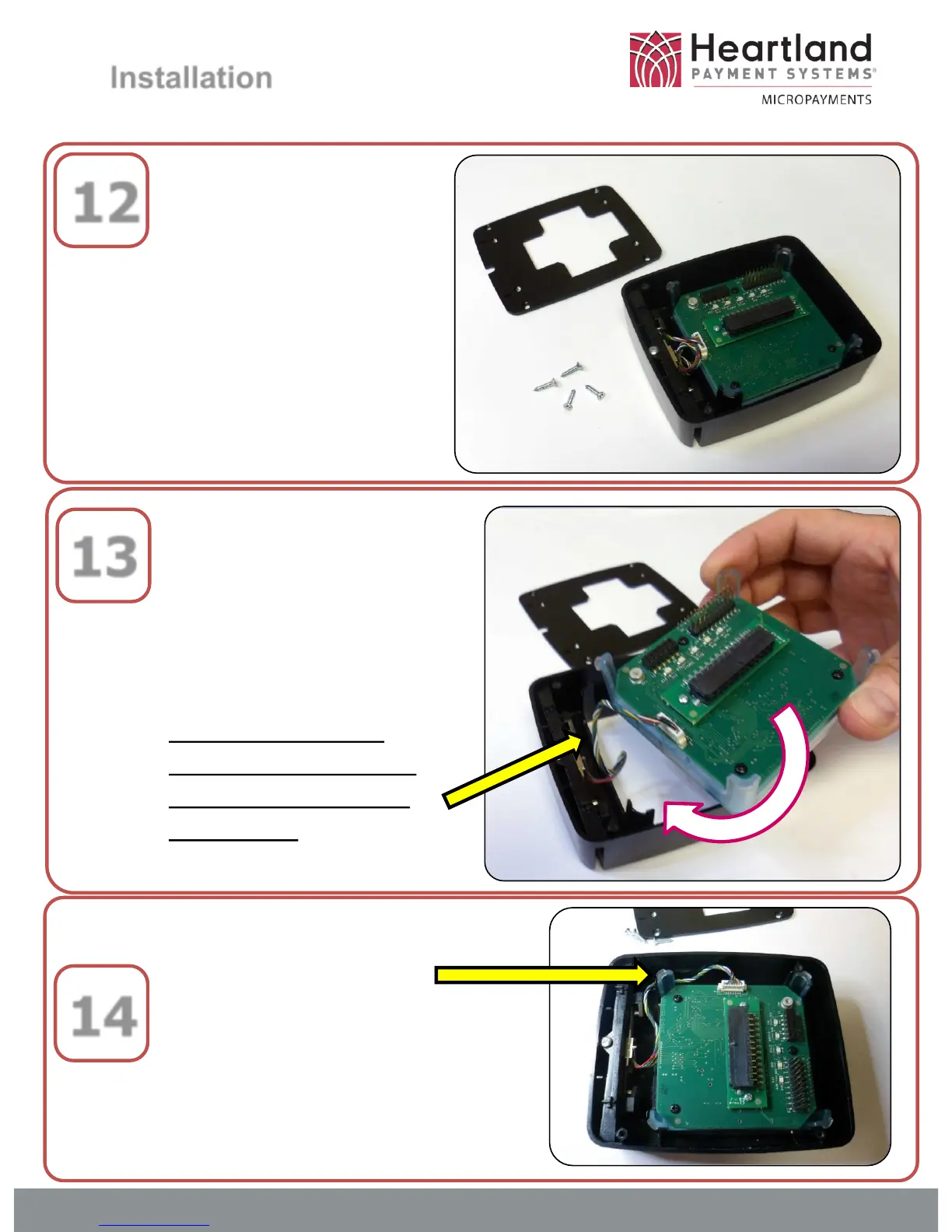

The center portion of the
SPIN reader can be lifted
up and rotated to match
the desired Card-Swipe
orientation, and placed
back into the recess.
Make sure that the
swipe-bar cable is not
pinched between the
two pieces.
14
www.heartlandMicroPayments.com
Lift back-plate off
of the SPIN reader,
and place it with
the screws.
Before re-attaching
the back plate, route
the swipe-bar cable to
the outside of the
center guide-posts.
DOC-WR-SPIN-INST
