Heat Design E600 - Specifications; Replacing the Plug

HYCD-1500T
3
1 / SPECIFICATIONS
 Digital LCD display
 Temperature control by digital display
 Clock
 Weekly schedule
 2 modes :
o Manual
o Automatic with weekly presetting
- 24h programmer, custom setting.
- 9 different daily presets
 Frost protection function - automatically switches on if temperature drops below 7°
to protect pipes from frost
Model
Power
Voltage
Number of
elements
Insulation
class
Heat Design – E600
600W
AC 230 50Hz
4
Class II
Heat Design – E900
900W
AC 230 50Hz
6
Class II
Heat Design – E1200
1200W
AC 230 50Hz
8
Class II
Heat Design – E1500
1500W
AC 230 50Hz
10
Class II
Heat Design – E1800
1800W
AC 230 50Hz
12
Class II
ONLY FOR USE INDOORS

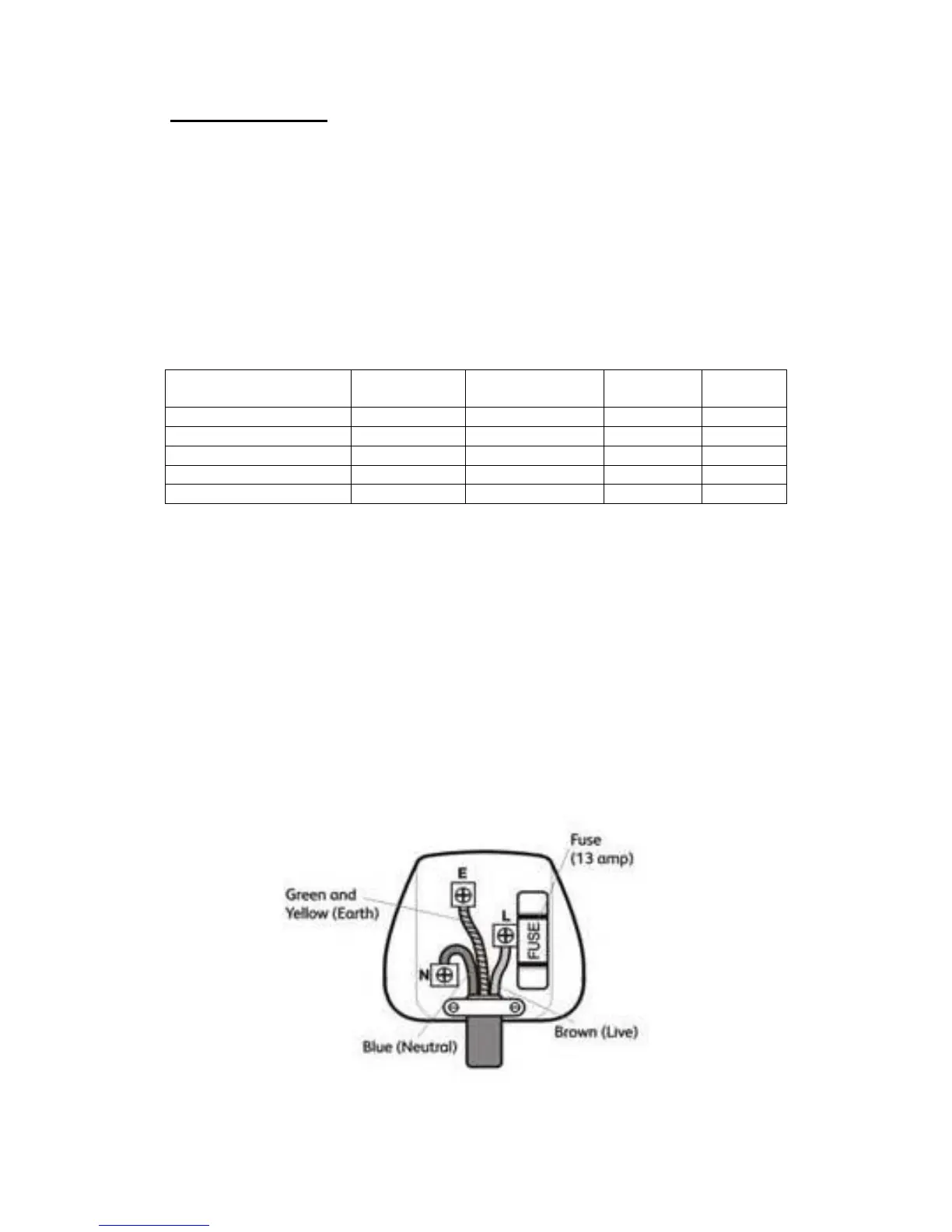

Replacing the Plug
If the Plug is damaged or requires replacement, follow the wiring instructions supplied with
the new Plug.
The Green and Yellow wire must be connected to the terminal marked with the Earth symbol
or coloured Green & Yellow.
The Brown wire must be connected to the terminal marked with the letter L or coloured Red.
The Blue wire must be connected to the terminal marker with the letter N or coloured Black.
A 13amp Plug to BS 1363 must be fitted with a 13amp fuse to BS 1362.
