Heat Design E600 - How to install the device

HYCD-1500T
4
How to install the device

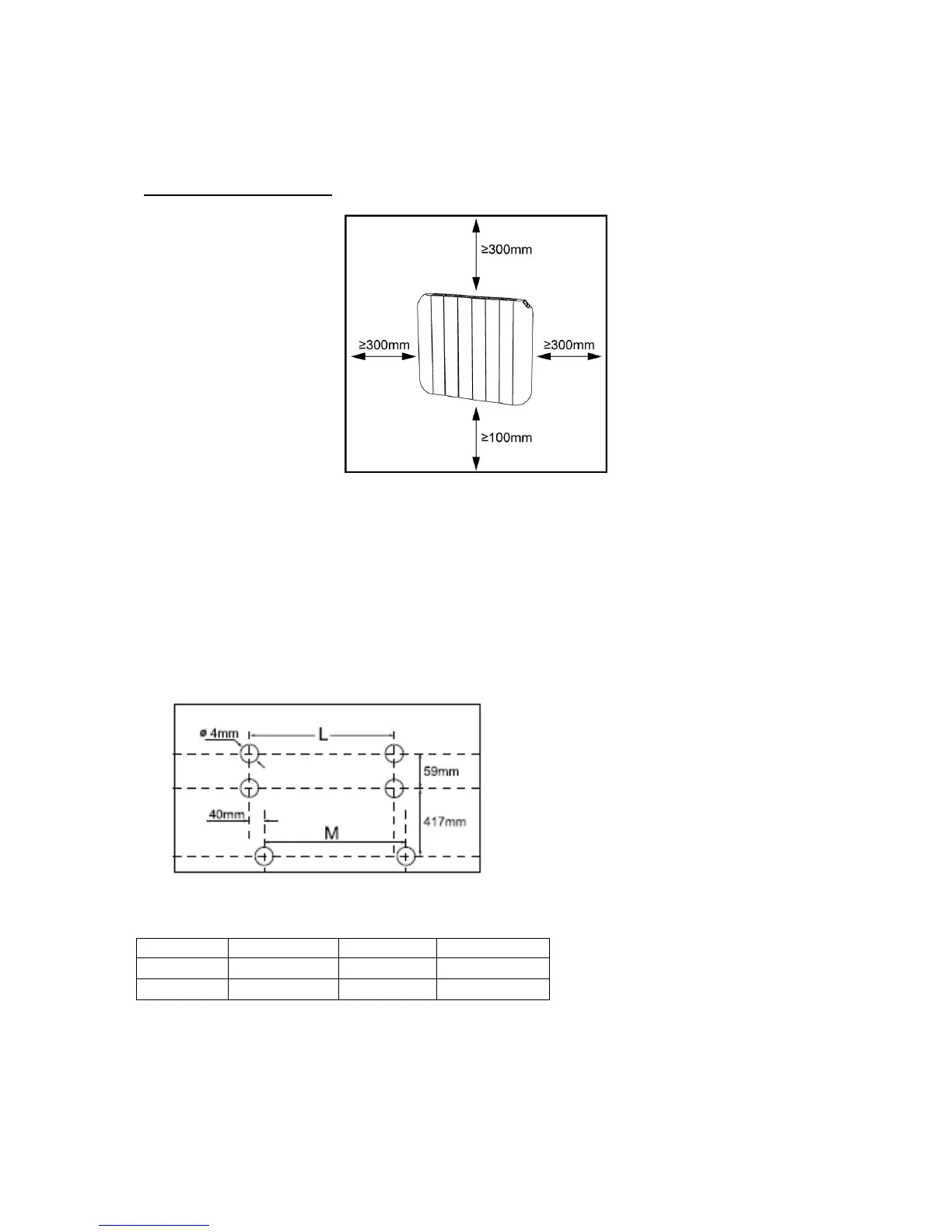

Make sure that the distance from walls and objects is respected.
Figure 1a
1 – Drill holes in the wall by following the steps in Figure 1. Make sure they are all correct.
Distance L and M between the fixation points.
Radiator
900W
1500W
1800W
L (mm)
400
560
720
M (mm)
320
480
640
