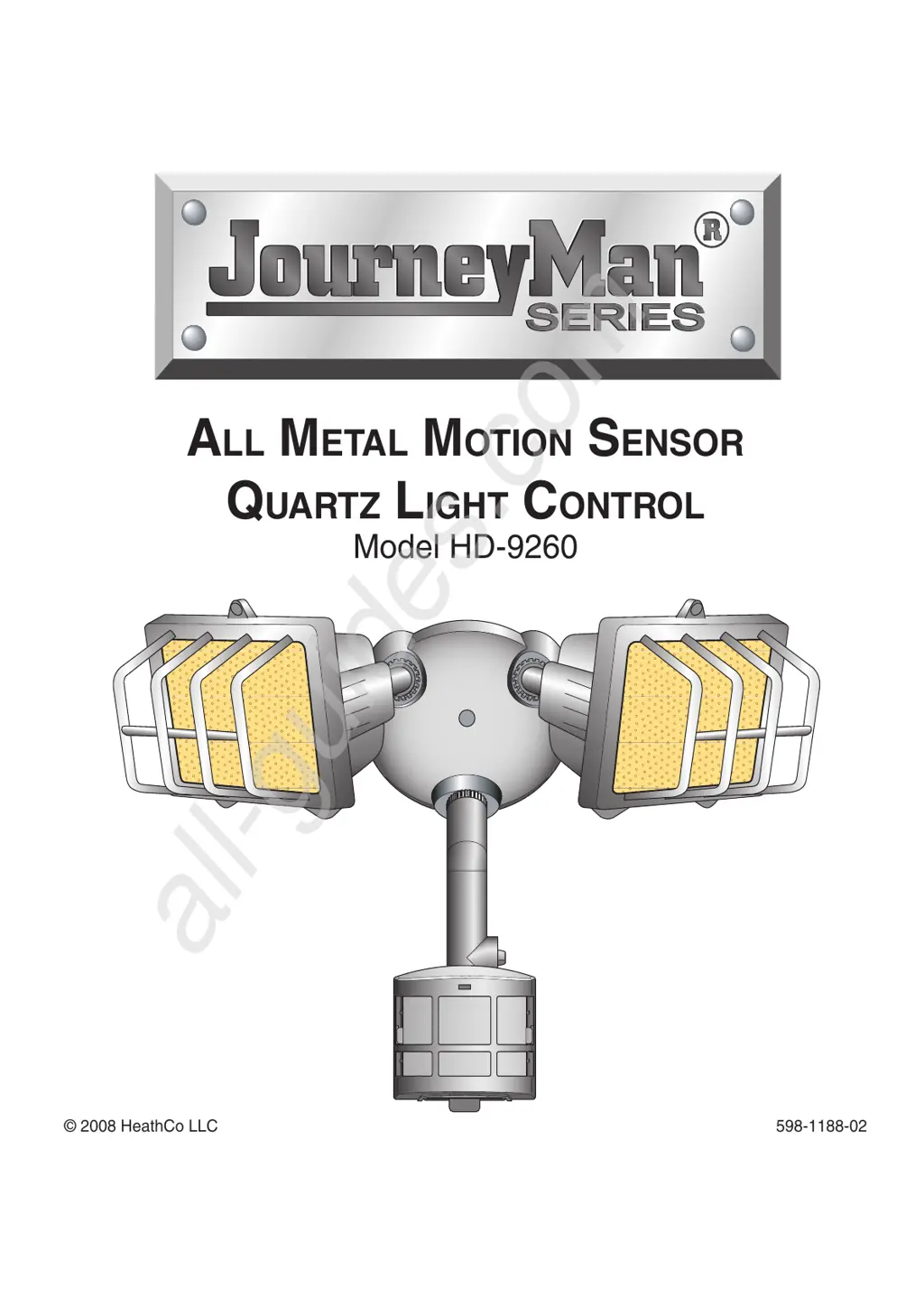

All MetAl Motion SenSor
QuArtz light Control
Model HD-9260
© 2008 HeathCo LLC 598-1188-02
All manuals and user guides at all-guides.com
all-guides.com

Questions and Answers

  • G
    grant34Aug 6, 2025
    Why do my HeathCo Outdoor Lights come on for no apparent reason?
    • A
      Ashley WarrenAug 6, 2025
      Your HeathCo outdoor lights might be activating without a clear cause because the sensor is picking up movement from small animals or automobile traffic. Try re-aiming the sensor or using a lens shield to mitigate this. Also, the range might be set too high, so try reducing the range or turning off Range Boost.
  • G
    greenedavidAug 12, 2025
    What to do if my HeathCo JourneyMan Outdoor Light lights will not come on?
    • O
      obrownAug 12, 2025
      If your HeathCo outdoor lights aren't turning on, there are several potential reasons. First, ensure that the light switch is turned on. Next, check if the flood light is loose or burned out, and tighten or replace it if necessary. Also, verify that the fuse hasn't blown or the circuit breaker isn't turned off; replace the fuse or turn the circuit breaker on if needed. If it's daytime, the daylight turnoff feature might be in effect, so recheck after dark. For new installations, inspect the circuit wiring. Finally, ensure the sensor can detect objects by re-aiming it to cover the desired area and increasing the Range Boost if necessary.
  • J
    Joshua McdonaldAug 18, 2025
    Why do my HeathCo Outdoor Lights stay on continuously?
    • A
      aprildaughertyAug 18, 2025
      If your HeathCo outdoor lights remain on constantly, it could be because a lamp is positioned too close to the sensor or is pointed at objects that trigger the sensor. Try aiming the lamp away from the sensor or those objects. Alternatively, the control might be directed at a heat source like an air vent, dryer vent, or a brightly-painted heat-reflective surface. In this case, re-aim the sensor, use a lens shield, and turn Range Boost off.
  • M
    Melissa LeeAug 25, 2025
    How to fix HeathCo JourneyMan that comes on in daylight?
    • D
      Duane HollandAug 26, 2025
      If your HeathCo outdoor light is activating during daylight hours, it might be because the control is installed in a relatively dark location. Try relocating the light fixture to a junction box with increased daylight exposure. Also, ensure that the control is not in Test mode; set the control switch to an ON-TIME position.
  • C
    Christopher LeAug 30, 2025
    What to do if my HeathCo Outdoor Lights flash on and off?
    • M
      Michael RobertsonAug 30, 2025
      If your HeathCo outdoor lights are flashing on and off, it could be due to several reasons. Heat or light from the lamps may be turning the light control on and off, so try aiming the lamps away from the sensor and turning Range Boost off. Reflected heat from other objects might also be triggering the sensor; in that case, re-aim the sensor and turn Range Boost off. The control may also be warming up, in which case the flashing is normal, and you should wait one minute for the sensor to warm up. Finally, ensure the control is not in Test mode and set the control switch to an ON-TIME position.
