Page 16

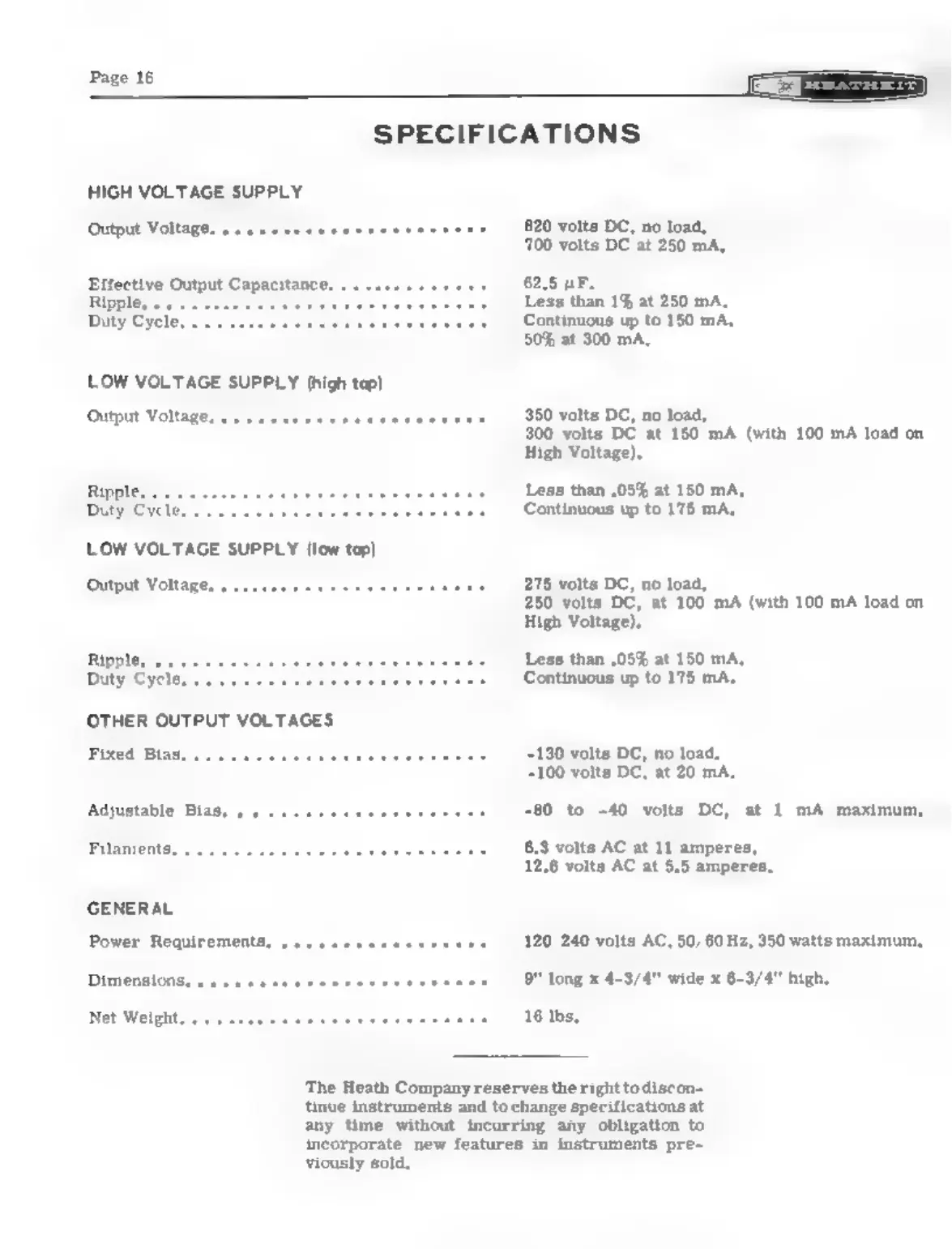

SPECIFICATIONS
HIGH VOLTAGE SUPPLY
Output
Voltage.
sss
eeeeeerererececcees
Effective Output Capacitance,
Ripple...
Duty Cycle,
LOW VOLTAGE SUPPLY (high tap)
Output Voltage... seers eeeeeeeeeeees
LOW VOLTAGE SUPPLY (low tap)
Output Voltage. . ...
Ripple, . «
Duty Cycle
OTHER OUTPUT VOLTAGES
Fixed Bias,
Adjustable Bias. . .
GENERAL
Power Requirements, .....+++seseeeeee
Dimensions, ....+eeeseeeeeeeceeeeees
Net Weight.
820 volts DC, no load,
700 volts DC at 250 mA,
62.5 uF.
Less than 1% at 250 mA,
Continuous up to 150 mA,
50% at 300 mA,
350 volts DC, no load,
300 volts DC at 150 mA (with 100 mA load on
High Voltage).
Less than ,05% at 150 mA,
Continuous up to 175 mA,
275 volts DC, no load,
250 volts DC, at 100 mA (with 100 mA load on
High Voltage),
Less than .05% at 150 mA,
Continuous up to 175 mA,
-130 volts DC, no load,
-100 volts DC, at 20 mA,
-80 to -40 volts DC, at 1 mA maximum,
6,3 volts AC at 11 amperes,
12.6 volts AC at 5.5 amperes,
120/240 volts AC, 50/60 Hz, 350 watts maximum,
9" long x 4-3/4" wide x 6-3/4" high,
16 Ibs,
The Heath Company reserves the right todiscon-
tinue instruments and to change specifications at
any time without incurring any obligation to
incorporate new features in instruments pre-
viously sold,
