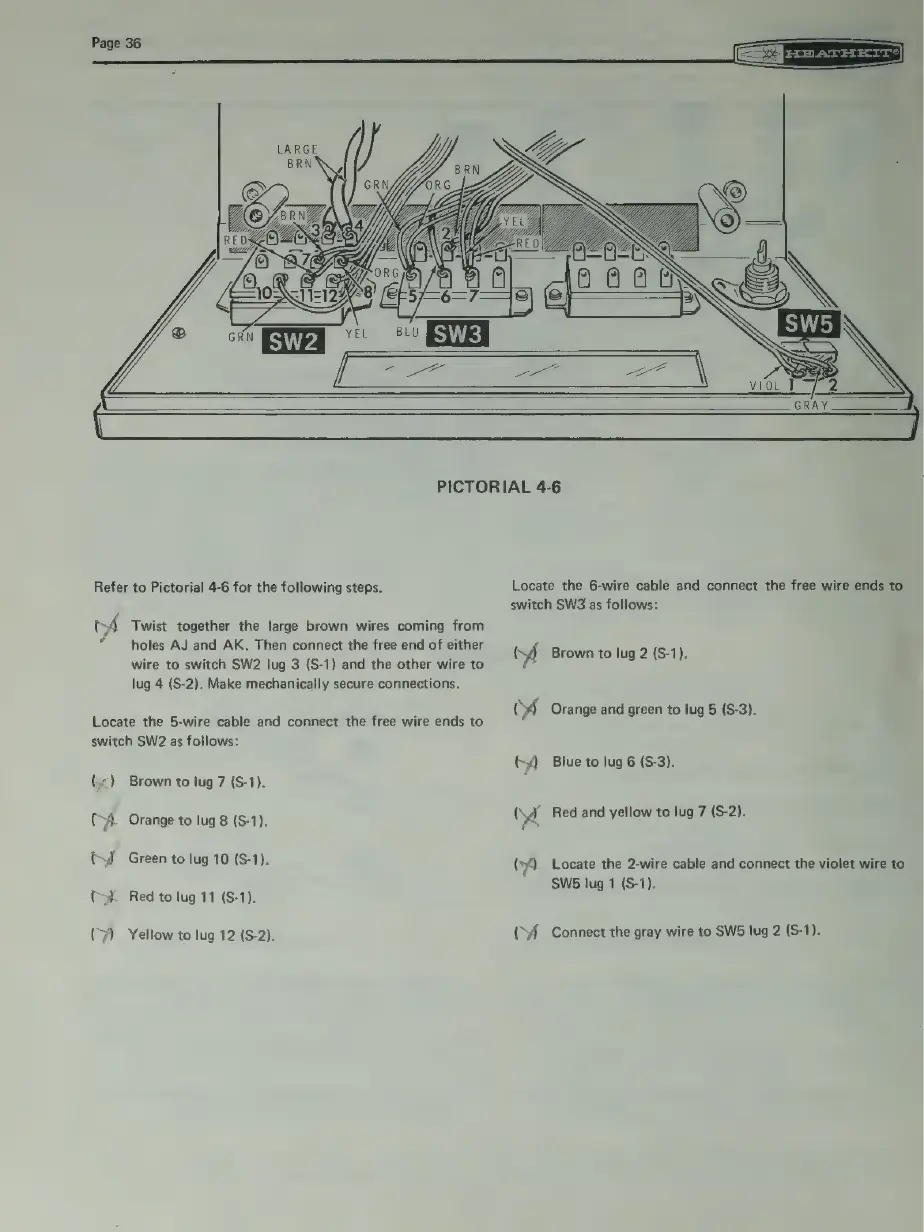

PICTORIAL

4-6

Refer

to

Pictorial

4-6

for

the

following

steps.

A

Twist

together

the

large

brown

wires

coming

from

“holes

AJ

and

AK.

Then

connect

the

free

end

of

either

wire

to

switch

SW2

lug

3

(S-1)

and

the

other

wire

to

lug

4

(S-2).

Make

mechanically

secure

connections.

Locate

the

5-wire

cable

and

connect

the

free

wire

ends

to

switch

SW2

as

follows:

(.<)

Brown

to

lug

7

(S-1).

(

yp

Orange

to

lug

8

(S-1).

(SJ

Green

to

lug

10

(S-1).

(3.

Red

to

lug

11

(S-1).

(7)

Yellow

to

lug

12

(S-2).

Locate

the

6-wire

cable

and

connect

the

free

wire

ends

to

switch

SW3

as

follows:

oe)

Brown

to

lug

2

(S-1).

4

Orange

and

green

to

lug

5

(S-3).

9

Blue

to

lug

6

(S-3).

(\J

Red

and

yellow

to

lug

7

(S-2).

(SA

Locate

the

2-wire

cable

and

connect

the

violet

wire

to

~

SW5

lug

1

(S-1).

(“4

Connect

the

gray

wire

to

SW5

lug

2

(S-1

).
