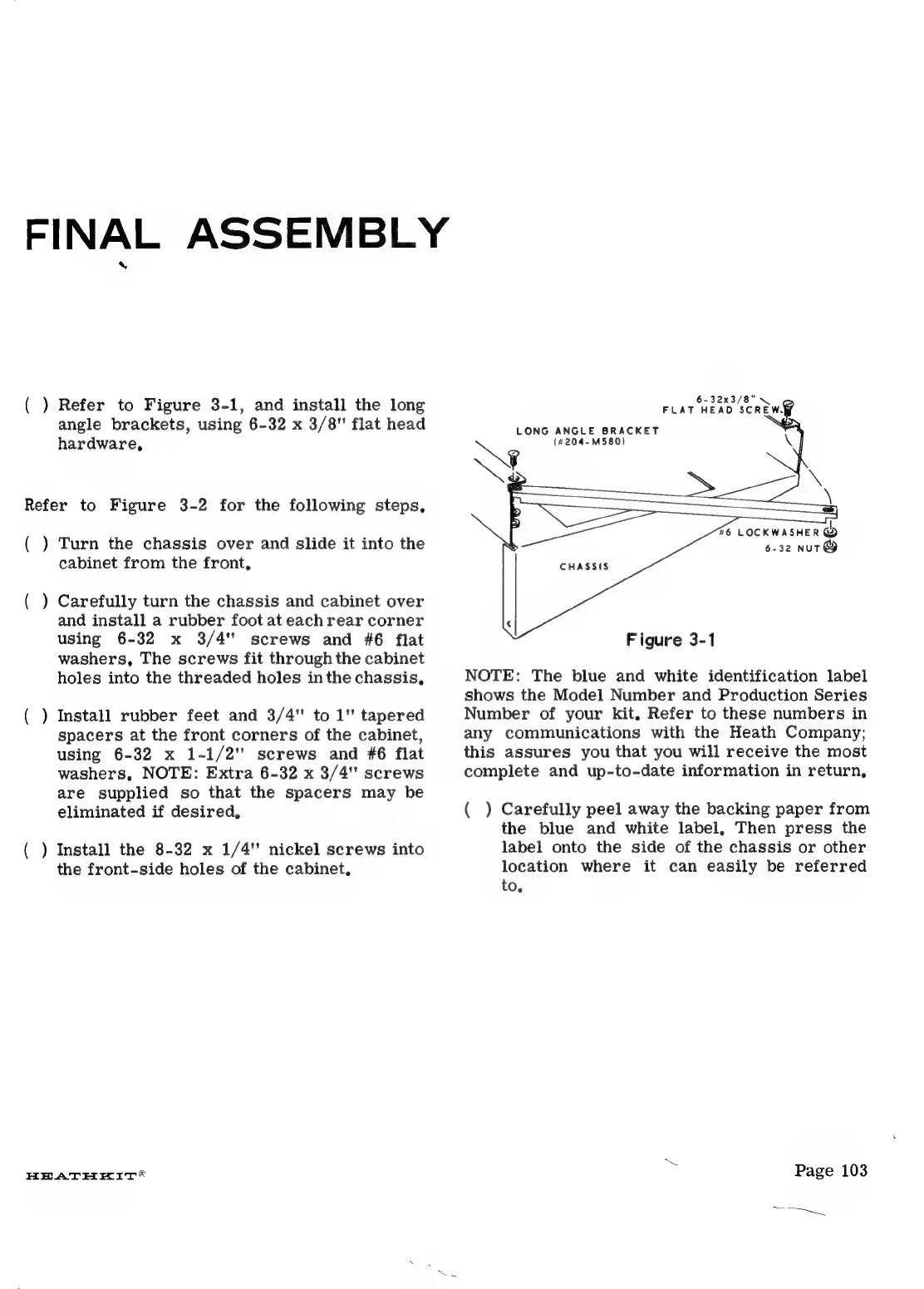

FINAL
ASSEMBLY
(
)
Refer
to
Figure
3-1,
and
install
the
long
angle
brackets,
using
6-32
x
3/8"
flat
head
hardware,
Refer
to
Figure
3-2
for
the
following
steps,
{
)
Turn
the
chassis
over
and
slide
it
into
the
cabinet
from
the
front,
—
—
Carefully
turn
the
chassis
and
cabinet
over
and
install
a
rubber
foot
at
each
rear
corner
using
6-32
x
3/4"
screws
and
#6
flat
washers,
The
screws
fit
through
the
cabinet
holes
into
the
threaded
holes
inthe
chassis,
Install
rubber
feet
and
3/4"
to
1"
tapered
spacers
at
the
front
corners
of
the
cabinet,
using
6-32
x
1-1/2"
screws
and
#6
flat
washers,
NOTE:
Extra
6-32
x
3/4"
screws
are
supplied
so
that
the
spacers
may
be
eliminated
if
desired,
—
—
Install
the
8-32
x
1/4"
nickel
screws
into
the
front-side
holes
of
the
cabinet,
—
~—
HHEATHEIT®
6-32x3/8"~
FLAT HEAD
SCREW,
LONG
ANGLE
BRACKET
(#204-M580}
\
46
LOCKWASHER
©
6-32
NUT@
Figure
3-1
NOTE:
The
blue
and
white
identification
label
shows
the
Model
Number
and
Production
Series
Number
of
your
kit,
Refer
to
these
numbers
in
any
communications
with
the
Heath
Company;
this
assures
you
that
you
will
receive
the
most
complete
and
up-to-date
information
in
return,
(_
)
Carefully
peel
away
the
backing
paper
from
the
blue
and
white
label,
Then
press
the
label
onto
the
side
of
the
chassis
or
other
location
where
it
can
easily
be
referred
to,
Page
103
a
