oo AC OUTLET
| ALC ANT
\ RELAY
TO LINE TO ANTENNA OR
RELAY
TRANSMITTER
$B-200
LINEAR AMPLIFIER
EXTERNAL ANTENNA
HBATHEIT
ANTENNA
RF (INPUT
$B-401 TRANSMITTER
CONNECTED TO HEATHKIT
$B8-200 LINEAR AMPLIFIER

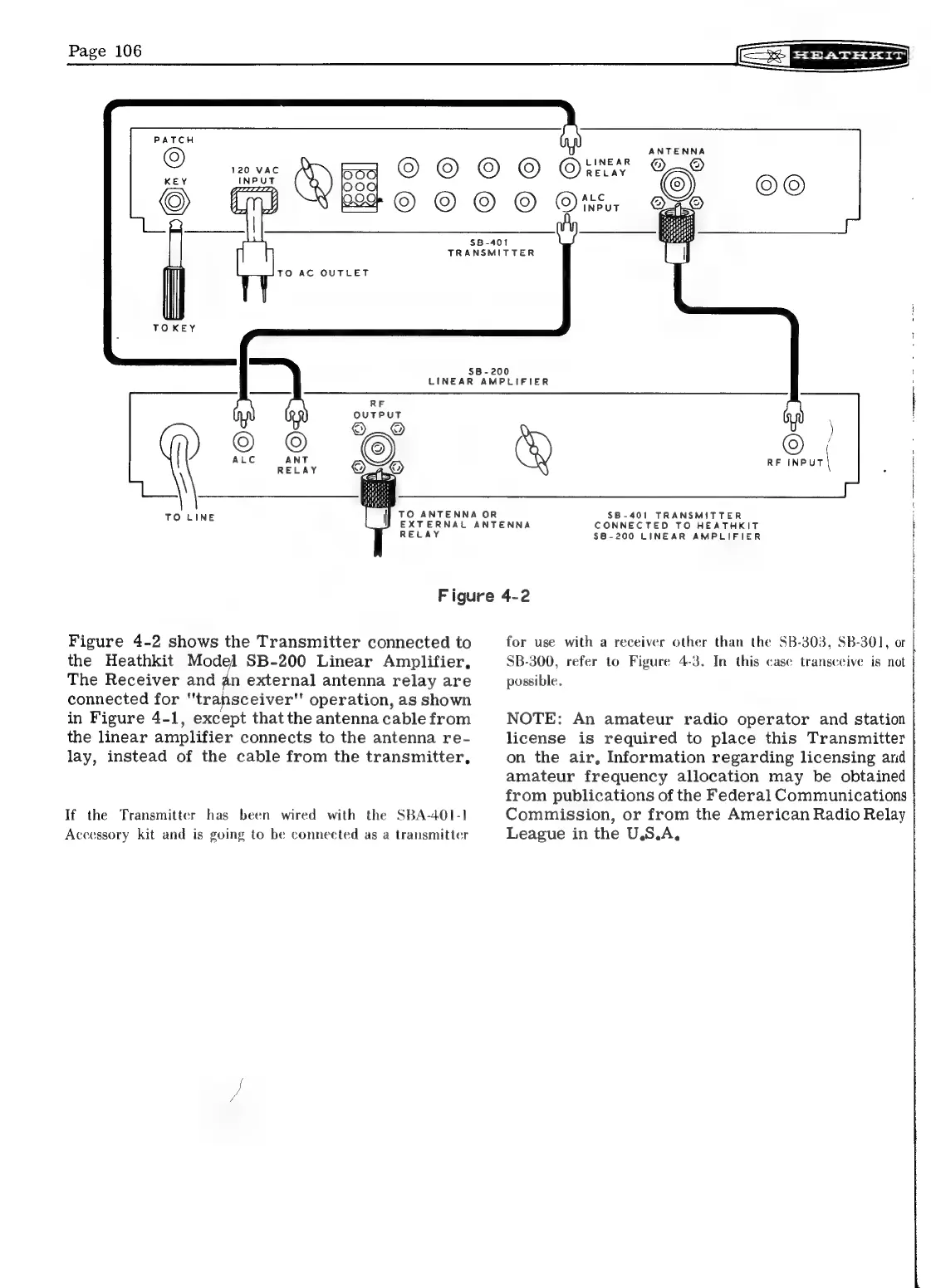

Figure 4-2
Figure 4-2 shows the Transmitter connected to
the Heathkit Model SB-200 Linear Amplifier,
The Receiver and an external antenna relay are
connected for "transceiver" operation, as shown
in Figure 4-1, except that the antenna cable from
the linear amplifier connects to the antenna re-
lay, instead of the cable from the transmitter,
SBA-4O1-1
Accessory kit and is going to be connected as a transmitter
If the Transmitter has been wired with the
for use with a receiver other than the SB-303, SB-301, or
SB-300, refer to Figure 4-3. In this case transccive is not
possible.
NOTE: An amateur radio operator and station
license is required to place this Transmitter
on the air, Information regarding licensing and
amateur frequency allocation may be obtained
from publications of the Federal Communications
Commission, or from the American Radio Relay
League in the U.S.A,
