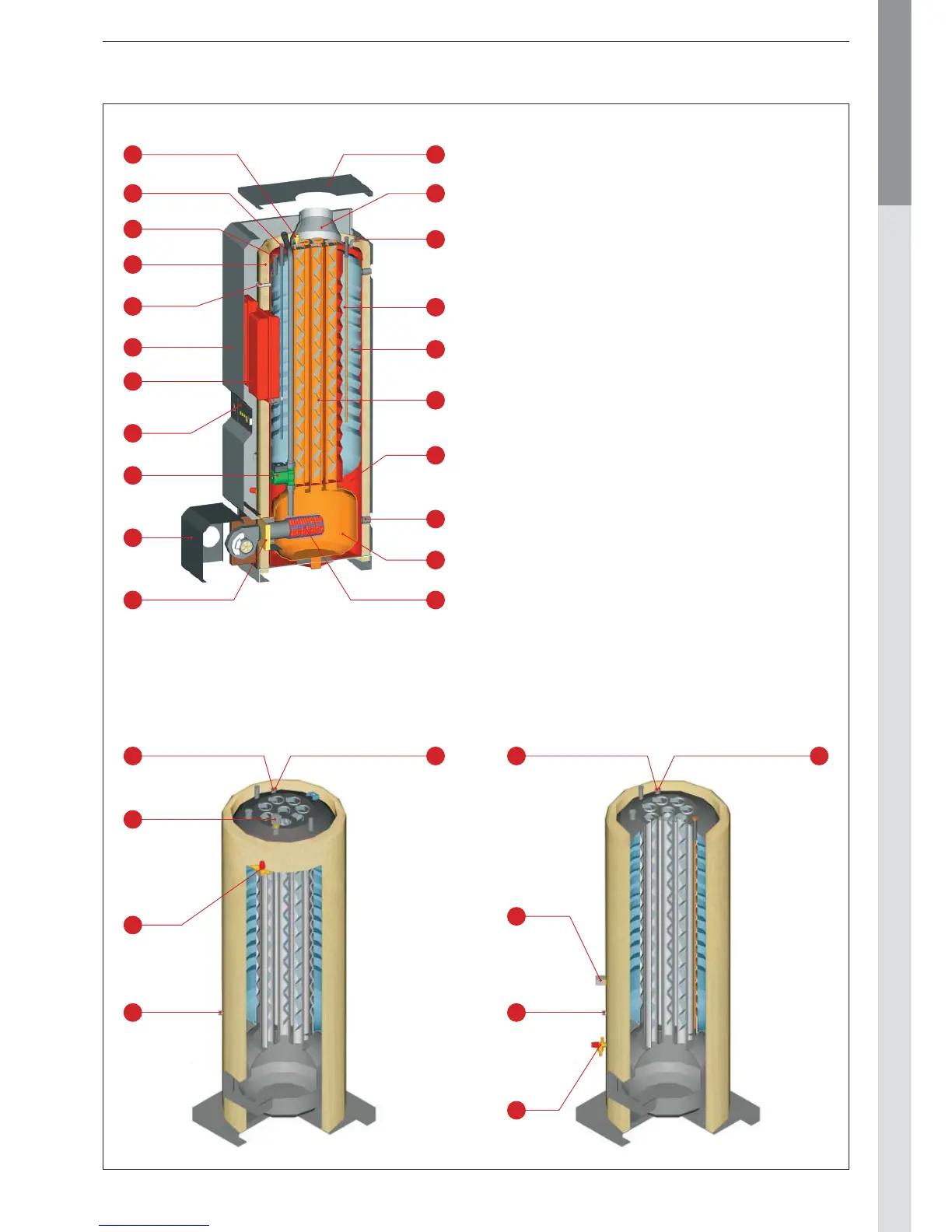

DESCRIPTION
Safety features of the HeatMaster
®
60 N Safety features of the HeatMaster
®
70 N and 100 N
1. Automatic air vent
2. Domestic cold water inlet
3. Brass pocket
4. Polyurethane foam insulation
5. Heating circuit filling valve with removable hose and
non-return valve
6. Casing front panel
7. P r i m a r y e x p a n s i o n v e s s e l
8. Control panel
9. Boiler shunt pump
10. Burner cover
11. Burner chamber plate insulation
12. To p ca sing
13. Flue reduction collar
14. Hea ting fl ow
15. Domestic hot water outlet
16. Stainlees steel Tank-in-Tank hot water store
17. Flue pipes and turbulators
18. Primary heating circuit
19. Hea tin g re tu rn
20. Combustion chamber
21. Burner
A. Thermal reset high limit thermostat
B. Manual reset high limit thermostat
C. Low water pressure switch
D. Primary safety valve
E. Control thermostat
1
2
3
4
8
12
19
13
14
17
18
6
5
7
9
10
11
20
21
16
15
A
C
D
E
B A
C
D
E
B
