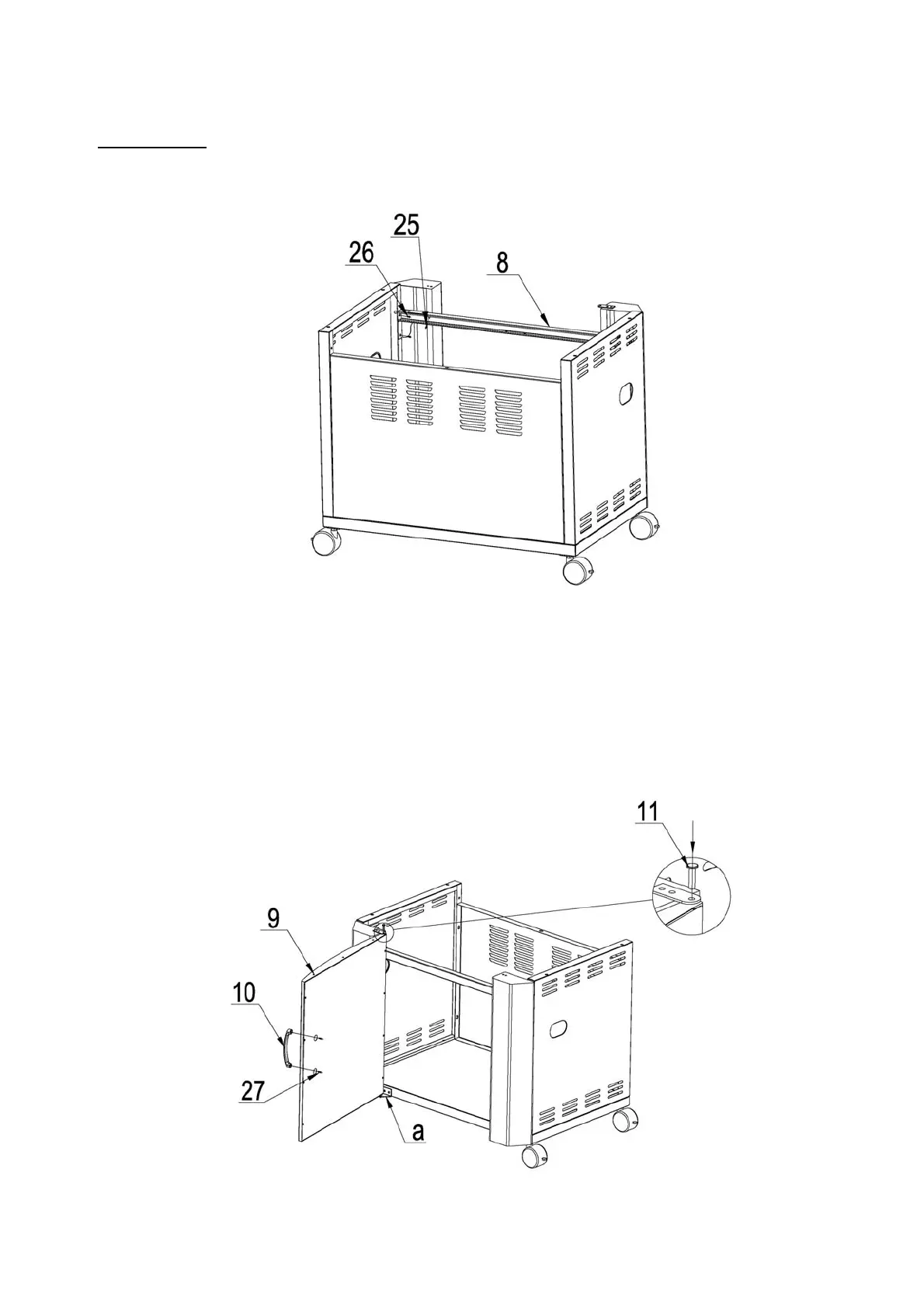

Step 5
Attach the trolley front brace (No.8) to the trolley left & right doorposts (No.6 & 7).
You will need
4×M6×12 screws (No.25)
2×M5×10 screws (No.26)
Step 6
Fit the door (No.9)
a) Put the lower lug of the door into the hole in the base shelf.
Position the door so that the lug at the top of the door is just below the mating hole.
Then, fit the door pin (No.12) into the door as picture below.
b) Using 2× M4× 5 screws (No.27) attach the door handle (No.10) to the door (No.9) as
pictured below.
